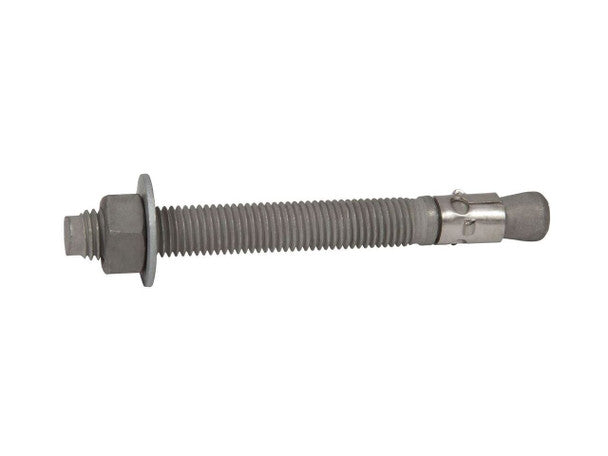

FASTENERS WEDGE-ANCR-3/8X5-HDG

Product Description

The FASTENERS WEDGE-ANCR-3/8X5-HDG is a galvanized wedge anchor that is designed for fastening securely to concrete surfaces. It has a diameter of three eighths of an inch and a length of five inches. This product is well-suited for use in damp environments. It comes complete with a stainless steel clip and includes galvanized nuts and washers for installation. The anchor features a stamped length ID, allowing for easy inspection and verification.

• Anchor diameter is three eighths inch.
• Anchor length is five inches.
• Includes galvanized nuts and washers.

Product Highlights

This wedge anchor is ideal for various concrete applications, providing reliable performance and strength.

Product Information

Standard Information

• Brand: FASTENERS
• MPN: WEDGE-ANCR-3/8X5-HDG

Technical Specifications

• Bit Size: 3/8
• Minimum Embedment: 1-1/2
• Thread Length: 3-3/4
• Thread Type: 3/8 - 16
• Concrete Pull-Out Strength: 1223 lbs
• Concrete Shear Strength: 3238 lbs
• Anchor Type: Male
• Primary Application: Concrete only
• Diameter: 3/8
• Length: 5
• Material: Galvanized
• Environment: Damp
• Box Quantity: 50
• Minimum Spacing: 3-3/4
• Minimum Edge Distance: 1-7/8
• Maximum Fixture Thickness: 3-1/8
• Minimum Fixture Hole Diameter (In Place): 1/2
• Minimum Fixture Hole Diameter (Hole Spotted): 3/8
• Length ID Code: H
• Maximum Torque: 25 - 30 ft./lbs.
• Wrench Size For Nut: 9/16
• Length Measurement: End to End
