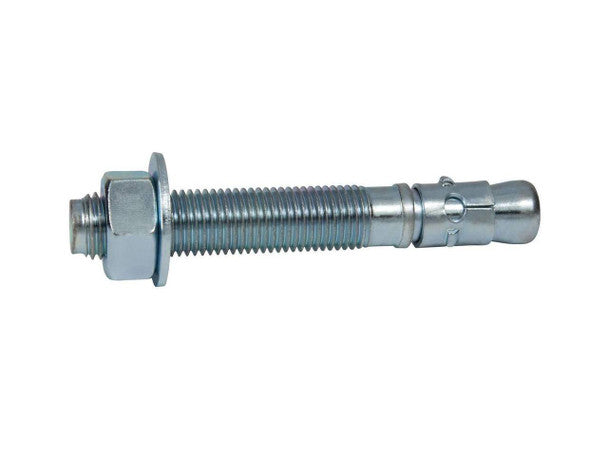

FASTENERS WEDGE-ANCR-3/8X3

Product Description

The FASTENERS WEDGE-ANCR-3/8X3 is a wedge anchor made for concrete applications. It measures three eighths by three inches and has a three eighths-16 thread type. This anchor is essential for securing fixtures in concrete surfaces. Installation requires a three eighths inch bit size. The product comes with nuts and washers to ensure complete fastening capability.

• Designed specifically for concrete use
• Includes nuts and washers for secure installation
• Available in stainless steel for wet settings or zinc plated for dry environments

Product Highlights

This anchor provides reliable fastening in various environments, making it suitable for both indoor and outdoor use.

Product Information

Standard Information

• Primary Application: Concrete only
• Type: Male

Technical Specifications

• Bit Size: 3/8
• Box Quantity: 50
• Minimum Embedment: 1-1/2 inches
• Wrench Size For Nut: 9/16 inches
• Minimum Edge Distance: 1-7/8 inches
• Maximum Fixture Thickness: 1-1/8 inches
• Minimum Fixture Hole Diameter (In Place): 1/2 inches
• Minimum Fixture Hole Diameter (Hole Spotted): 3/8 inches
• Thread Length: 1-3/4 inches
• Pull-Out Strength: 1223 lbs
• Shear Strength: 3238 lbs
• Diameter: 3/8 inches
• Length: 3 inches
• Material: 304 Stainless Steel
• Environment: Wet
