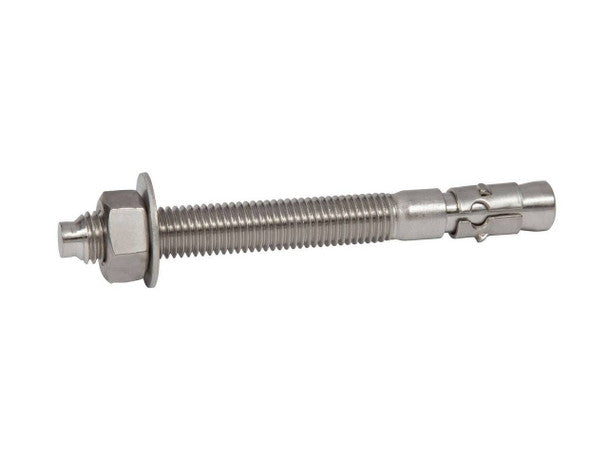

FASTENERS WEDGE-ANCR-1/4X21/4SS304

Product Description

The FASTENERS WEDGE-ANCR-1/4X21/4SS304 is a reliable wedge anchor measuring one quarter by two and one quarter inches. It is made from high-quality 304 stainless steel, making it ideal for wet or submerged conditions. Each package includes the required nuts and washers, ensuring everything needed for installation is provided. The innovative clip design prevents the anchor from spinning during placement, enhancing installation efficiency. The chamfered threaded end reduces the risk of thread damage, promoting durability and longevity.

• Constructed from durable 304 stainless steel
• Clip design prevents spinning during installation
• Chamfered threaded end protects against damage

Product Highlights

This wedge anchor is designed for concrete applications and offers reliable anchoring even in challenging environments.

Product Information

Standard Information

• Material: 304 Stainless Steel
• Application: Concrete only

Technical Specifications

• Bit Size: 1/4
• Box Quantity: 100
• Minimum Embedment: 1-1/8 inches
• Wrench Size: 7/16 inches
• Thread Type: 1/4 - 20
• Minimum Edge Distance: 1-1/4 inches
• Maximum Fixture Thickness: 7/8 inches
• Minimum Fixture Hole Diameter (In Place): 5/16 inches
• Minimum Fixture Hole Diameter (Hole Spotted): 1/4 inches
• Minimum Spacing: 2-1/2 inches
• Maximum Torque: 5 - 10 ft./lbs.
• Thread Length: 1-1/8 inches
• Pull-Out Strength (2000 PSI Concrete): 877 lbs.
• Shear Strength (2000 PSI Concrete): 1082 lbs.
• Diameter: 1/4 inches
• Length: 2-1/4 inches
• Environment: Wet
• Anchor Type: Male
