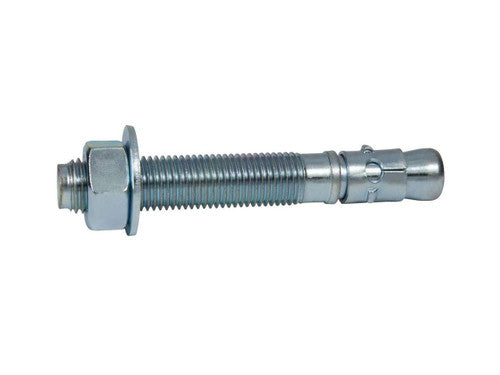

FASTENERS WEDGE-ANCR-1/4X21/4 Wedge Anchor

Product Description

The FASTENERS WEDGE-ANCR-1/4X21/4 is a wedge anchor used for securing items to concrete surfaces. This product features a carbon steel body and an expansion clip, ensuring robust attachment. It is suitable for both normal and lightweight concrete applications. Each anchor is fully threaded and comes with zinc-plated nuts and washers to facilitate installation. The anchor is designed with a pilot end to promote easier installation and prevent damage to the first thread.

• Designed for fastening items to concrete.
• Features a carbon steel body and expansion clip.
• Includes zinc-plated nuts and washers.

Product Highlights

Product Information

Standard Information

• Brand: FASTENERS
• MPN: WEDGE-ANCR-1/4X21/4

Technical Specifications

• Anchor Type: Wedge
• Size: 1/4 inch x 2-1/4 inches
• Anchor Diameter: 1/4 inch
• Anchor Length: 2-1/4 inches
• Thread Type: UNC
• Thread Length: 1-1/4 inches
• Thread Per Inch: 20
• Material: Carbon Steel
• Finish: Zinc Plated
• Included: Washer & Nut
• Box Quantity: 100
• Pre-Drill Size: 1/4 inch
• Minimum Embedment Depth: 1-3/4 inches
• Applications: Normal and Lightweight Concrete, Seismic Zones, Crack and Uncracked Concrete
• Bit Size: 1/4 inch
• Minimum Embedment: 1-1/8 inches
• Primary: Concrete only
• Minimum Spacing: 2-1/2 inches
• Minimum Edge Distance: 1-1/4 inches
• Maximum Fixture Thickness: 7/8 inches
• Minimum Fixture Hole Diameter (In Place): 5/16 inch
• Minimum Fixture Hole Diameter (Hole Spotted): 1/4 inch
• Length ID Code: B
• Maximum Torque: 5 - 10 ft./lbs.
• Wrench Size For Nut: 7/16 inch
• Length Measurement: End to End
