FASTENERS WEDGE-ANCR-1/2X33/4

Product Description

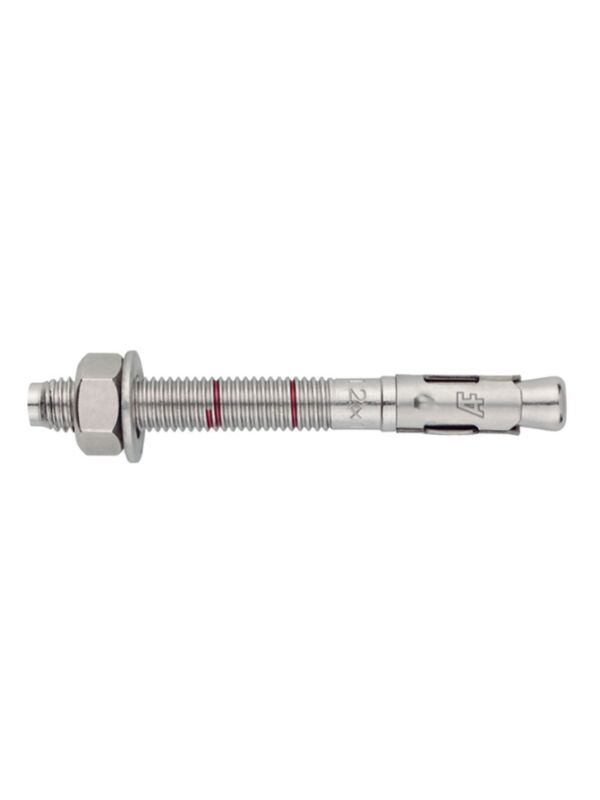

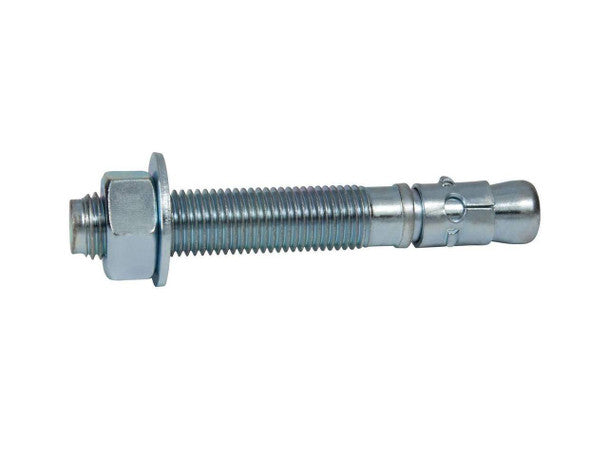

The FASTENERS WEDGE-ANCR-1/2X33/4 is a wedge anchor made for heavy-duty fastening in concrete. This anchor provides high pull-out strength and resists vibratory loads. It is offered in stainless steel and zinc-plated carbon steel options and is intended for use in various applications.

• Designed for concrete applications.
• Includes nuts and washers for installation.
• High pull-out strength.

Product Highlights

This wedge anchor is effective for secure anchoring in concrete, capable of withstanding significant pull-out forces.

Product Information

Standard Information

• Brand: FASTENERS
• MPN: WEDGE-ANCR-1/2X33/4

Technical Specifications

• Anchor Size: 1/2
• Length: 3-3/4
• Material: Carbon Steel Zinc Plated
• Drill Size: 1-1/8
• Pack Quantity: 25
• Minimum Embedment: 2-1/4
• Wrench Size For Nut: 3/4
• Primary: Concrete only
• Thread Type: 1/2 - 13
• Minimum Edge Distance: 2-1/2
• Maximum Fixture Thickness: 1
• Minimum Fixture Hole Diameter (In Place): 5/8
• Minimum Fixture Hole Diameter (Hole Spotted): 1/2
• Length ID Code: D
• Minimum Spacing: 5
• Maximum Torque: 50 - 60 ft./lbs.
• Thread Length: 2-1/4
• Concrete Pull-Out (lbs.): 2999
• Concrete Shear (lbs.): 5564
• Length Measurement: End to End
• Diameter: 1/2
• Environment: Dry
• Type: Male
