FASTENERS WEDGE-ANCR-1/2X23/4

Product Description

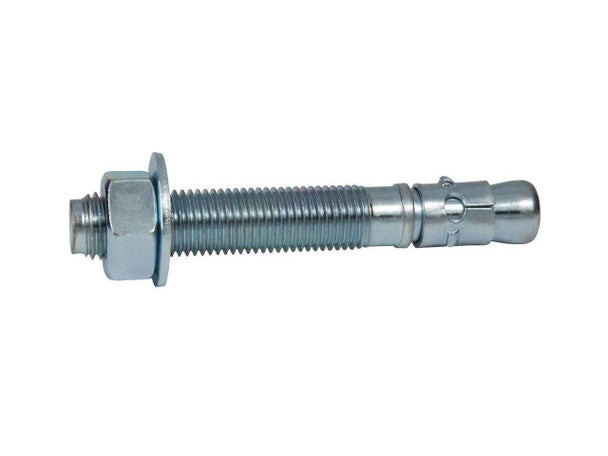

The FASTENERS WEDGE-ANCR-1/2X23/4 is a wedge anchor designed specifically for fastening to concrete. This anchor features a diameter of half an inch and a length of two and three-fourths inches. Constructed from carbon steel with a zinc plating, it is suitable for dry environments. Each package includes nuts and washers for easy installation. A box contains twenty-five pieces.

• Designed for fastening items to concrete.
• Zinc plated for use in dry environments.
• Packaged with nuts and washers included.

Product Highlights

This anchor is perfect for securing fixtures to concrete surfaces, ensuring a strong hold for various applications.

Product Information

Standard Information

• Application: Concrete only
• Diameter: 1/2 inches
• Length: 2-3/4 inches
• Material: Carbon Steel Zinc Plated
• Environment: Dry

Technical Specifications

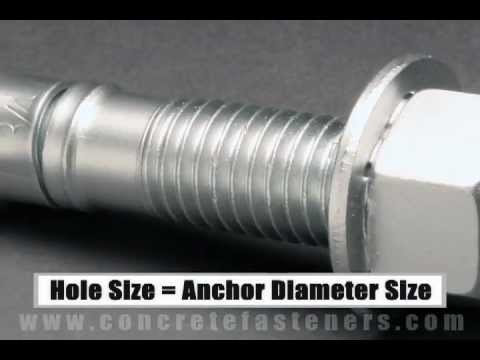

• Bit Size: 1/2
• Box Quantity: 25
• Minimum Embedment: 2-1/4
• Wrench Size For Nut: 3/4
• Thread Type: 1/2 - 13
• Minimum Edge Distance: 2-1/2
• Maximum Fixture Thickness: 1/8
• Minimum Fixture Hole Diameter (In Place): 5/8
• Minimum Fixture Hole Diameter (Hole Spotted): 1/2
• Length ID Code: C
• Minimum Spacing: 5
• Maximum Torque: 50 - 60 ft./lbs.
• Thread Length: 1-1/4
• Pull-Out (lbs.): 2999 at 2000 PSI Concrete
• Shear (lbs.): 5564 at 2000 PSI Concrete
