FASTENERS HH-CAP-SCR-1/2-13X1-3/4-G-8

Product Description

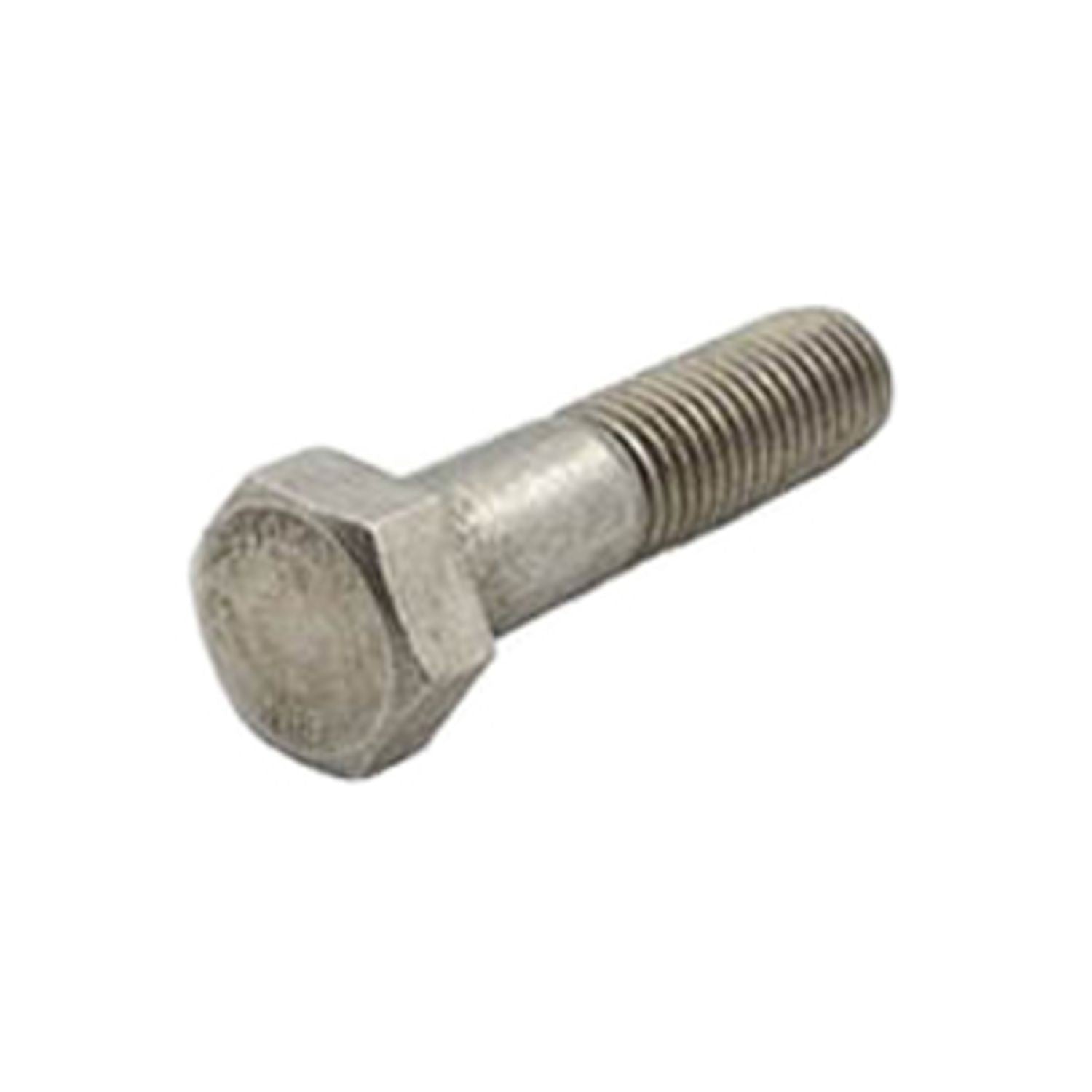

The FASTENERS HH-CAP-SCR-1/2-13X1-3/4-G-8 is a hex cap screw suitable for easy assembly into tapped holes. It meets SAE specifications and includes a washer face under the head along with a chamfered point for effective engagement.

• Designed for easy assembly into a tapped hole.
• Meets SAE specifications with a specially designed washer face and chamfered point.
• Ideal for high-strength, high-stress applications.

Product Highlights

This hex cap screw offers superior performance in demanding environments due to its Grade 8 tensile strength, making it a reliable choice for construction and industrial use.

Product Information

Standard Information

• Brand: FASTENERS
• MPN: HH-CAP-SCR-1/2-13X1-3/4-G-8

Technical Specifications

• System of Measurement: Imperial (Inch)
• Material: Steel
• Type: Hex Cap Screw
• Diameter/Thread Size: 1/2-13
• Length: 1-3/4
• Grade: SAE Grade 8
• Finish: Plain
• Thread Type: Coarse
• Thread Style: Full Thread
• Standards: ASME B18.2.1, SAE J429
• Wrench Size: 3/4
• Tensile Strength: 150,000 psi
• Head Height: 0.302 - 0.323
• With Nut / Without Nut: Without Nut
• Head Width: 0.736 - 0.750
