FASTENERS HH-CAP-SCR-1/2-13X1-1/4-G-8

Product Description

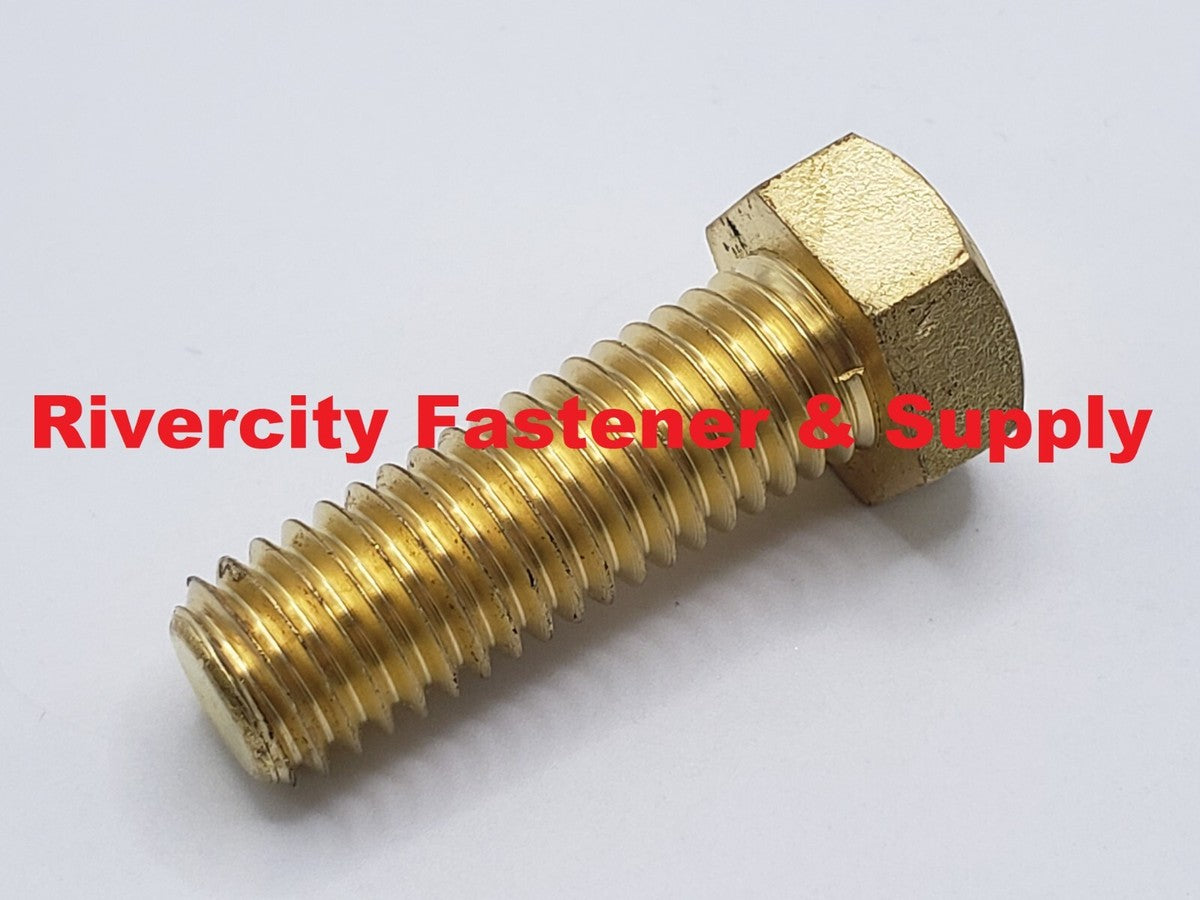

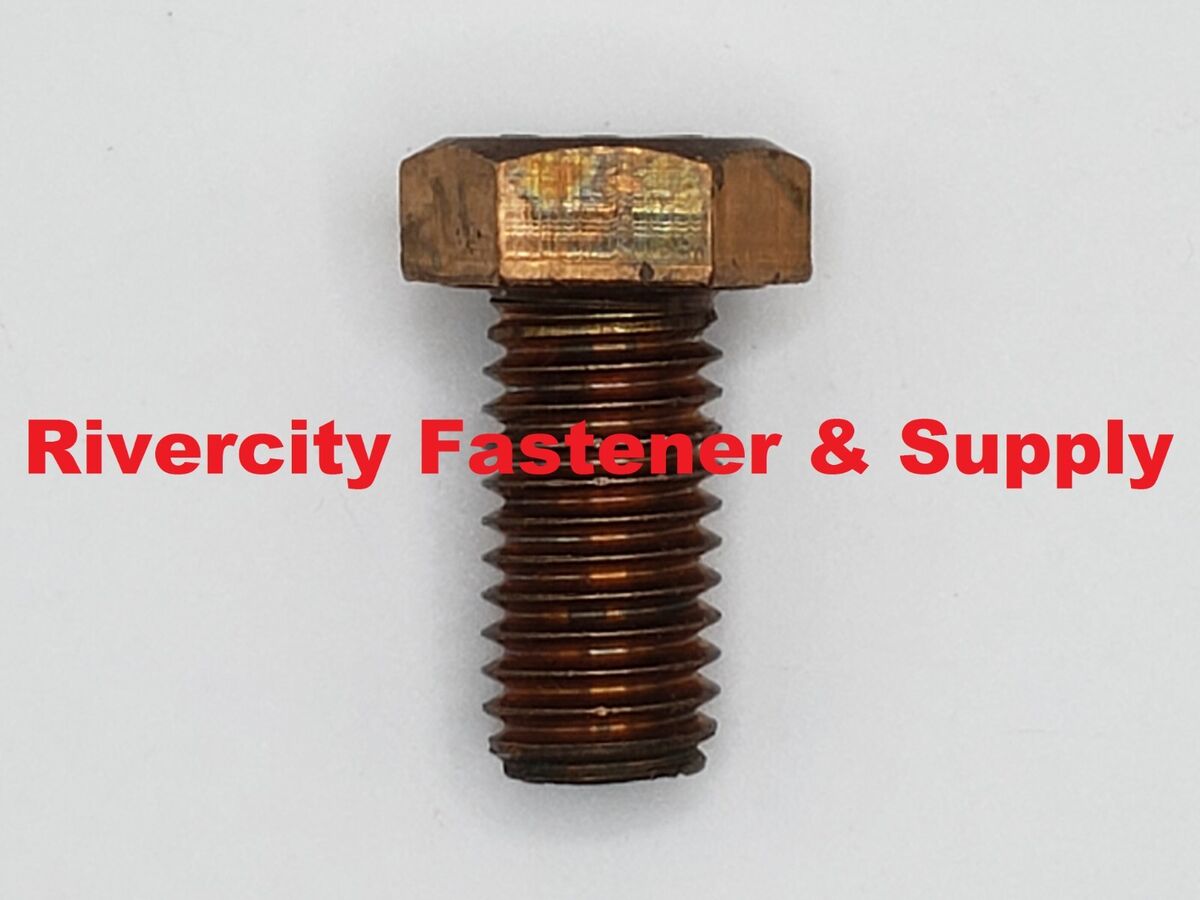

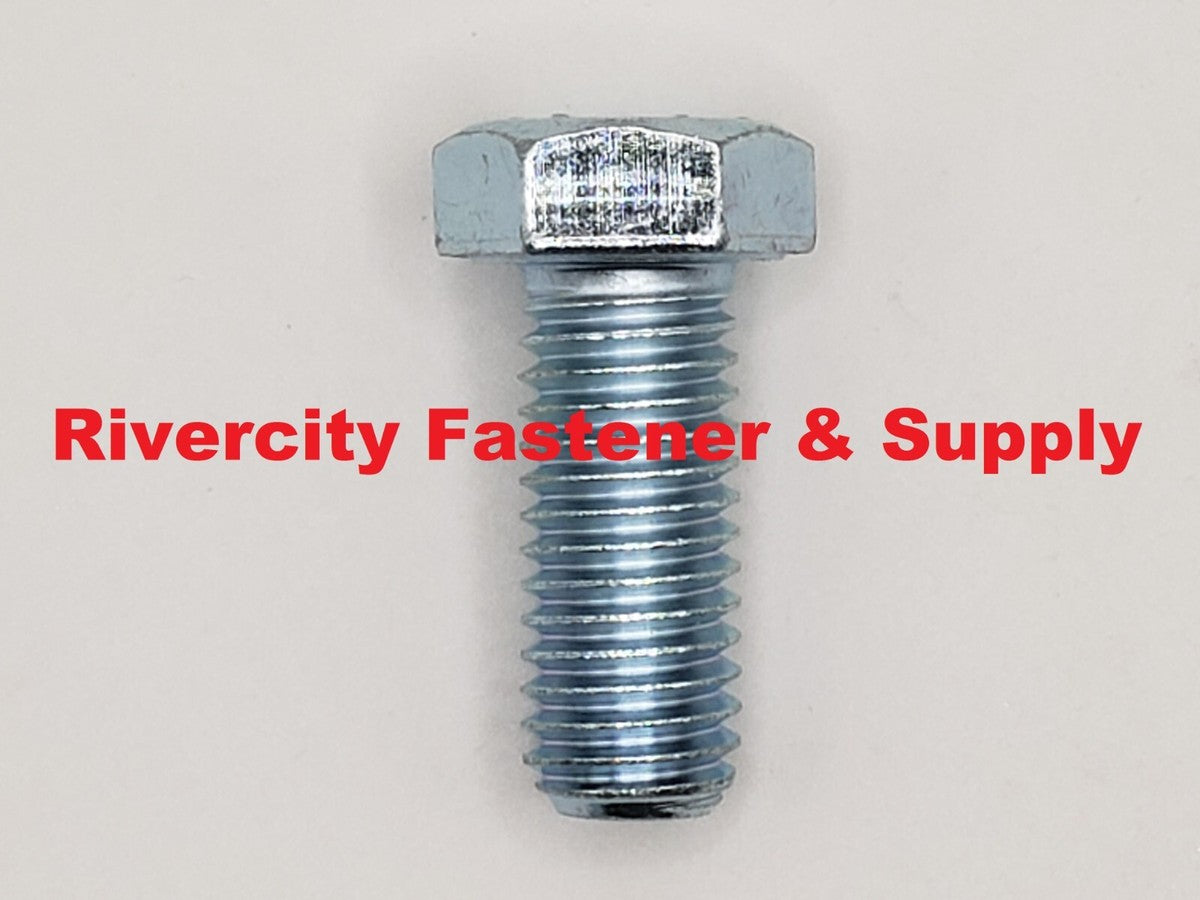

The FASTENERS HH-CAP-SCR-1/2-13X1-1/4-G-8 is a hex head cap screw made for easy installation in tapped holes. This product adheres to SAE specifications and is built with a washer face under the head and a chamfered point for efficiency. Being Grade 8, it boasts higher tensile strength compared to Grade 5, making it ideal for applications requiring high strength and resistance to stress.

• Designed for easy assembly into a tapped hole.
• Suitable for high-strength and high-stress applications.
• Plain finish with light oil coating for corrosion resistance.

Product Highlights

This hex head cap screw meets industry standards, ensuring a reliable connection in various projects.

Product Information

Standard Information

• Brand: FASTENERS
• MPN: HH-CAP-SCR-1/2-13X1-1/4-G-8

Technical Specifications

• System of Measurement: Imperial (Inch)
• Material: Steel
• Type: Hex Cap Screw
• Dia/Thread Size: 1/2-13
• Length: 1-1/4
• Grade: SAE Grade 8
• Finish: Plain
• Thread Type: Coarse
• Thread Style: Full Thread
• Standards: ASME B18.2.1, SAE J429
• Wrench Size: 3/4
• Tensile Strength: 150,000 psi
• Head Height: 0.302 - 0.323
• With Nut / Without Nut: Without Nut
• Head Width: 0.736 - 0.750
