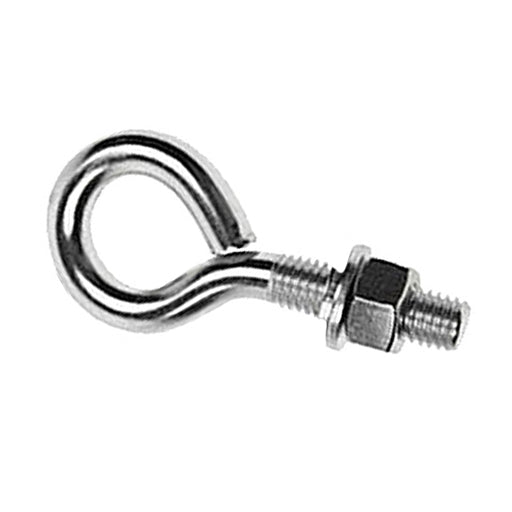

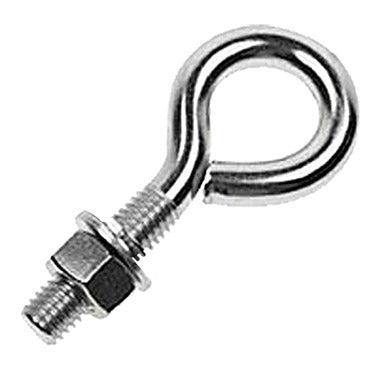

FASTENERS EYE-BLT-1/4X2 Eye Bolt

Product Description

The FASTENERS EYE-BLT-1/4X2 is an eye bolt made from stainless steel. This item includes a nut and washer for secure fastening. It is suitable for straight line pulls and complies with ASTM F541 and ASME B18.15 standards.

• Material: Stainless Steel
• Includes nut and washer
• Designed for straight line pulls

Product Highlights

This eye bolt provides a reliable anchor point for various applications, ensuring strong performance and durability.

Product Information

Standard Information

• Manufacturer Part #: SSN142
• Shank Length: 2 inches

Technical Specifications

• Material: Stainless Steel
• Bolt Diameter: 1/4 inches
• Thread: Coarse
• Grade: 304 / 18-8 / A2
• Style: Plain Pattern
• Eye Diameter - Inside: 1/2 inches
• Eye Diameter - Outside: 1 inches
• Thread Style: Partially Threaded
• Thread Length: 1-1/2 inches
• Finish: Polished
• Assembly Break Strength: 800 lbs
• Working Load Limit: 200 lbs
• Overall Length: 2.95 inches
• Product Weight: 0.01 lbs
• Safety Factor: 4:1
• Overall Width: 0.93 inches
