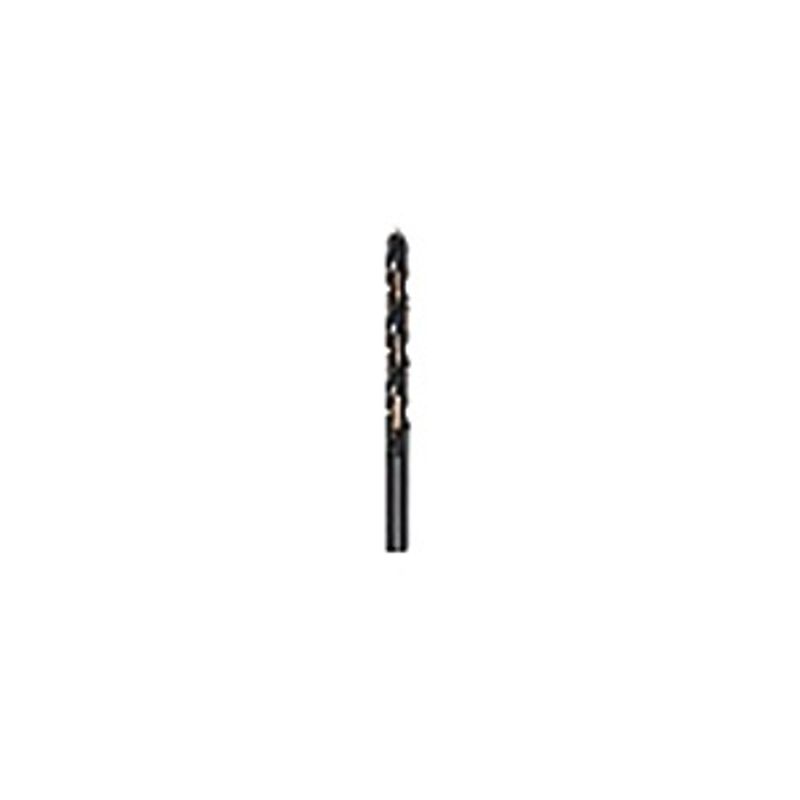

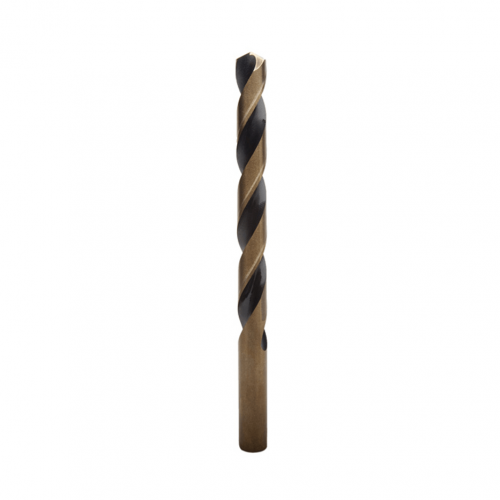

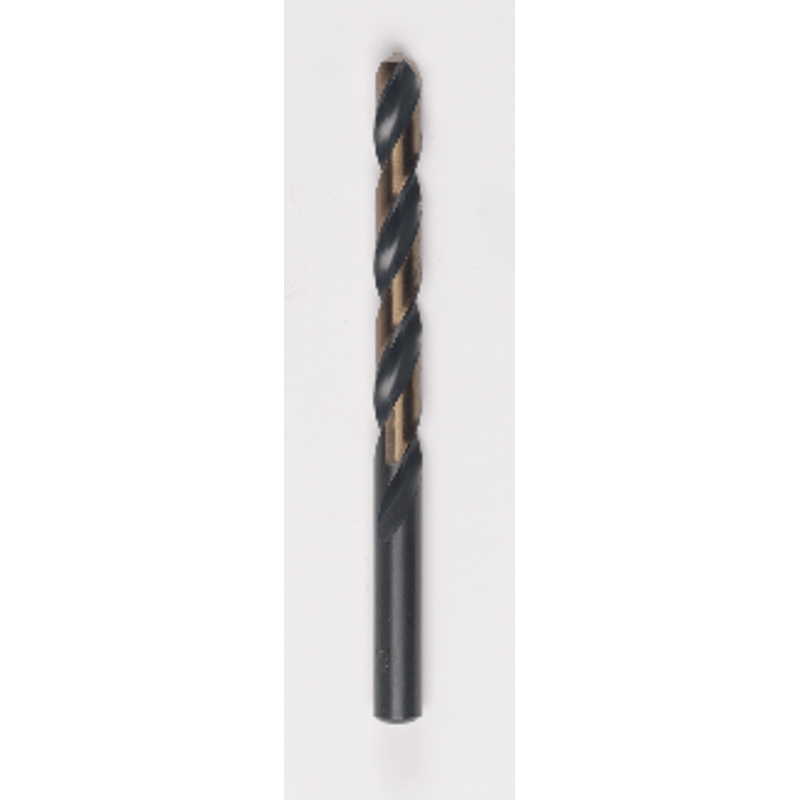

FASTENERS 13/64HIGHSPEEDDRILLBIT High Speed Steel Drill Bit

Product Description

The FASTENERS 13/64HIGHSPEEDDRILLBIT is a high-speed steel drill bit suitable for various materials such as soft steels, aluminum, iron, stainless steel, wood, and plastic. It is ideal for those needing durability and precision in their drilling tasks.

• Constructed from M2 high-speed steel
• Features a split point tip for fast penetration
• Compatible with standard tool holding systems

Product Highlights

Designed for efficient drilling, this drill bit offers quick penetration and accuracy, making it suitable for a range of projects.

Product Information

Standard Information

• Manufacturer Part Number: T1D1364
• Brand Name: Peco Fasteners

Technical Specifications

• Material: High Speed Steel
• Drill Size: 0.2031 inches (13/64)
• Shank Type: Straight Shank
• Finish: Black Oxide
• Flute Length: 2-7/16 inches
• Overall Length: 3-5/8 inches
• Style: Jobber
• Cutting Angle: 135 degrees
• Point Type: Split Point
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Decimal Equivalent: 0.2031
• Metric Equivalent: 5.15874 mm
• Point Angle: 135 Degrees
• For Use With: Low Tensile Strength Alloy, Stainless Steel
• Commodity Code: 66150
• RoHS Indicator: C
• Weight: 0.023 lbs
• Product Type: HSS Drill Bit
• Diameter: 13/64 inches
• Cutting Height: 1-5/8 inches
