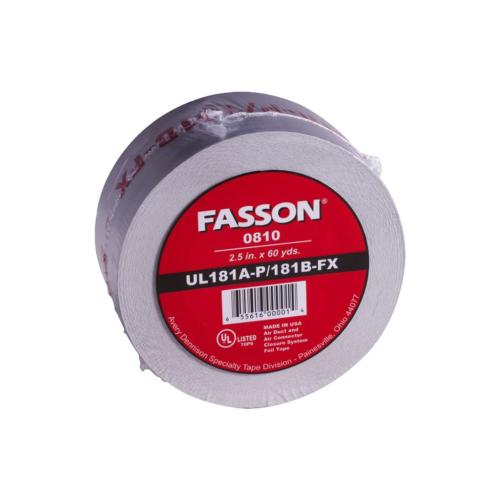

Fasson 87412 03000180 Fasson 0810 3.0 inches x 60 Yards UL 181 A-P / B-FX Aluminum Foil Tape

Product Description

The FASSON 87412 03000180 Fasson 0810 is a high tensile aluminum foil tape with an antimicrobial acrylic adhesive, registered as UL 181 A-P / B-Fx. This tape is designed for HVAC mechanical installation to seal aluminum duct work and FSK board. It meets SMACNA performance standard AFTS 101-73PSA and complies with SCAQMD Rule 1168.

• Features a specially formulated antimicrobial acrylic adhesive.
• Offers high tensile strength aluminum foil facestock.
• Used to seal joints and seams on fiberglass duct board and flexible duct in the HVAC market.

Product Highlights

This aluminum foil tape is ideal for HVAC applications, providing a reliable seal for duct work and FSK boards, and is UL 181 A-P /B-Fx classified.

Product Information

Standard Information

• Brand: FASSON
• Manufacturer Part Number: 87412 03000180
• Country of Origin: USA

Technical Specifications

• Adhesion Strength: 3.8 lbs/in
• Application Temperature: 50°F (10°C)
• Brand: Fasson
• Composition: 2 Mil Aluminum Foil
• EAN: 0655616000021
• Maximum Temperature: 400°F (204.44°C)
• Performance Temperature: 350°F (176.67°C)
• Prop 65: No
• Size: 3" x 180'
• Storage Temperature: 64°F to 72°F (17.78°C to 22.22°C)
• Tensile Strength: 27 lbf/in
• Thickness: 7.20 mil
• Type: Foil
• UL Listed: Yes
• UL Recognized: No
• UOM: RL
• UPC: 655616000021
• UV Resistant: Yes
• Country of Origin: USA
• Roll Width: 3"
• URI Part Number: 0810-3
• Vendor Part Number: 87412 03000180
• Roll Length (yd): 60.0
• Material: Soft Matte Aluminum Foil (Carrier), Acrylic (Adhesive), Densified Kraft (Liner)
• Temperature Rating: 350 Deg F (Continuous), 400 Deg F (Intermittent)
• Application: HVAC System
• Applicable Standard: UL 723, UL 181 A-P/B-FX, SMACNA, SCAQMD
