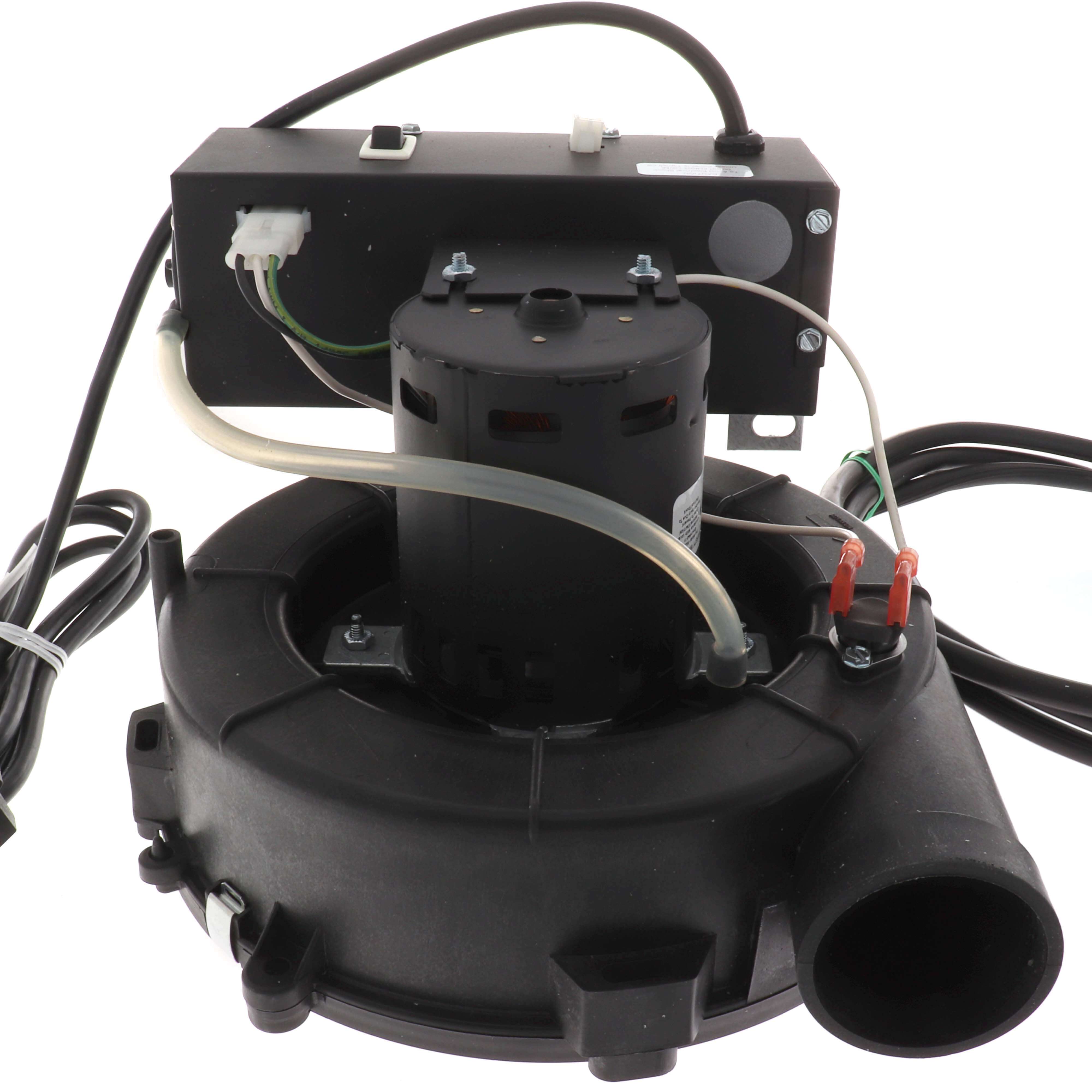

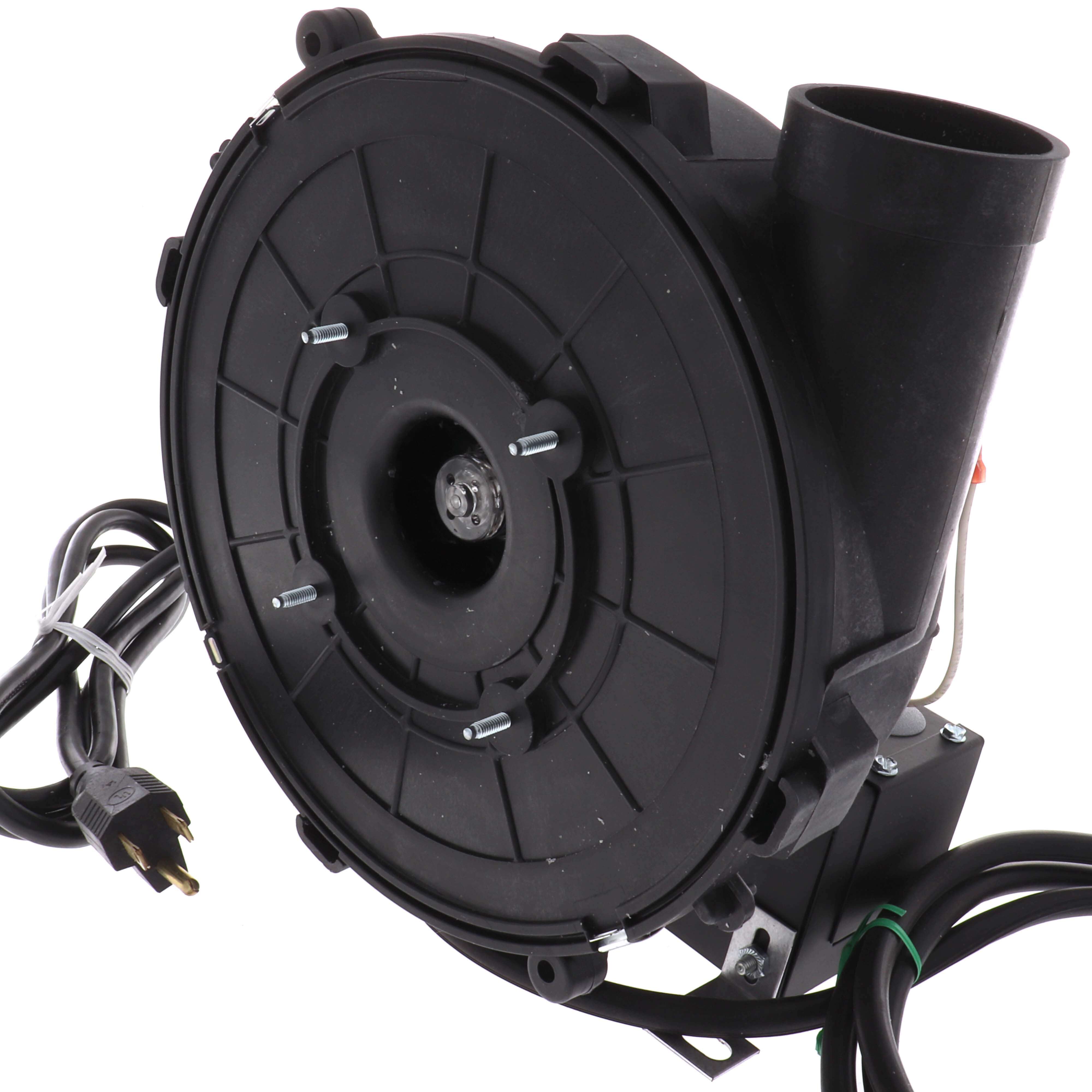

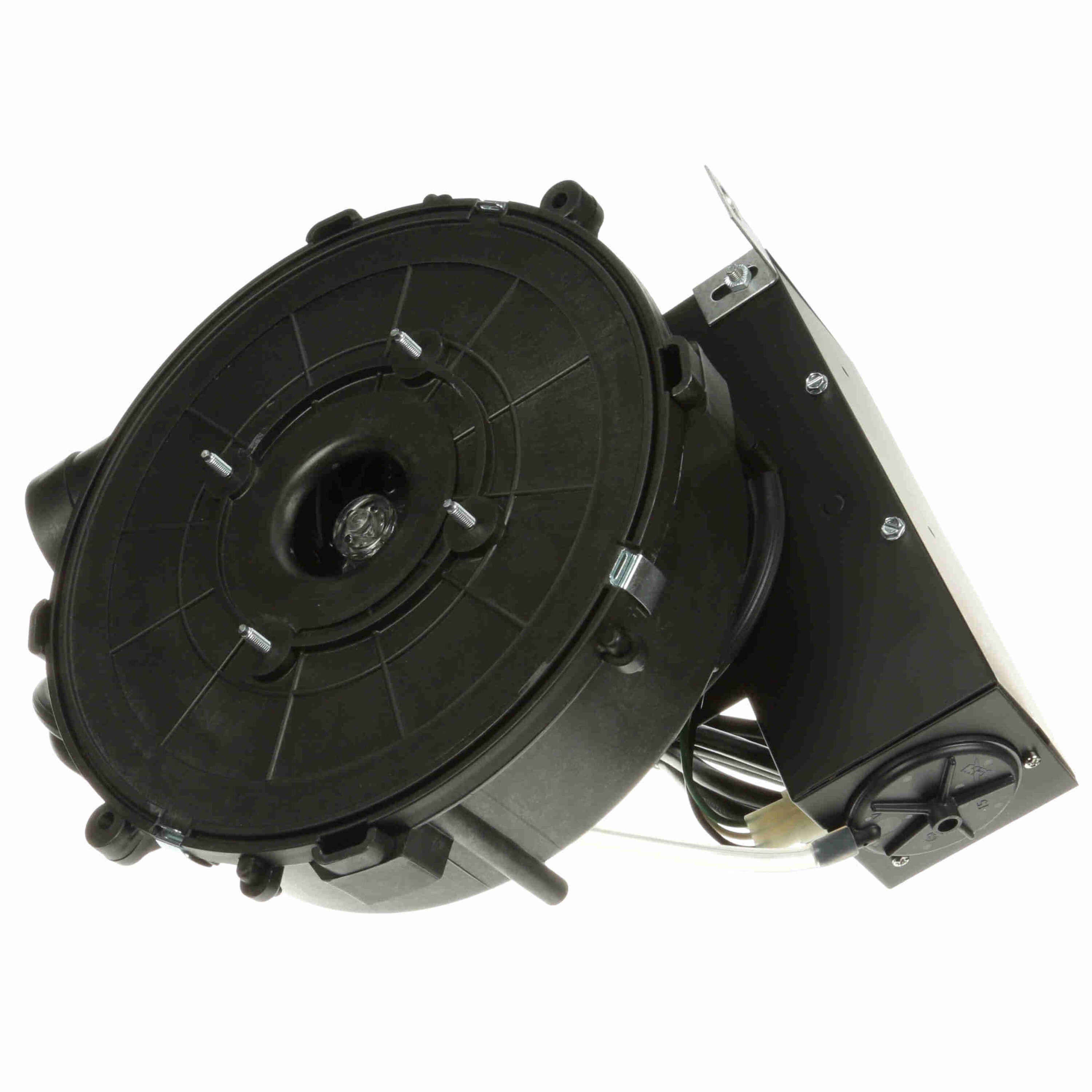

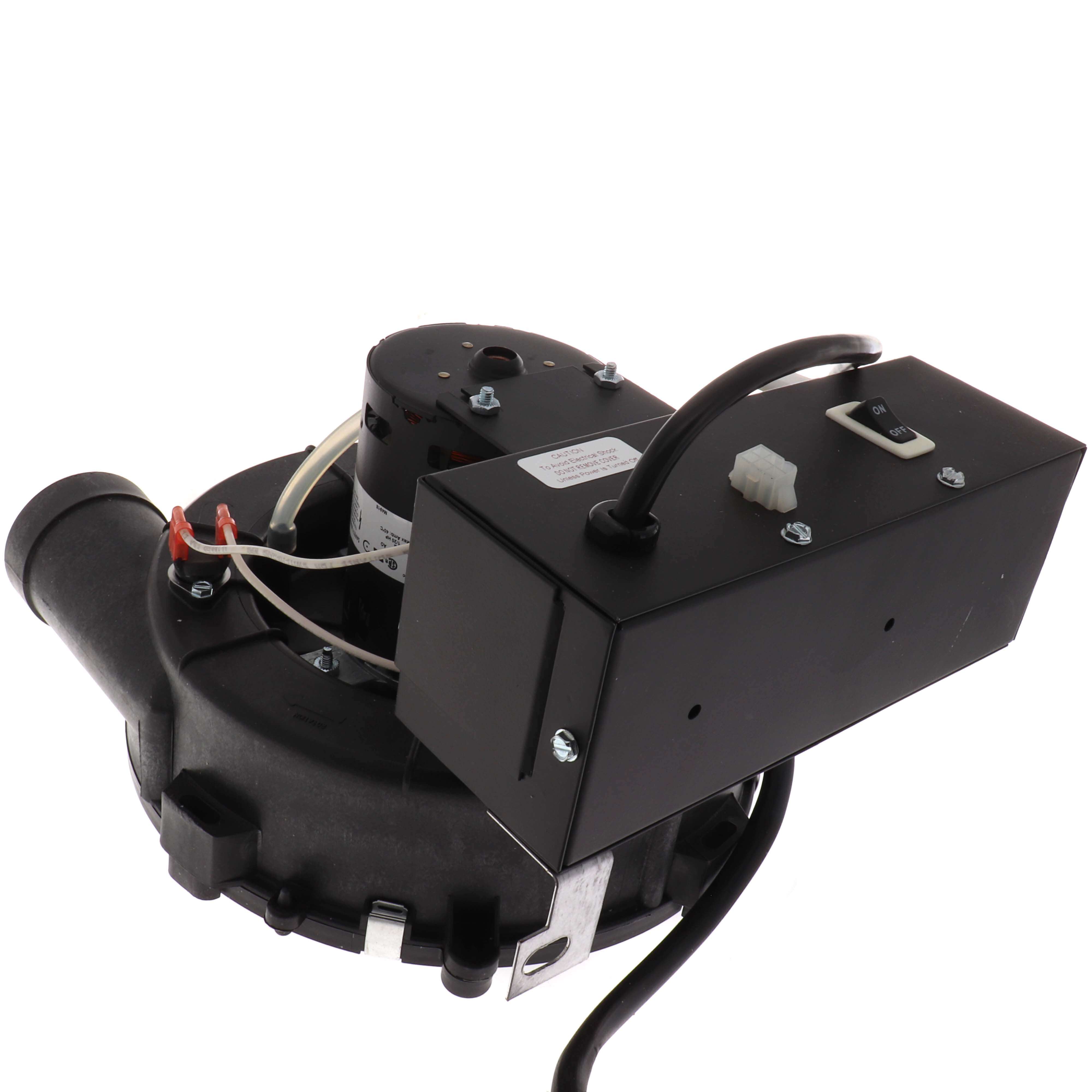

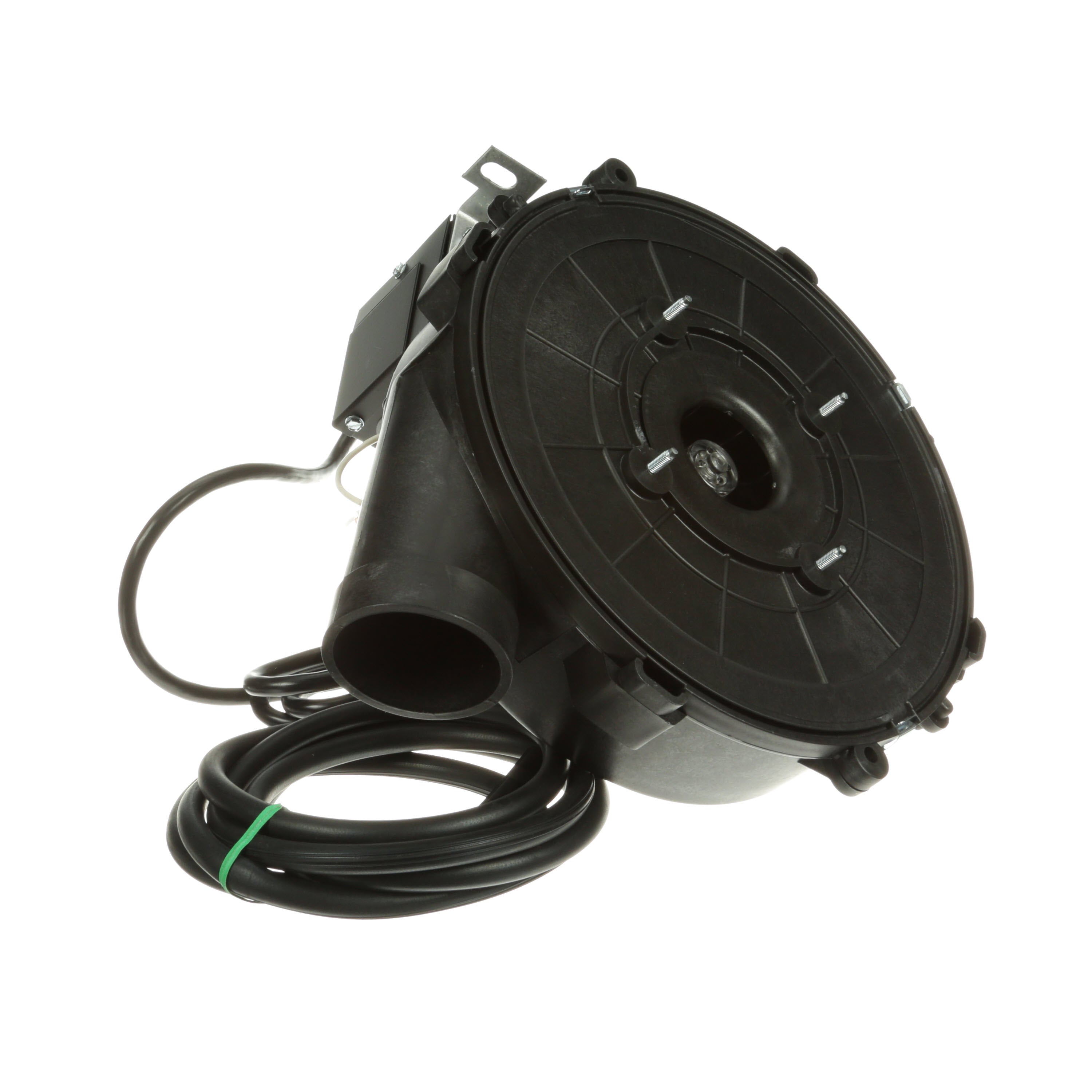

Fasco W4 water heater draft inducer 1/20 HP 3.3 inch frame replaces AO Smith 7021-10910, 183381-000

Product Description

The FASCO W4 is a water heater draft inducer motor designed for efficient operation. This 1/20 HP shaded pole motor operates at 115 Volts and 3400 RPM, drawing 1.8 Amps. It features thermal protection and is UL recognized and CSA certified, ensuring safety and compliance. Ideal for AO Smith OEM replacement applications, this motor provides reliable performance for water heater systems, ensuring proper ventilation and combustion.

• Draft inducer water heater motor with sleeve bearing
• Thermally protected with UL recognized and CSA certified
• Counterclockwise shaft end rotation and 3400 RPM speed

Product Highlights

OEM replacement draft inducer motor for water heaters, featuring 1/20 HP, 115V, and 3400 RPM.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: W4
• Country of Origin: Mexico

Technical Specifications

• Speed: 3400 RPM
• Voltage: 115 Volts
• Product Type: ELECTRIC_MOTOR
• Frame Size: 3.3 inches
• Motor Type: Shaded Pole
• Application: AO Smith OEM Replacement Water Heater Draft Inducer Motor
• Bearing Type: Sleeve Bearings
• Horsepower: 1/20 HP
• Frequency: 60 Hz
• Amperage: 1.8 amps
• Rotation: Counterclockwise shaft end
• Protection: Thermally protected
• Certifications: UL recognized; CSA certified
• Enclosure Type: OAO
• Phase: Single
• Material: Rolled Steel
• Mounting Type: Special
• Shaft Type: Single
• Number of Speeds: 1
• Outlet Shape: Round
• Outlet Flange: No
• Insulation Class: B
• Max Ambient Temperature: 104°F
