Fasco UB595 Unit Bearing Motor 6 W

Product Description

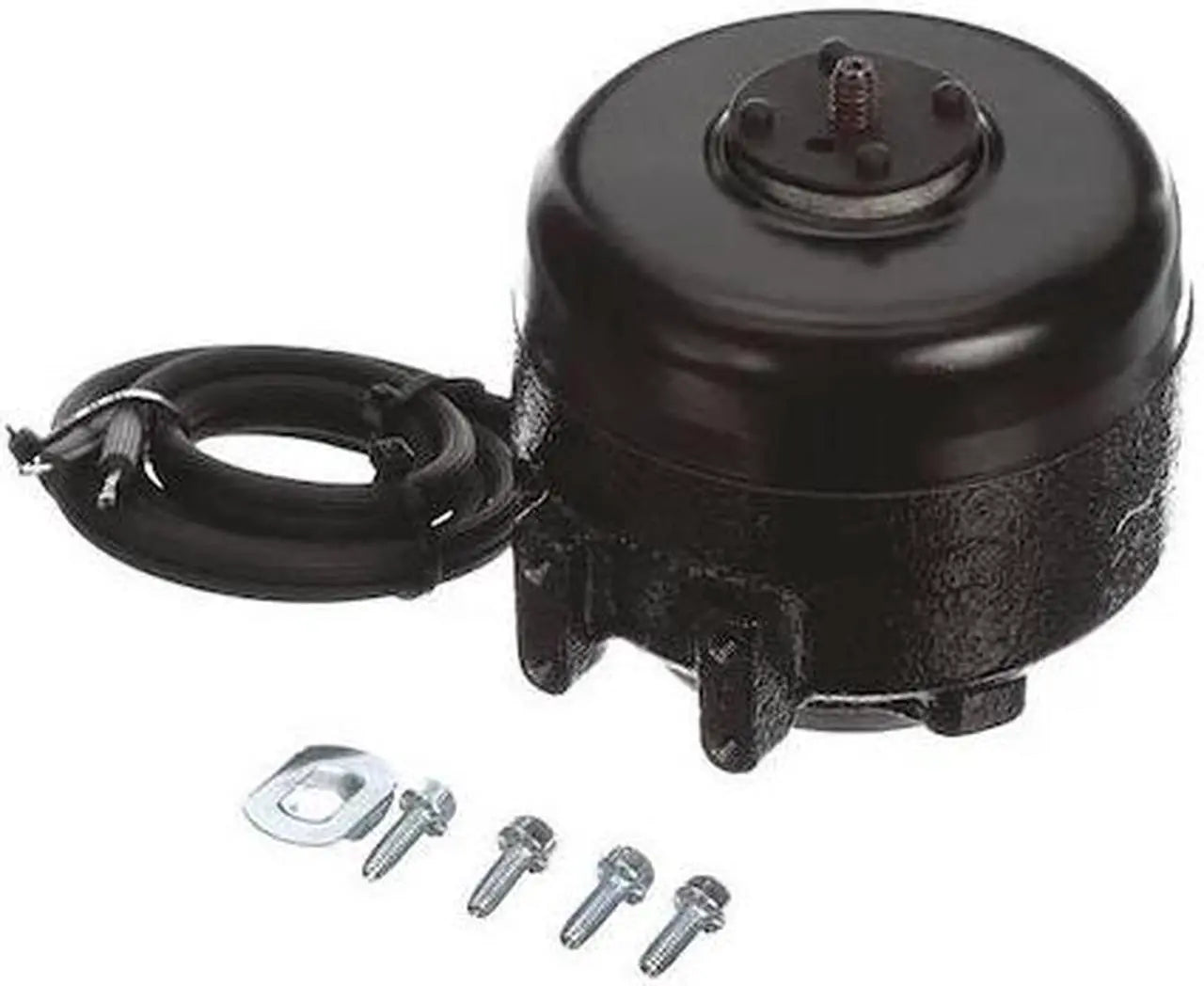

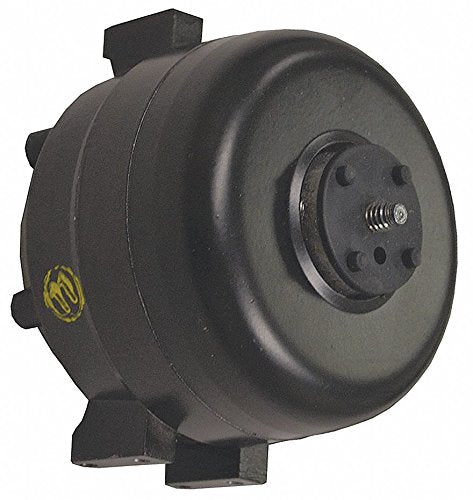

The FASCO UB595 motor is a unit bearing motor. This single-phase, shaded pole motor operates at 115V AC and 1550 RPM with 6 W output. Designed with a totally enclosed air-over enclosure and impedance thermal protection, it is suitable for HVAC/R and refrigeration applications. The motor features continuous duty cycle and can be mounted in any position.

• Single Phase
• Shaded Pole motor design
• Totally Enclosed Air-Over

Product Highlights

The FASCO UB595 is a 6W unit bearing motor with a shaded pole design, ideal for HVAC/R applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: UB595
• Country of Origin: China

Technical Specifications

• MPN: UB595
• Brand: FASCO
• Motor Design: Shaded Pole
• HP: 1/150
• Nameplate RPM: 1550
• No. of Speeds: 1
• Voltage: 115V AC
• Full Load Amps: 0.36
• Frame: Non-Standard
• Output Watts: 6 W
• Frequency: 60 Hz
• Usable @ 208V: No
• Usable @ 200V: No
• Motor Service Factor: 1
• Motor Thermal Protection: Impedance
• Ins. Class: B
• Duty Cycle: Continuous
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Rotation: CCWLE
• Motor Enclosure Design: Totally Enclosed Air-Over
• Motor Mounting Type: Rear/Double Foot
• Phase: Single Phase
• Item: Unit Bearing Motor
• Hz: 60
• Features: Totally Enclosed Air Over
• Includes: Speed Nut and Screw
• Body Dia.: 3 7/16 in
• RPM Range: 1,401-1,500
• Standards: UL and CSA
• Shaft Dia.: 1/4 in
• Lead Length: 28 in
• Shaft Length: 7/16 in
• Stud Quantity: 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
• Frame Material: Cast Iron
• Overall Length: 3 3/8 in
• Bolt Circle Dia.: 2 13/16 in
• Length Less Shaft: 2 13/16 in
• Motor Application: HVAC/R
• Motor Shaft Design: Threaded
• Motor Mounting Position: All Angle
• Motor Frame Material: Cast Iron
• Mounting Stud Length: 3/8 in
• Motor Sub Application: Refrigerator/Freezer
• Mounting Stud Pattern: 1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
• Voltage Compatibility: 115V AC
• Drive End Bearing: Unit
• Opp Drive End Bearing: Unit
• Shaft Type: Threaded
• Frame Length: 3.12 in
• Shaft Diameter: 1/4x20 in
• Shaft Extension: .415 in
• Current: 0.36 A
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Impedance
• Ambient Temperature: 40 °C
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Rotation: Counterclockwise Opposite Shaft End
• Mounting: 2 BOSS/OSE 3 HOLES
• Compatible Brand: FASCO
• Model: UB595
