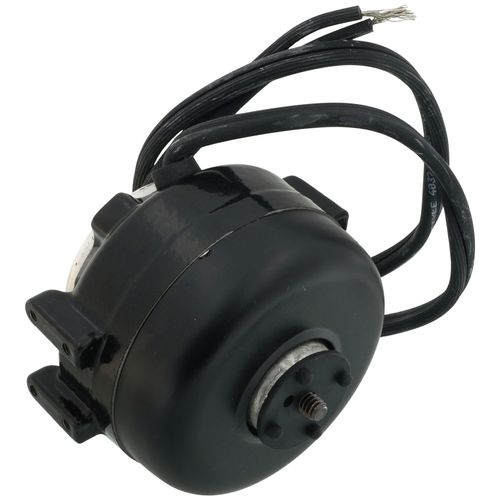

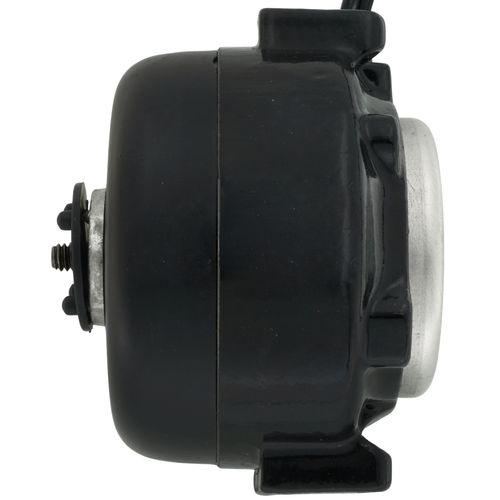

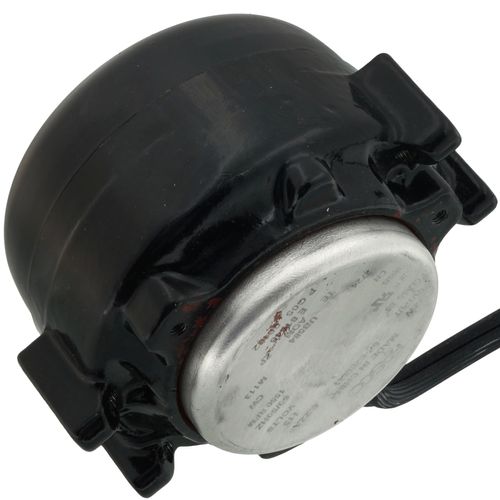

FASCO UB584 Unit Bearing Fan Motor 2 Watt (115V)

Product Description

The FASCO UB584 is a unit bearing fan motor designed for HVAC/R applications. This motor operates at two watts and is rated for one hundred fifteen volts. It effectively supports cooling functions in systems like refrigerators and freezers.

• Continuous duty cycle for reliable operation
• Vibration dampening hub for reduced noise

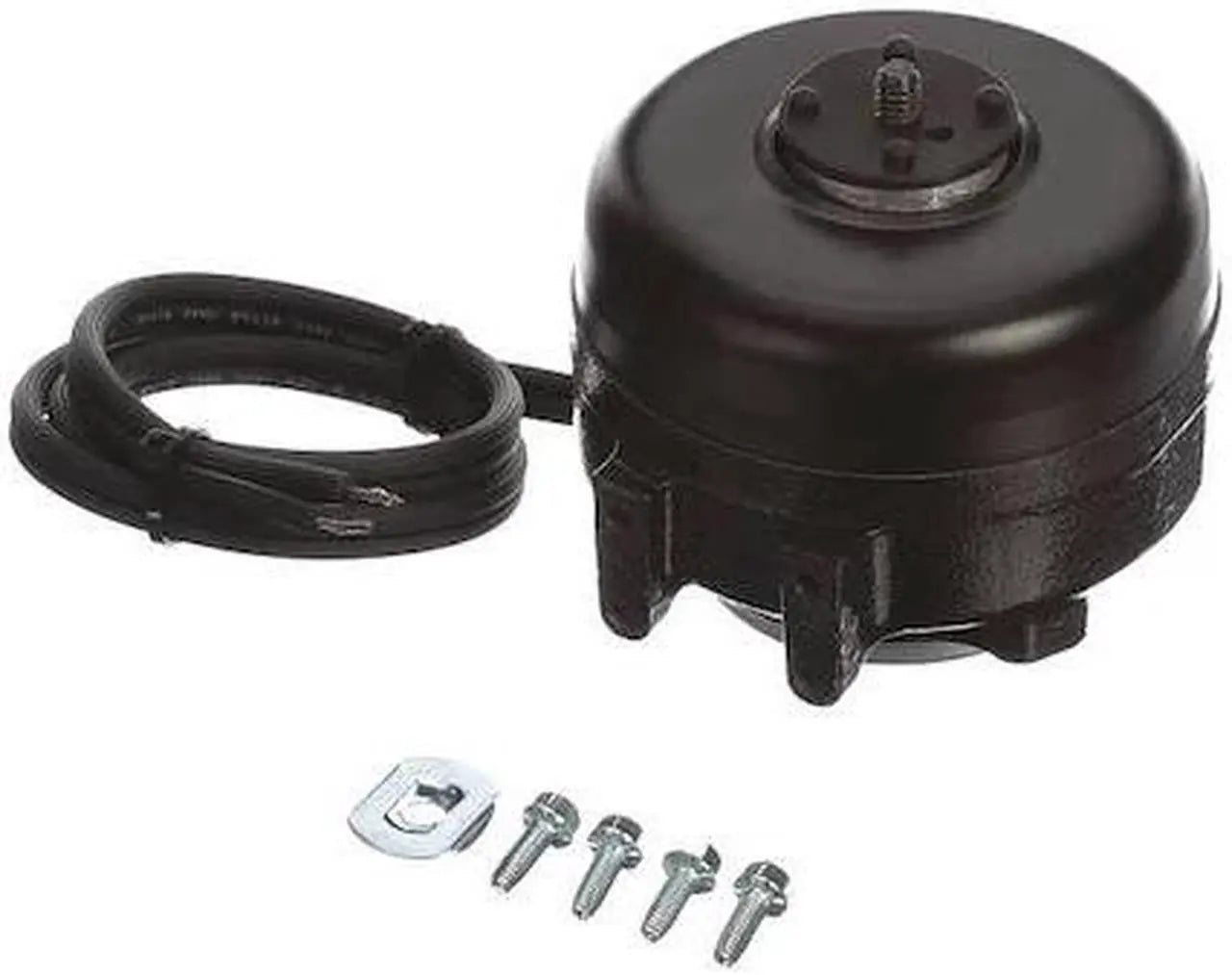

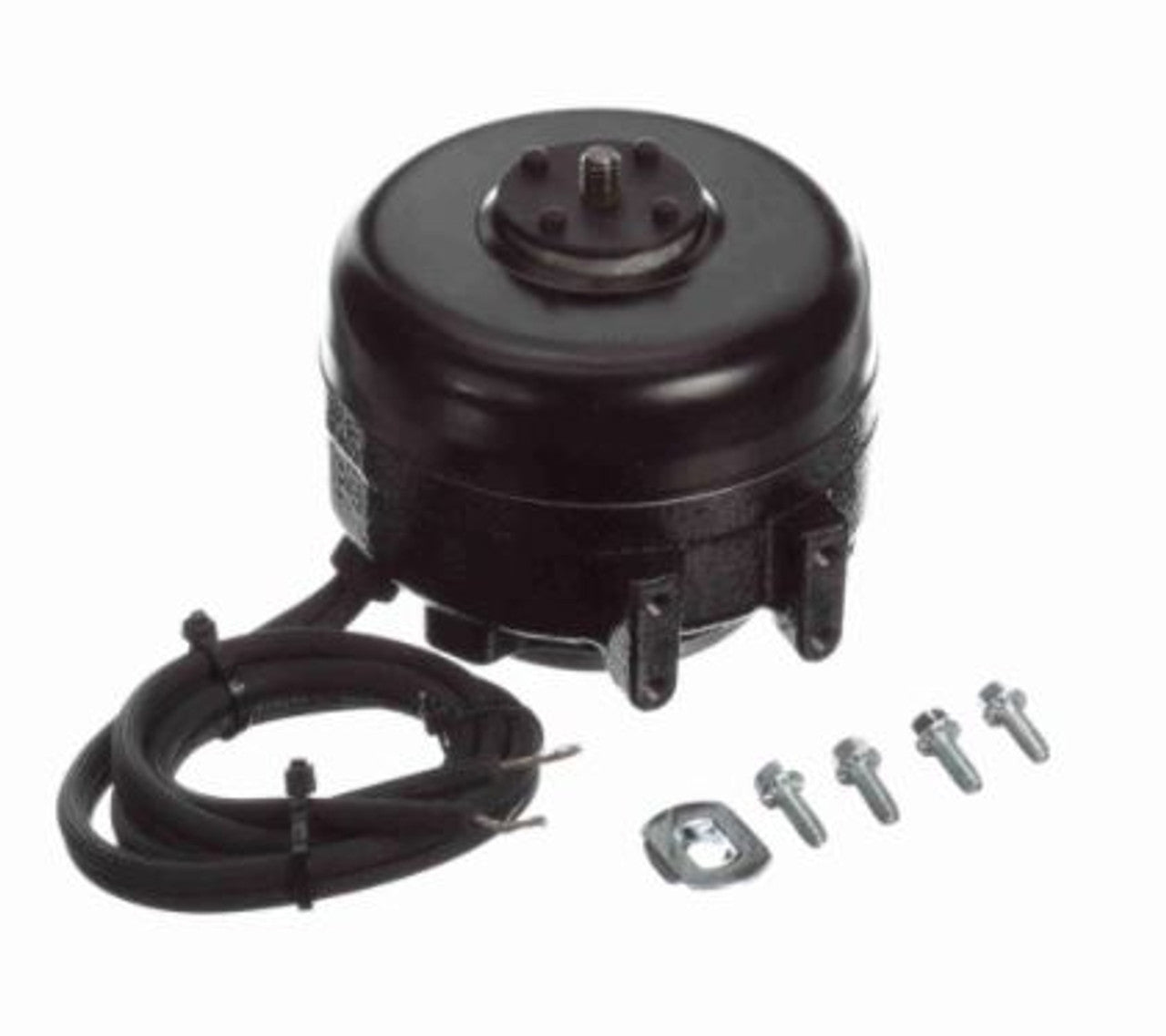

• Speed nut and mounting screws included for easy installation

Product Highlights

Ideal for HVAC/R systems, the FASCO UB584 ensures efficient airflow while being easy to mount and install.

Product Information

Standard Information

• Brand: FASCO
• MPN: UB584

Technical Specifications

• Product Type: Fan Motor
• Voltage: 115V AC
• Material: Cast Iron
• Rotation: Clockwise
• Enclosure Type: Totally Enclosed
• Motor Type: Shaded Pole
• Amperage: 0.22 A
• RPM: 1550
• Hertz: 60 Hz
• Mount: Double Foot Pads
• Wattage: 2 W
• Duty: Continuous Duty
• Air Over: Yes
• Horsepower: 1/500
• Phase: Single
• Nameplate RPM: 1550
• Motor Service Factor: 1
• Max. Ambient Temp.: 40 Degrees C
• Motor Mounting Position: All Angle
• Motor Enclosure Design: Totally Enclosed Air-Over
• Insulation Class: B
• Shaft Design: Threaded
• Motor Bearings: Unit
• Includes: Speed Nut and Screws
• Applicable Standards: UL and CSA
