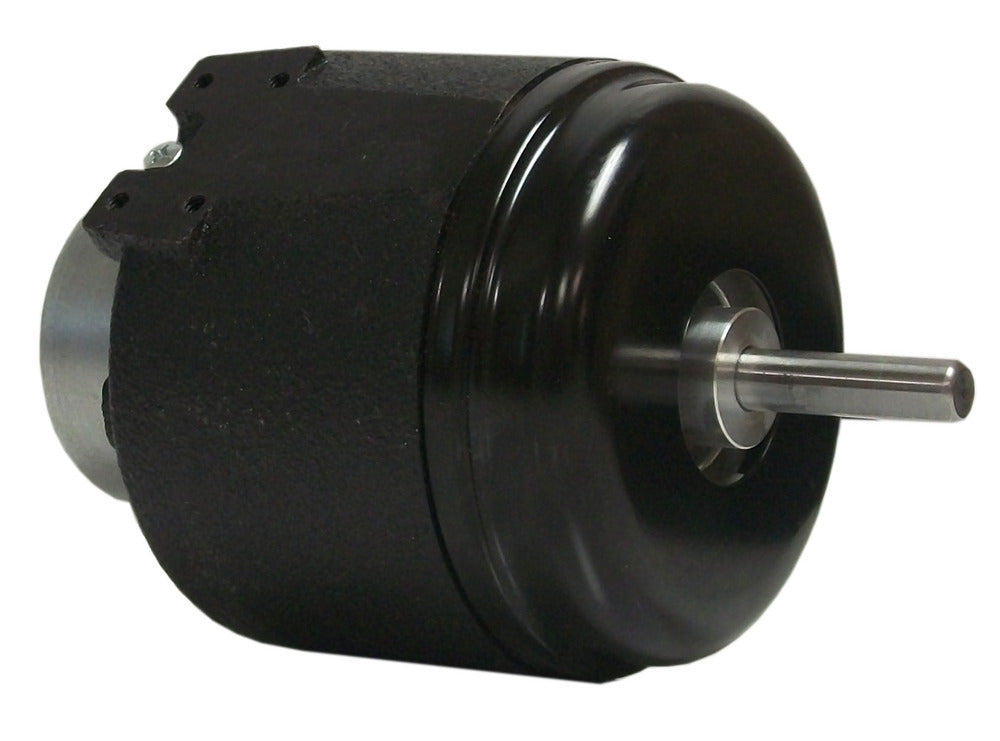

Fasco UB580-F Unit Bearing Motor 0.05KW 230V 1500 RPM

Product Description

The Fasco UB580-F Unit Bearing Motor is a reliable motor designed for various HVAC applications. It operates at 0.05 KW and rotates at 1500 RPM. This motor is rated for 230 volts and is thermally protected, making it suitable for continuous duty in various environments.

• Shaded Pole Electrical Type
• Clockwise Rotation
• 0.85 Amps

Product Highlights

The Fasco UB580-F Unit Bearing Motor is ideal for refrigeration and HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: UB580-F
• Type: Unit Bearing Motor

Technical Specifications

• Electrical Type: Shaded Pole
• KW: 0.05
• RPM: 1500
• Frame: UNIT BEARING
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Voltage: 230
• Rotation: Clockwise Opposite Shaft End
• Overload Protection: Thermally Protected
• Material: Cast Iron
• Mounting: 2 BOSS / OSE 3 Holes
• Amperage: 0.85
• Shaft Type: Flat
• Shaft Diameter: 0.375 inches
• Bearings DE Type: Unit
• Bearings ODE Type: Unit
• Shaft Extension: 1.55 inches
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: A
• Number of Poles: 4
• Service Factor: 1
• Frequency: 60 Hz
