Fasco UB576 motor 35 watt

Product Description

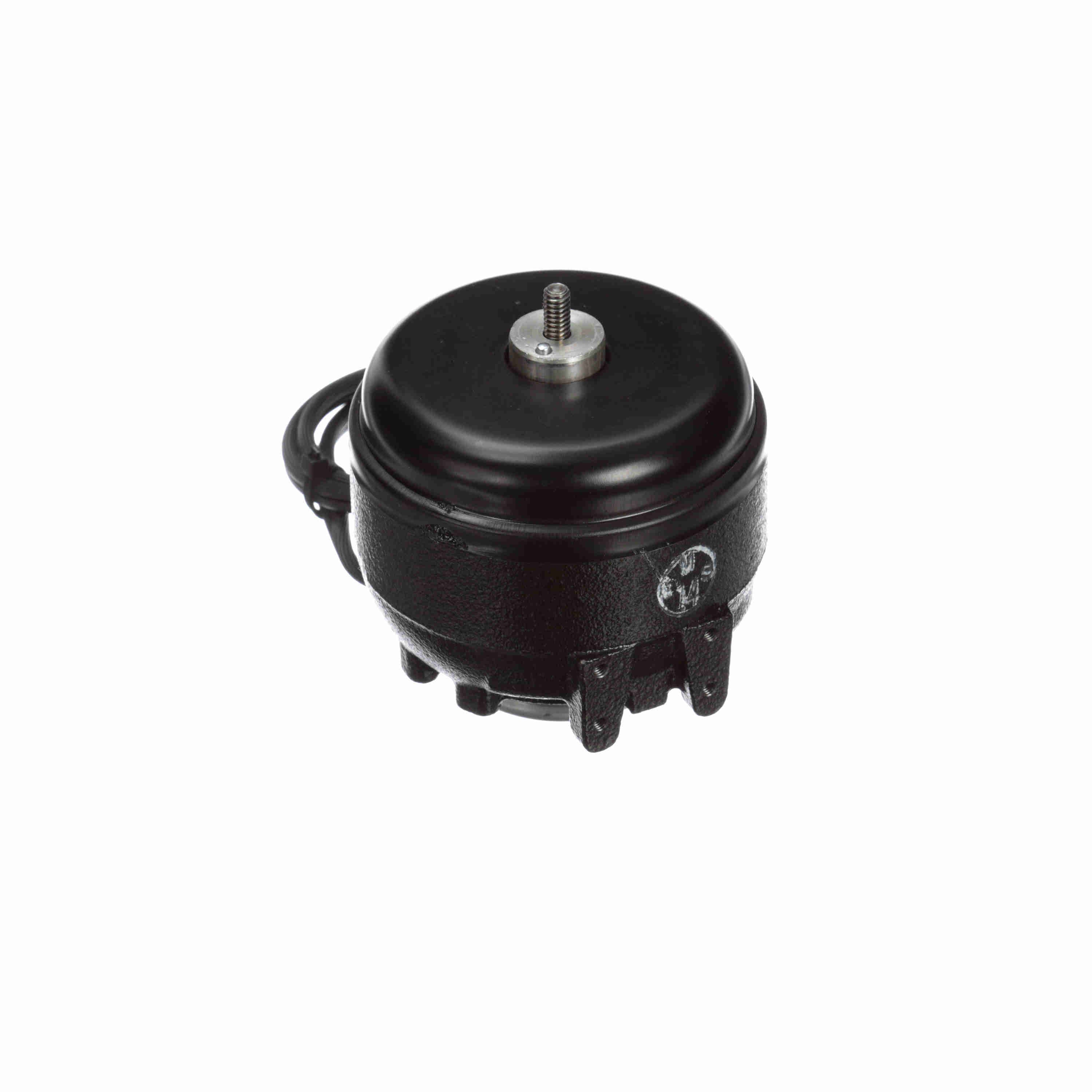

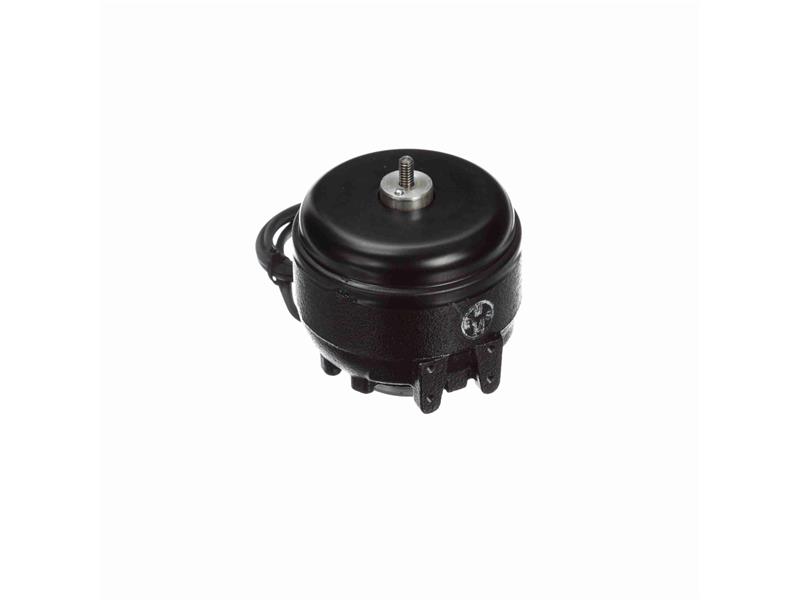

The FASCO UB576 motor is an original OEM 35 Watt motor designed for efficient operation in HVAC applications. It is engineered for optimal airflow and environmental control in commercial and residential settings. This motor operates at 230V and 1500 RPM, featuring a totally enclosed air over enclosure.

• 1550 RPM
• Unit Bearing
• Thermally Protected

Product Highlights

The FASCO UB576 is suitable for air conditioning units, blower assemblies, and exhaust fans. It enhances airflow and cooling efficiency.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: UB576

Technical Specifications

• RPM: 1550
• Phase: 1
• Output Watts: 35 W
• Voltage: 230 V
• Speed: 1500 rpm
• Service Factor: 1
• Frame: UNIT BEARING
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.7 A
• Duty: Continuous
• Insulation Class: A
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Opposite Shaft End
• Mounting: 2 BOSS/OSE 3 HOLES
• Drive End Bearing: Unit
• Opp Drive End Bearing: Unit
• Frame Material: Cast Iron
• Shaft Type: Threaded
• Frame Length: 3.84 in
• Shaft Diameter: 1/4x20 in
• Shaft Extension: .52 in
• Amperage: 0.7
• Bearings DE Type: Unit
• Bearings ODE Type: Unit
• KW: 0.035
• Part #: UB576
• Category: Motor
