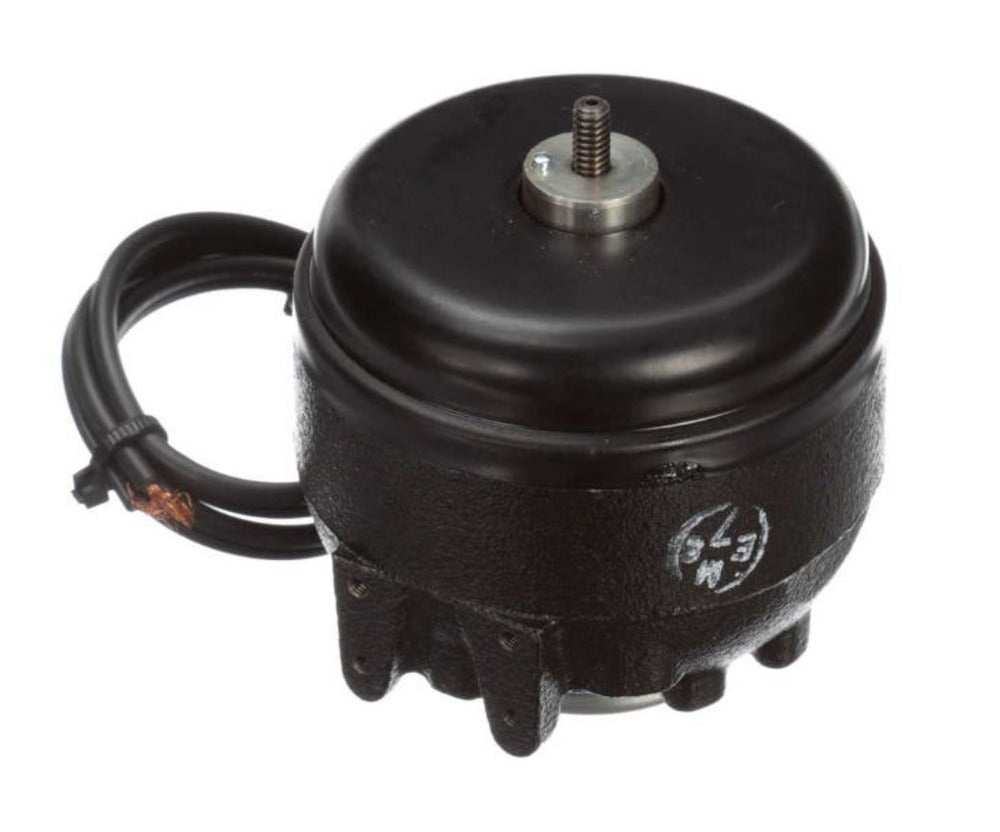

Fasco UB571-F Unit Bearing Motor 0.025 KW 115V Replacement MPN

Product Description

The Fasco UB571-F Unit Bearing Motor is ideal for refrigeration applications. This electrical type is a shaded pole motor that operates at zero point zero two five kilowatts with a rotational speed of one thousand five hundred RPM. It features a totally enclosed air-over design and is thermally protected for enhanced durability.

• Single-phase motor
• Voltage: one hundred fifteen
• Mounting type: 2 boss / OSE 3 holes

Product Highlights

This unit bearing motor is engineered for continuous duty and meets Class A insulation standards, suitable for ambient temperatures up to forty degrees Celsius. The threaded shaft with a diameter of one quarter by twenty inches provides easy installation.

Product Information

Standard Information

• Motor Type: Unit Bearing
• Overload Protection: Thermally Protected

Technical Specifications

• Power: 0.025 KW
• Voltage: 115
• RPM: 1500
• Amperage: 1.1
• Shaft Diameter: 1/4x20
• Dimensions: 5.25 x 3.88 x 3.88 inches
• Weight: 5 lbs
• Service Factor: 1
