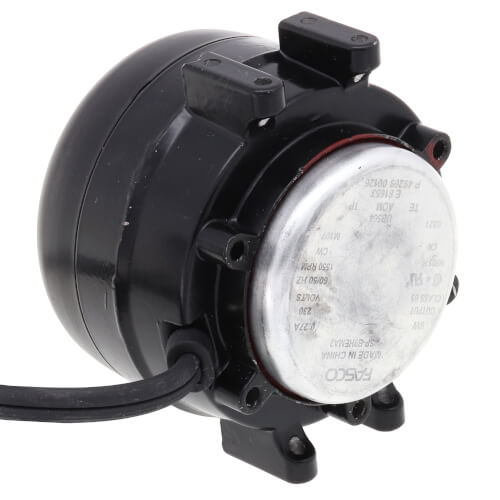

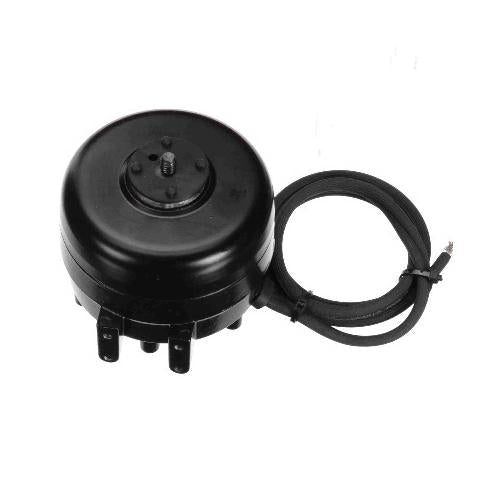

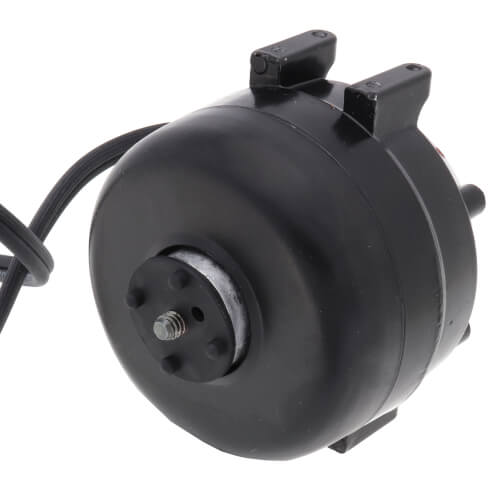

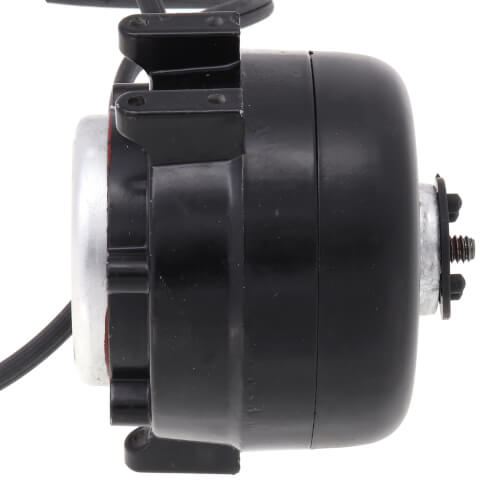

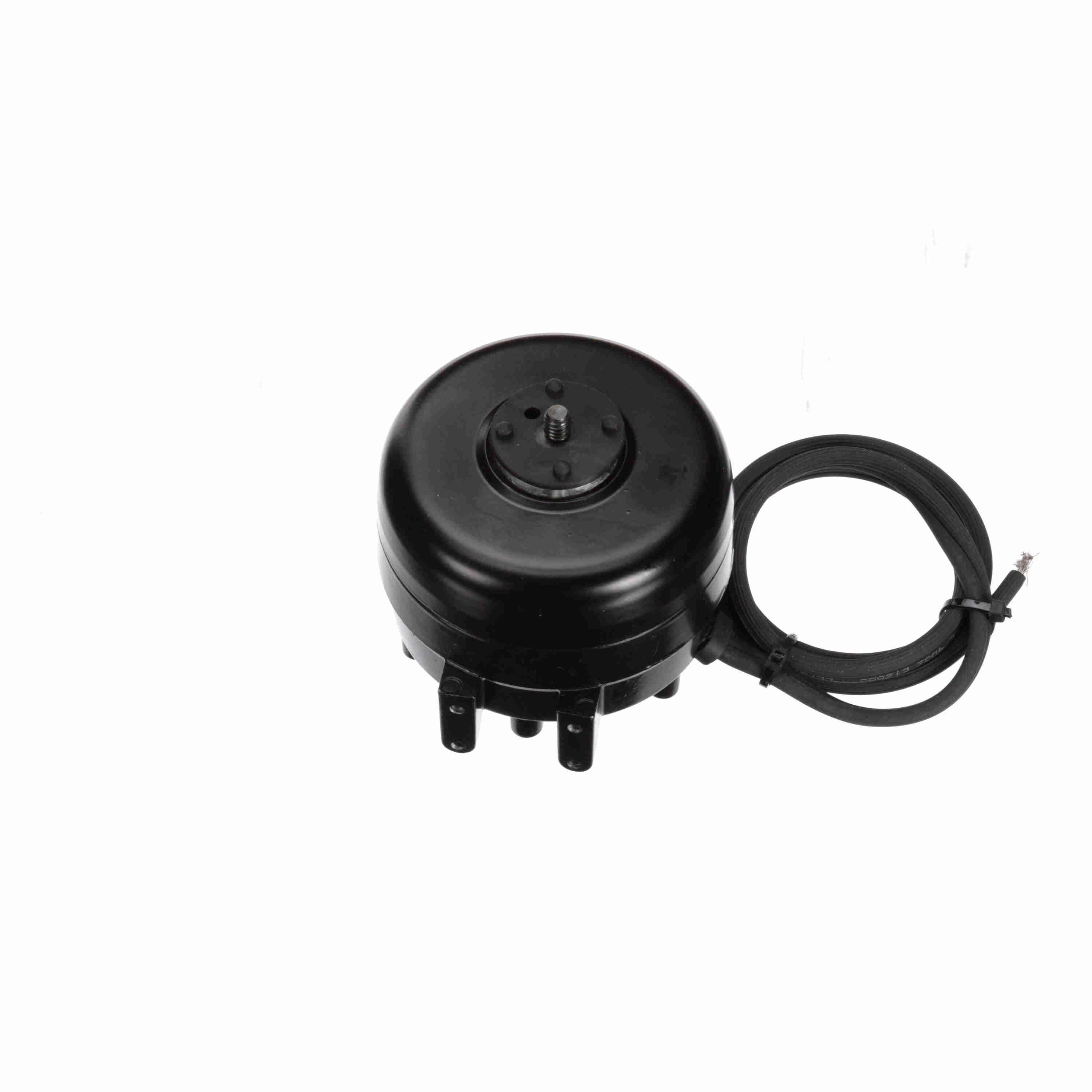

Fasco UB564 4-Pole Continuous Duty HVAC/R Motor 230 V 1550 rpm Insulation Class B

Product Description

The Fasco UB564 HVAC/R motor is a 4-pole continuous duty motor designed for refrigeration applications. It features a shaded pole motor with a totally enclosed air over enclosure and operates at 230 V with a 60 Hz frequency. The motor delivers a speed of 1550 rpm and comes with 2-Boss/Ose 5-holes mounting.

• Thermally protected
• Two mounting feet and five rear mounting holes
• Totally enclosed air over

Product Highlights

This Fasco motor model UB564 delivers reliable performance for refrigeration systems. The unit is protected thermally, has a 1/4-20 diameter x 0.415 inches length shaft, and operates with CWOSE rotation. It features Class B insulation.

Product Information

Standard Information

• Brand: Fasco
• MPN: UB564
• Manufacturer: Regal Beloit
• Country of Origin: CN

Technical Specifications

• Type: 4-Pole Continuous Duty
• Phase: 1 ph
• Speed: 1550 rpm
• Material: Aluminum
• Rotation: CWOSE
• Shaft Size: 1/4-20 Dia x 0.415 in L
• Bearing Type: Unit
• Mounting Type: 2-Boss/Ose 5-Holes
• Enclosure Type: Totally Enclosed Air Over
• Service Factor: 1
• Voltage Rating: 230 V
• Amperage Rating: 0.27 A
• Application Type: Refrigeration Motor
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Special Features: Shaded Pole Motor
• Temperature Rating: 40 deg C
