Fasco UB557 Motor 4 Watt 1450 RPM

Product Description

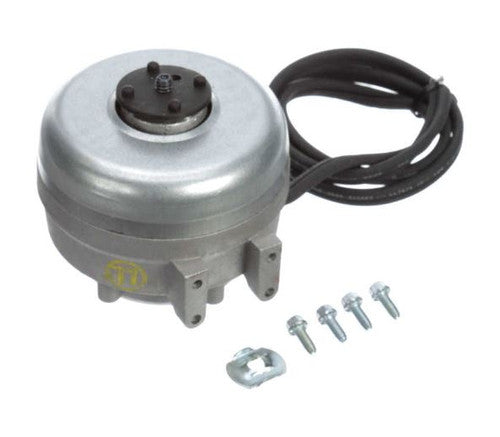

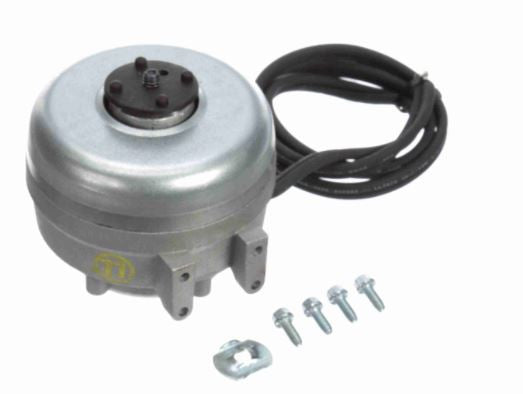

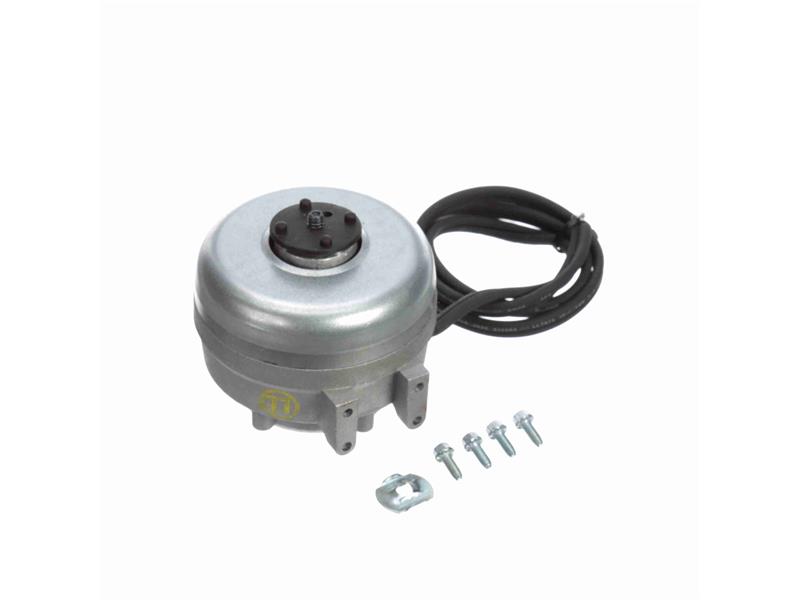

The FASCO UB557 motor is designed for refrigeration and various other applications. This 4-watt motor operates at 230 volts and 1450 RPM. It features an aluminum housing and is a shaded pole motor with air over capability. Includes speed nut and vibration damper.

• Speed nut and vibration damper included
• Aluminum housing
• Shaded Pole Motor - Air Over

Product Highlights

The FASCO UB557 is suitable for refrigeration, ventilation, and other equipment using 6 to 10-inch fan blades.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: UB557

Technical Specifications

• Watt: 4
• RPM: 1450
• Amps: 0.14
• Volts: 230
• Hertz: 60
• Rotation: Counter Clockwise Lead End
• Threaded Shaft: 1/4" - 20 threads
• Mounting: Two Mounting Feet; Rear Mounting Holes
• Housing: Aluminum
• Motor Type: Shaded Pole Motor - Air Over
• Mounting Orientation: Horizontal & Shaft Up Mounting Only
• Part #: UB557
• Enclosure: Totally Enclosed
• Pole: Shaded Pole
• Duty: Continuous Duty
• Air Over: Yes
• Mounting Foot: Aluminum-One
• Brand: Regal Rexnord - Fasco
• Voltage: 230 V
• Features: CCWLE, CWLE
• Type: Unit Bearing Motor
• Model: Unit Bearing Refrigeration Motor
