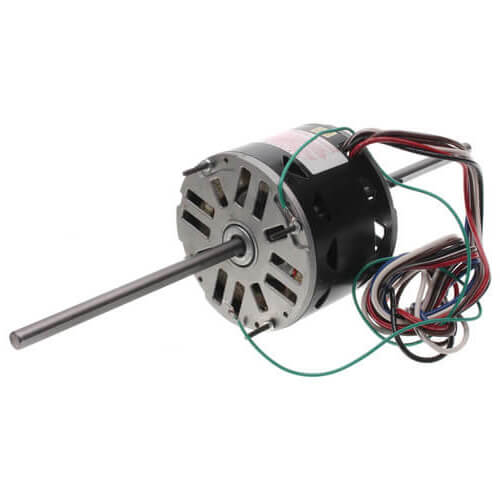

FASCO SA1036V1 Century Fan Coil & Air Conditioner Motor 1/3 HP

Product Description

The FASCO SA1036V1 is a Century fan coil and air conditioner motor rated at 1/3 horsepower. It operates efficiently on 208-230V and 60 Hz frequency with a speed of 1075 RPM, allowing it to adapt to three different operational speeds. This motor features a semi-enclosed design within a 48 frame and includes thermal protection for reliable performance. It is ideal for applications such as fan coils, room air conditioners, and blower motors.

• Features a 5.6-inch diameter and 48 frame.
• Requires a 5 Mfd-370 Volts capacitor (not supplied).
• Equipped with extended studs on both ends for installation.

Product Highlights

Product Information

Standard Information

• Phase: 1
• Output HP: 1/3 HP

Technical Specifications

• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.2 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
