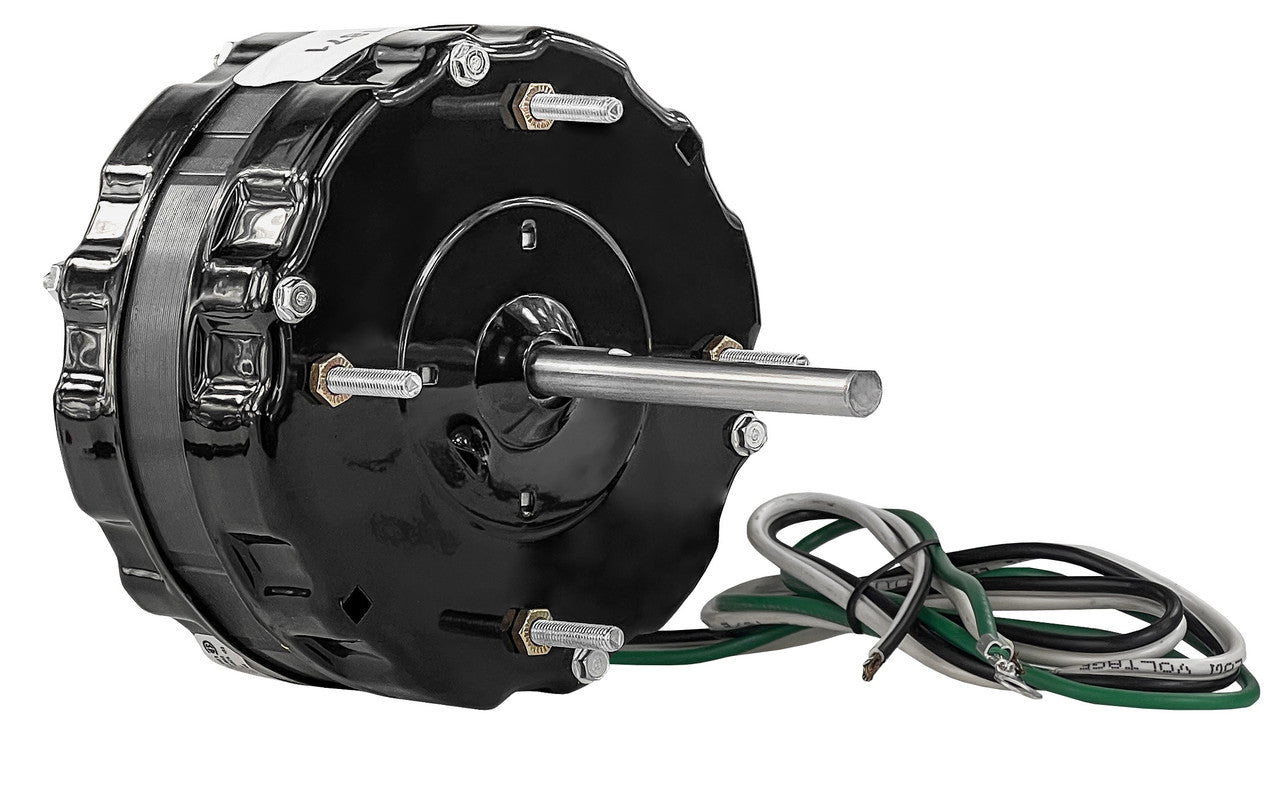

FASCO P01871 Electric Motor 1/20 Horsepower 120V

Product Description

The FASCO P01871 is an electric motor designed for unit heater applications. It operates at one hundred twenty volts and sixty hertz, featuring a single speed of one thousand RPM. This shaded pole motor is equipped with sleeve bearings and a totally enclosed air over (TEAO) enclosure. It includes a three-eighths inch diameter shaft that measures three and three-eighths inches long with a flat, along with a motor body length of two and one-half inches. The motor is built for clockwise rotation when viewed from the shaft end and uses one point four amps.

• Fractional horsepower motor rated at 1/20 hp
• Operates at 120V / 60 Hz
• Features TEAO enclosure and sleeve bearings

Product Highlights

This motor is ideal for unit heaters requiring reliable operation at one thousand RPM.

Product Information

Standard Information

• Brand: Fasco
• MPN: P01871

Technical Specifications

• Horsepower: 1/20 hp
• Speed: One Speed
• Amps: 1.4 amps
• Input Voltage: 120V
• Frequency: 60 Hz
• Shaft: 3/8 Dia. X 3-3/8 Long with Flat
• Rotation: CW Viewing Shaft End
• Enclosure: Totally Enclosed Air Over
• Bearings: Sleeve Bearings
• Motor Body Length: 2-1/2
• Motor Type: Shaded Pole
• Mounting Bolts: 2-3/4 Square
