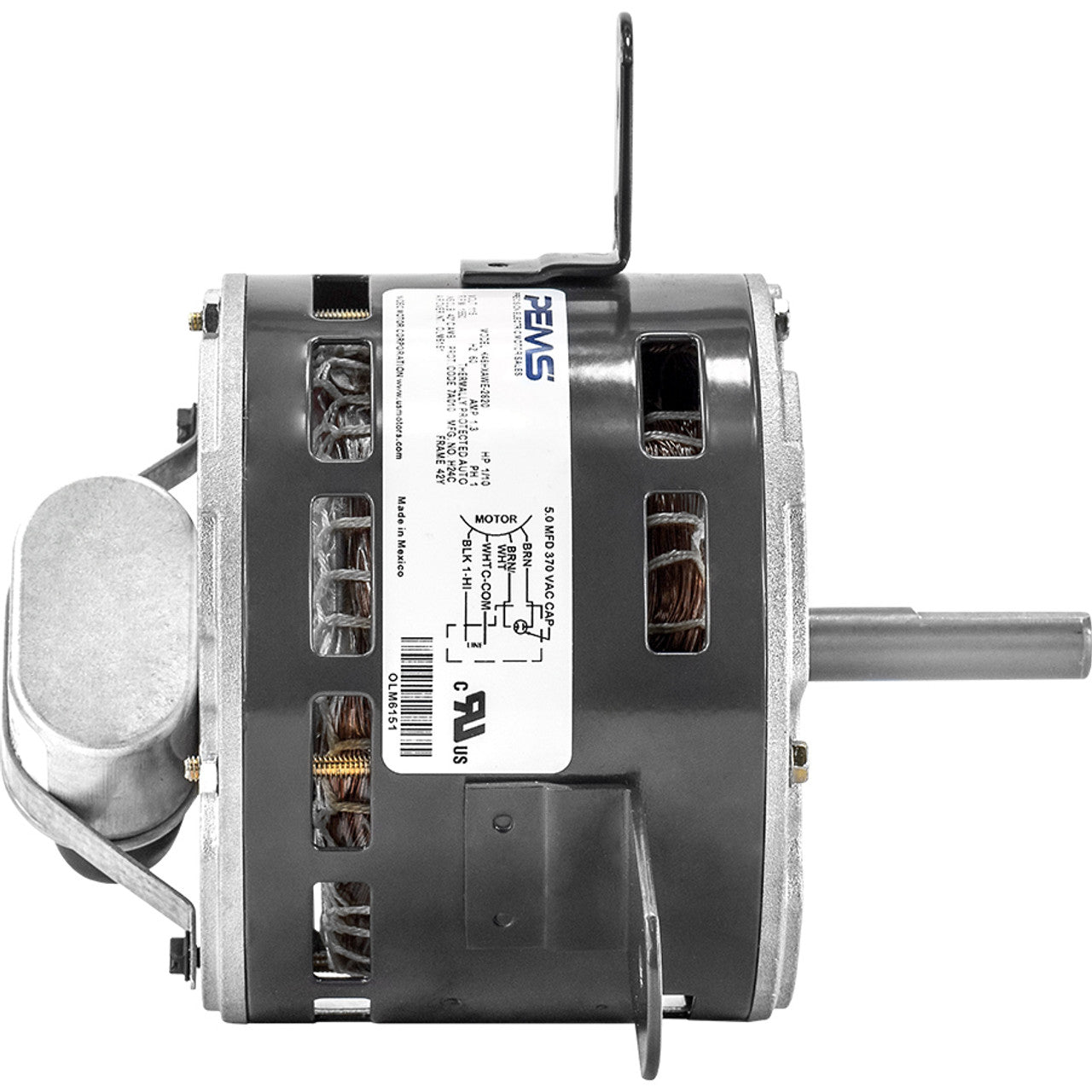

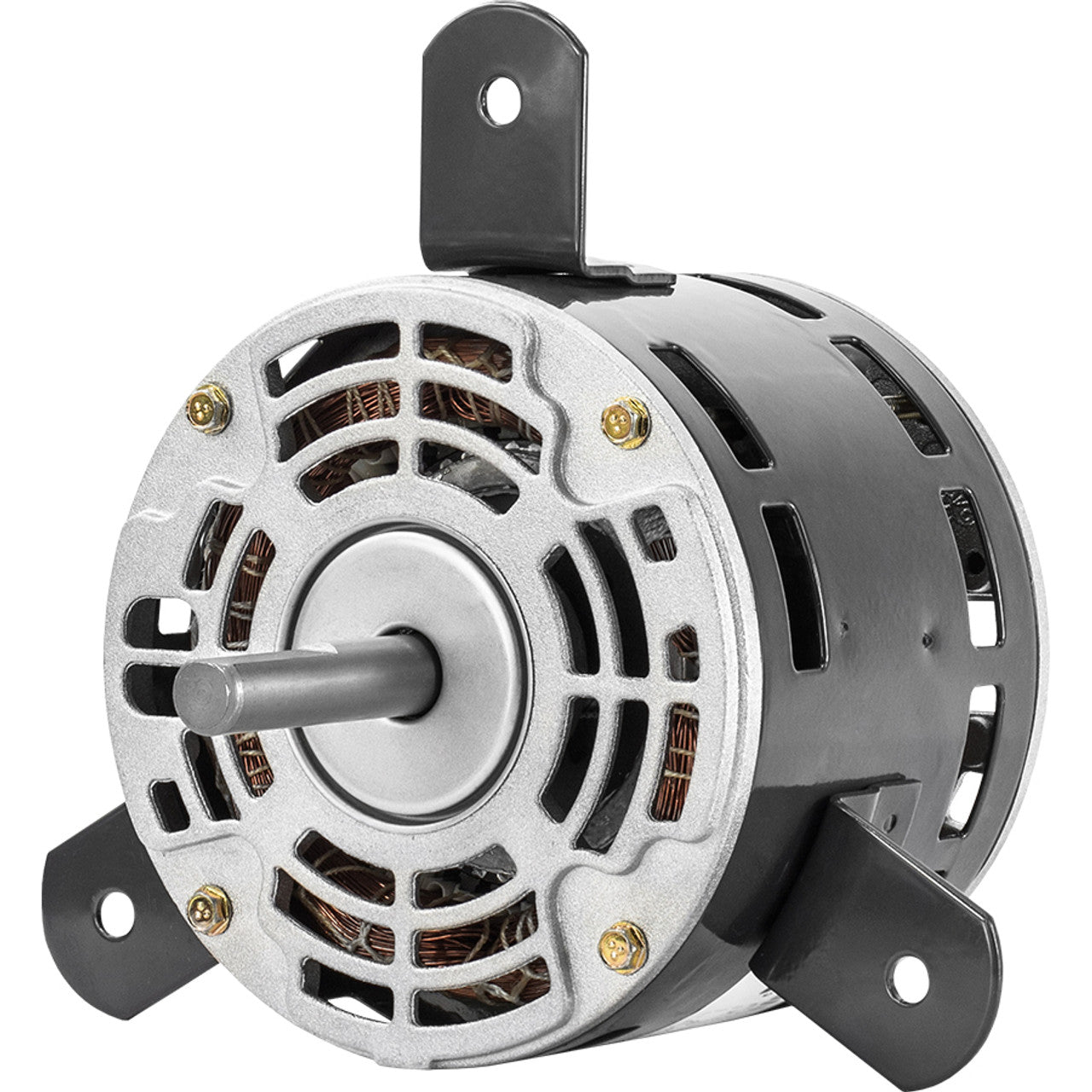

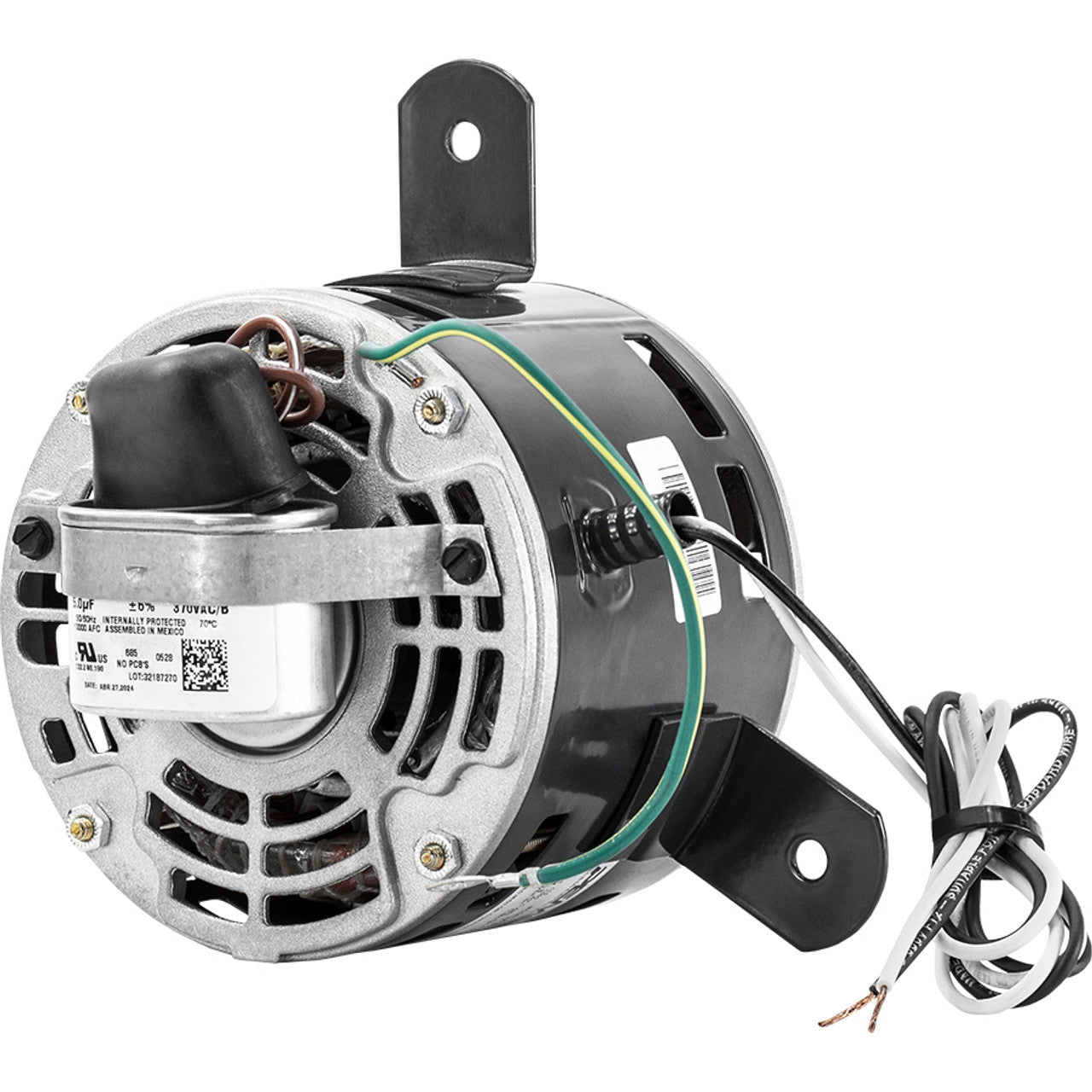

Fasco OLM6151 Lomanco Power Vent Attic Fan Motor 1/10 hp REPLACES 332P151

Product Description

The Fasco OLM6151 Lomanco Power Vent Attic Fan Motor replaces 332P151 and A016B2059. This motor operates at 115 Volts and 60 Hertz, providing 1/10 horsepower at 1550 RPM.

• Replaces 332P151 and A016B2059
• Energy efficient with new PSC design
• Thermally protected for safety

Product Highlights

This motor is designed for optimal attic ventilation, helping to reduce heat build-up and improve air circulation.

Product Information

Standard Information

• Voltage: 115 Volts
• Frequency: 60 Hertz

Technical Specifications

• Horsepower: 1/10 hp
• RPM: 1550
• Amps: 1.3 amps
• Shaft Diameter: 1/2 inches
• Shaft Length: 2 inches
• Rotation: CW Shaft End
• Bearings: Ball Bearings
• Protection: Thermally Protected
• Motor Diameter: 5 inches
• Motor Length (less shaft): 3.8 inches
• Mounting Points: 3
• Mounting Point Measurement: 6 inches On Center
• Phase: Single
• Electrical Type: PSC (Permanent Split Capacitor)
• Duty: Air Over
• Frame Size: 42Y
• Orientation: Horizontal
• Overall Length: 5.11 inches
