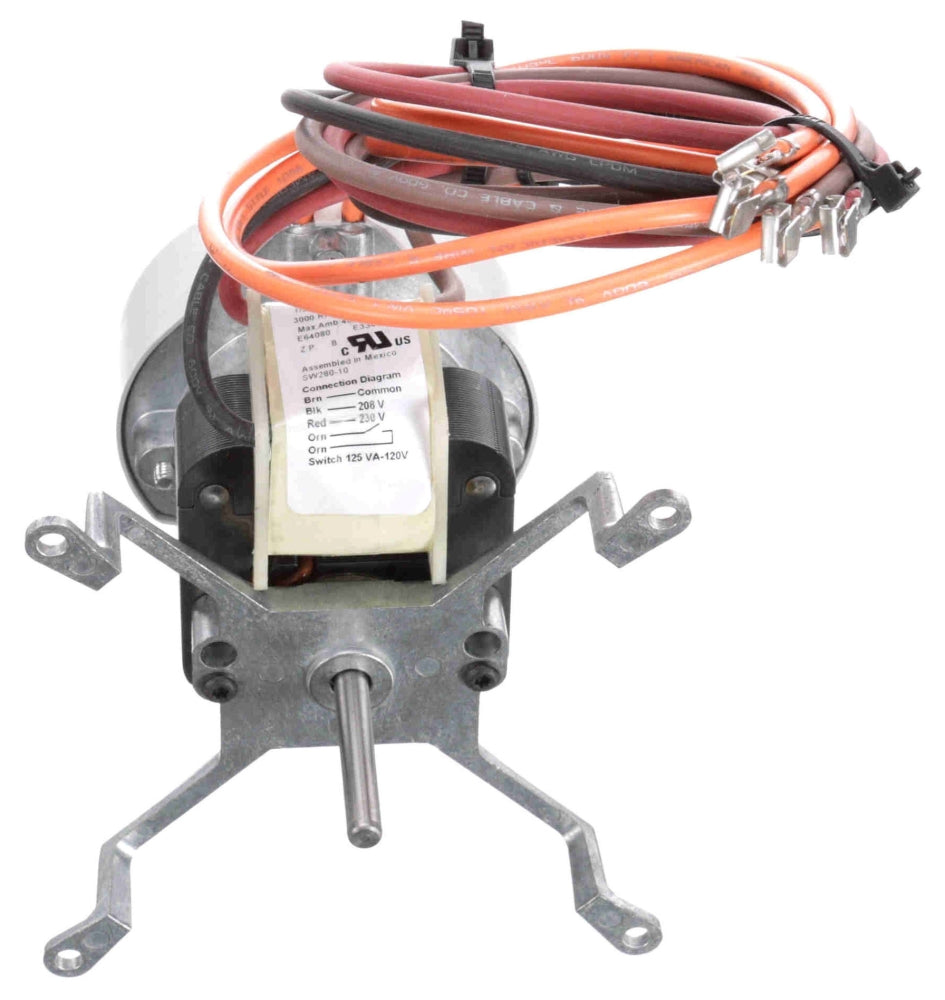

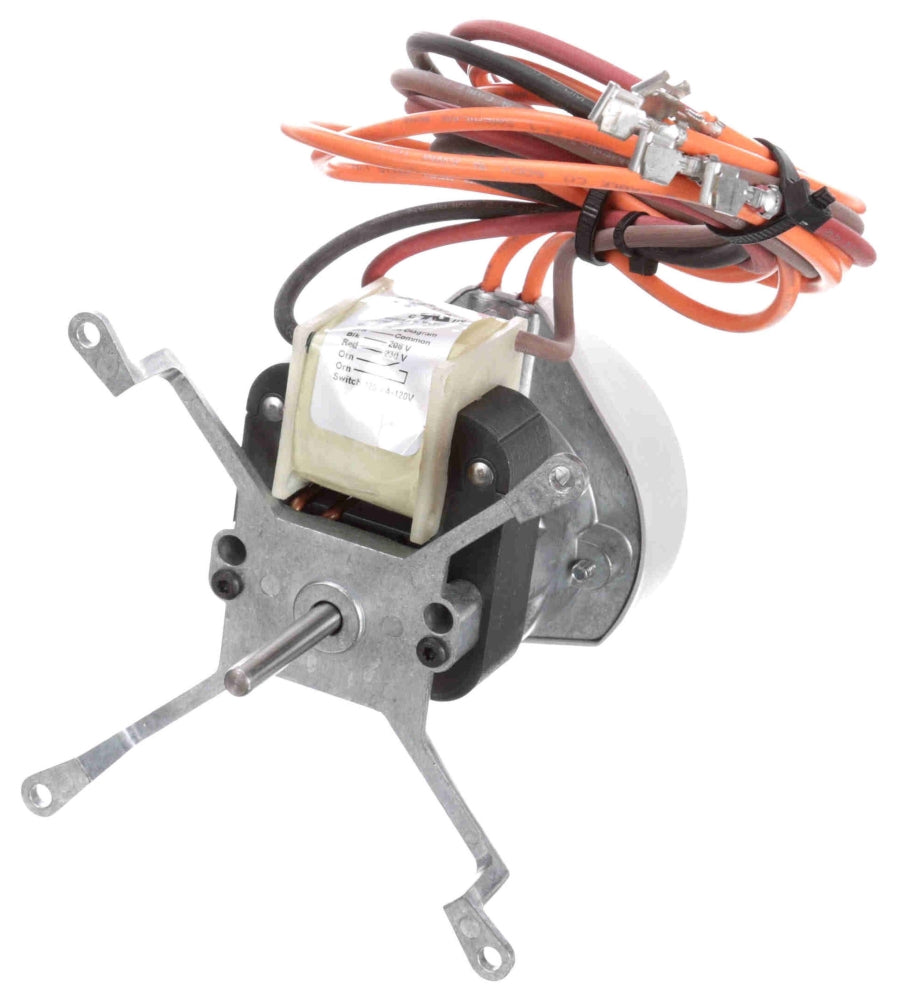

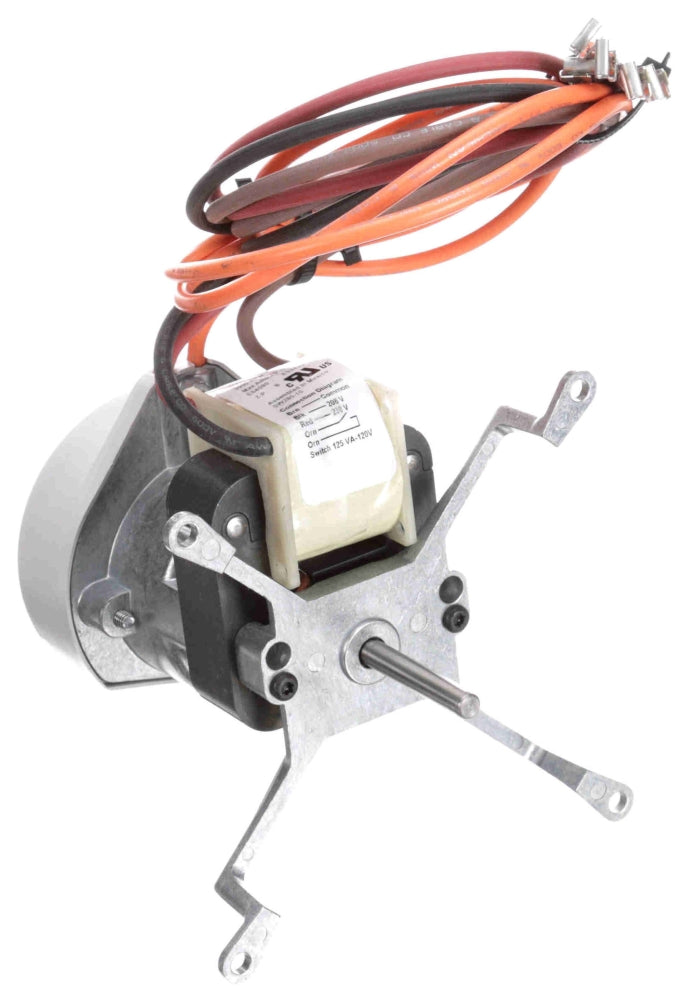

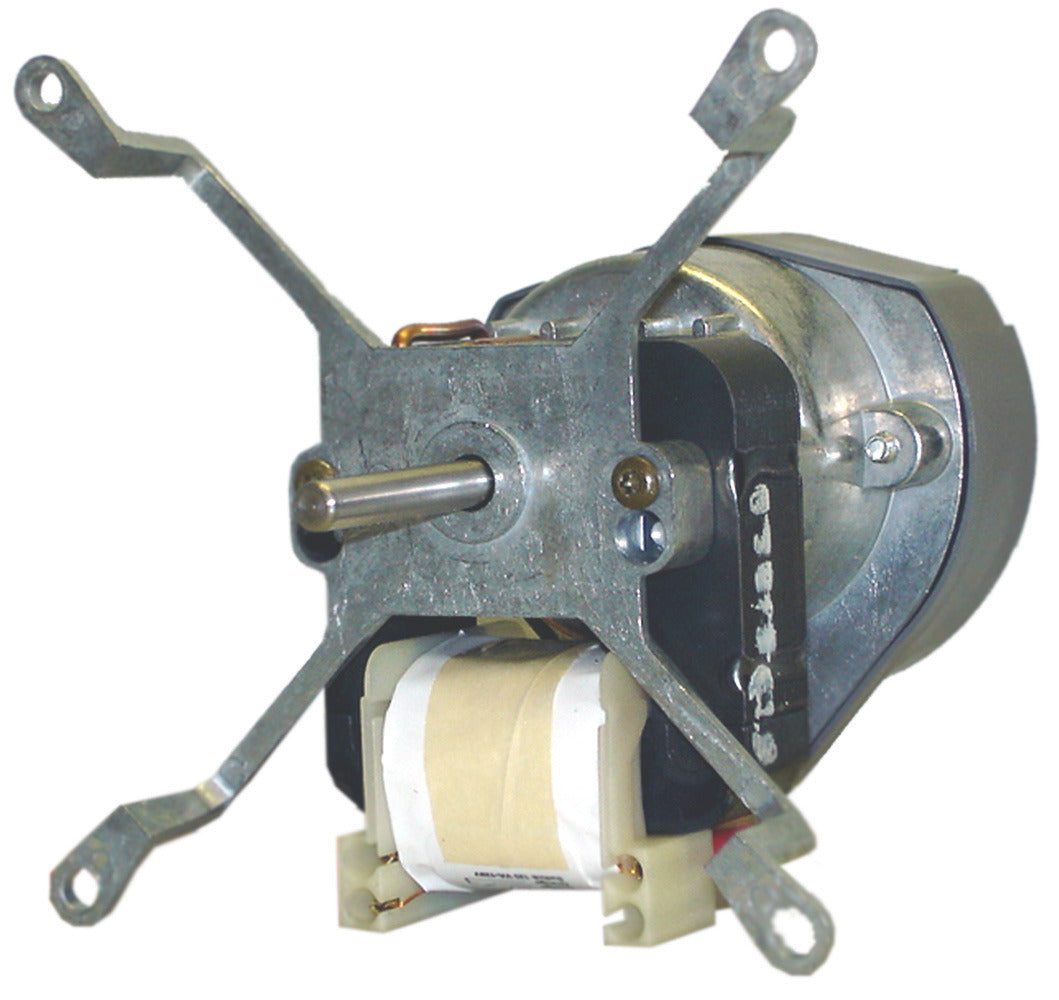

Fasco K628 1/200 HP 3000 RPM 208/230 VAC 1-Phase Motor

Product Description

The Fasco K628 is a shaded pole motor with a power rating of one over two hundred horsepower and operates at three thousand RPM. Suitable for various applications like vent fans, wall heaters, and refrigeration fans, this motor operates efficiently at a voltage of two hundred eight or two hundred thirty volts AC in single phase.

• Power Rating: 1/200 HP
• Speed: 3000 RPM
• Voltage: 208/230 VAC, single phase

Product Highlights

This motor is designed for reliable performance in air-moving applications. Its compact size allows for easy installation in various housing setups. The thermally protected design enhances safety and efficiency during operation.

Product Information

Standard Information

• Manufacturer: Fasco
• Mounting Type: Bracket

Technical Specifications

• Enclosure Type: Open Air-Over
• Frequency Rating: 60 Hertz
• Insulation Class: B
• Number of Speeds: 1
• Service Factor: 1
• NEMA Frame Size: C
• Motor FLA: 0.25 Amp
• Shaft Type: Round
• Ambient Temperature Rating: 40°C
• Weight: 3 Pounds
