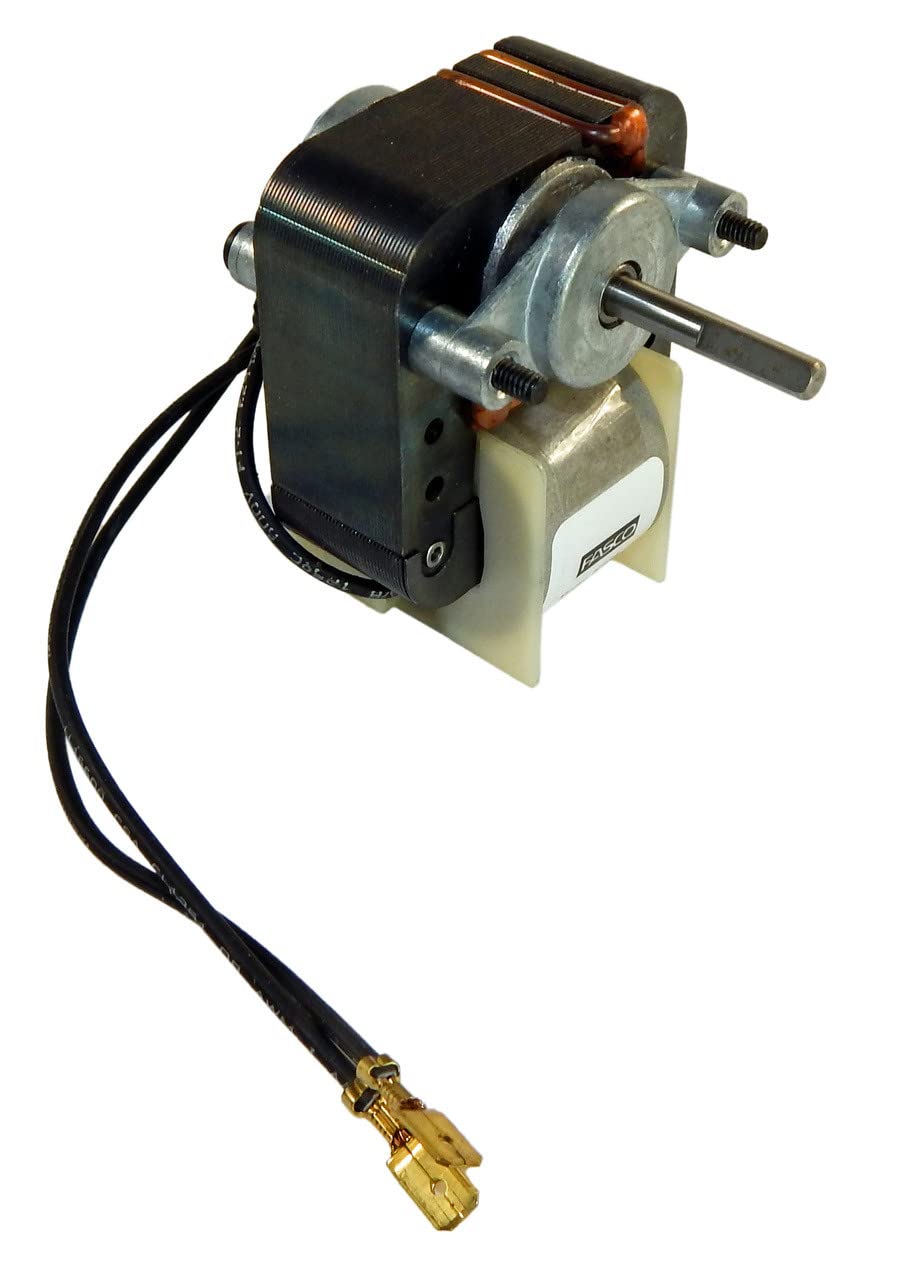

Fasco K161 C-Frame Ice Maker Motor 115 Volts 3000RPM

Product Description

The Fasco K161 C-Frame Ice Maker Motor operates at 115 volts and 3000 RPM. This motor is ideal for use in ice makers and other applications that require reliable motor performance.

• Thermally protected.
• UL recognized and CSA certified.
• Counterclockwise shaft end rotation.

Product Highlights

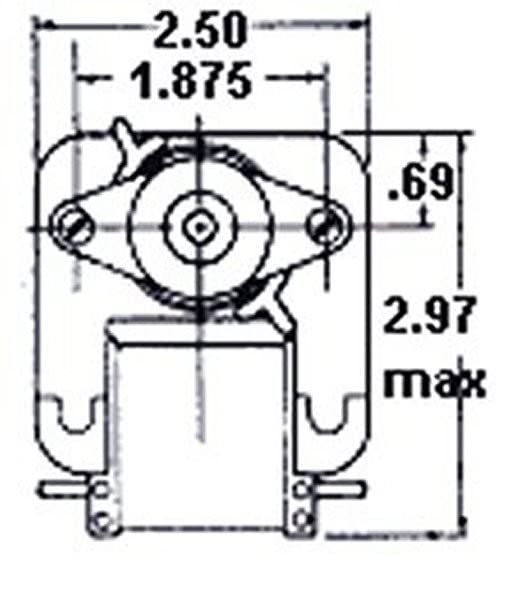

This Fasco K161 motor features thermally protected construction for safety. It is recognized by UL and certified by CSA, ensuring compliance with industry standards. The motor has a counterclockwise shaft end rotation and is equipped with two main thru-bolts with torx heads. The shaft measures 0.217 inches in diameter and 1.21 inches in length.

Product Information

Standard Information

• Brand: Fasco
• Model: K161
• Voltage: 115 Volts

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 Volts
• Horsepower: 0.05 hp
• Amperage: 0.9 amps
• Frame: C-Frame
• Shaft Diameter: 0.218 inches
• Shaft Length: 1.21 inches
• Thermal Protection: Included
