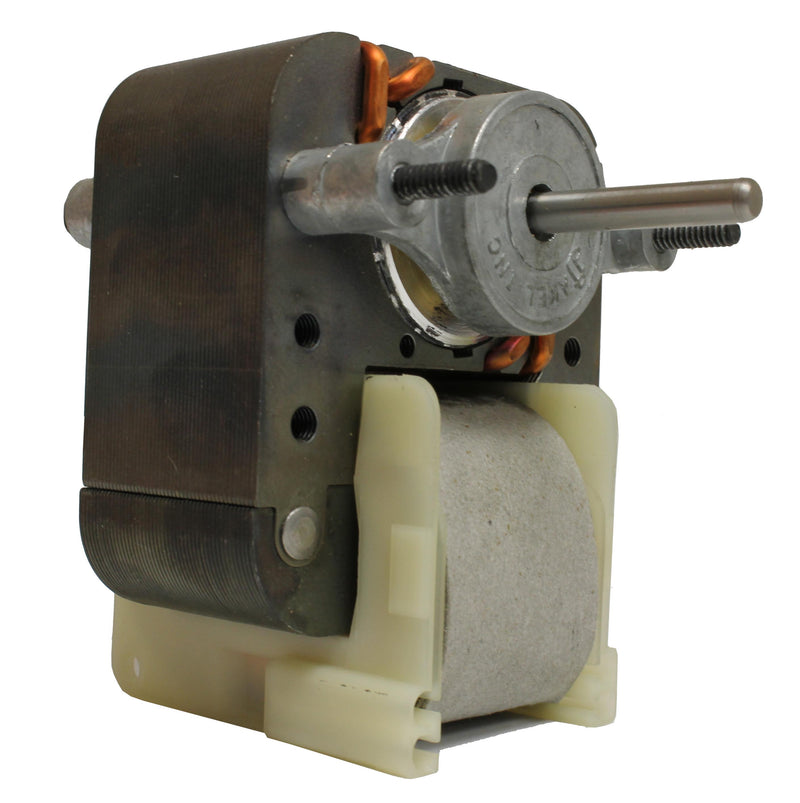

Fasco K141 Motor 1/70 HP, 3000 RPM, 120 V, 1 Phase

Product Description

The FASCO K141 small electric motor is a durable and easy-to-install unit. Fasco has a proven reputation for building quality products at affordable prices. It is designed for heavy-duty industrial and commercial applications, including ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers.

• Dynamically balanced rotors
• Reduced vibration and quiet operation
• Rotation determined by looking at shaft end
• Thermally protected

Product Highlights

The Fasco K141 is UL recognized and CSA or ULc certified. It features a split-phase motor type, 3000 RPM, and operates at 120V.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: K141

Technical Specifications

• Motor Type: Split-Phase
• HP: 1/70
• Nameplate RPM: 3000
• Voltage: 120
• Rotation: CW
• Hz: 60
• Phase: 1
• Speeds: 1
• Bearings: Sleeve
• Shaft Number: 2
• Shaft Length: 1"
• Shaft Diameter: 0.181"
• Thermal Protection: No
• Amps: 0.65
• Enclosure Type: OAO (Open Air Over)
• Frame: C-Frame
