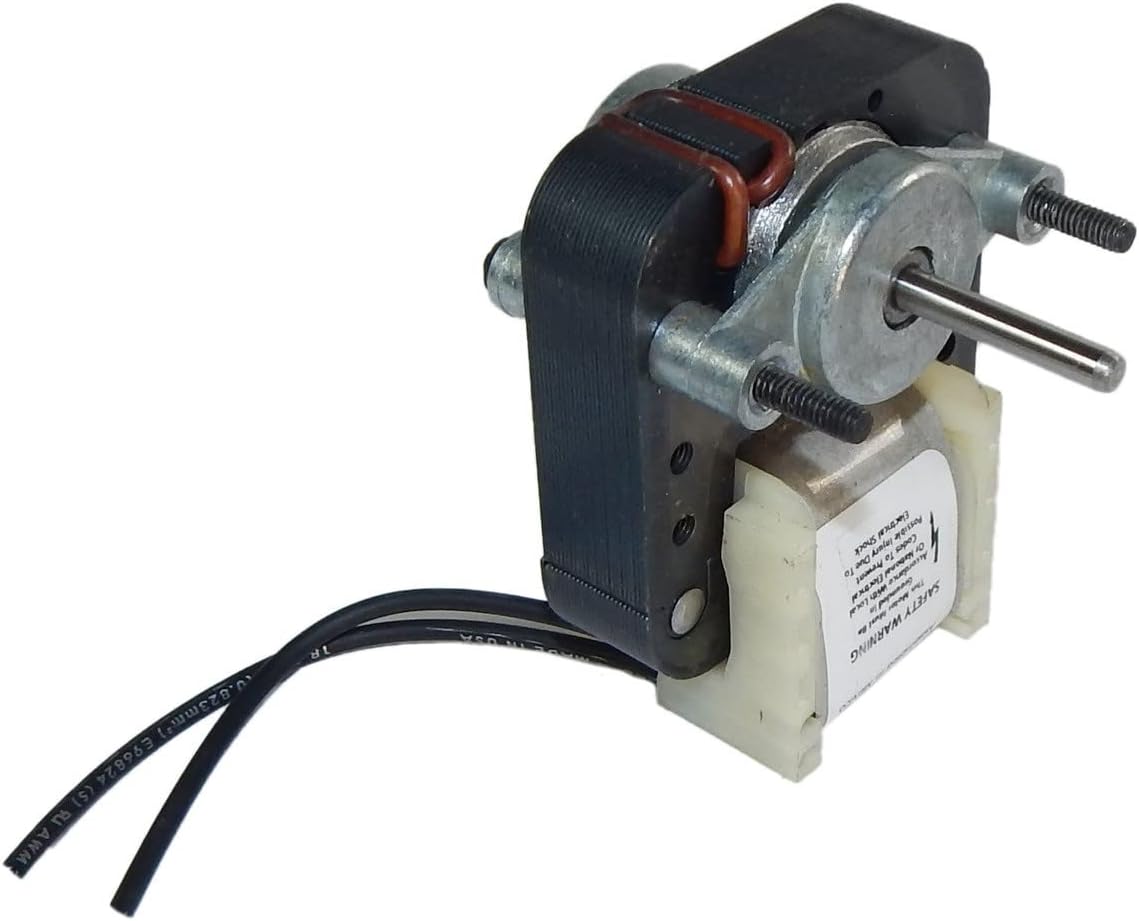

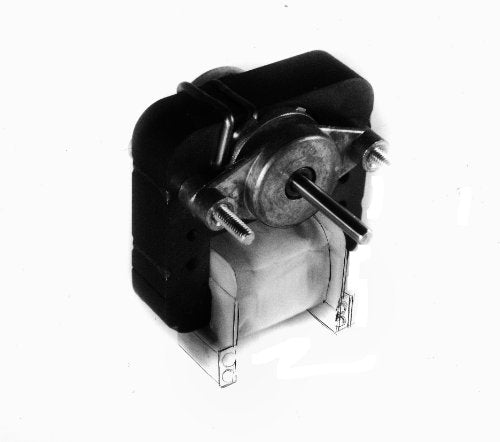

Fasco K130 C-Frame Vent Fan Motor 3000RPM 115 Volts CW Rotation

Product Description

The Fasco K130 C-Frame Vent Fan Motor is designed with a clockwise shaft end rotation, running at 3000RPM and at 115 Volts. It draws 0.47 amps and is thermally protected, ensuring reliable and safe operation. This motor is suitable for various applications such as fans, gas furnace draft inducers, microwave ovens, humidifiers, aquarium pumps, copy machines, and vending machines.

• 3000 RPM speed
• 115 Volts
• Thermally protected

Product Highlights

This Fasco motor features a durable construction and reliable performance, making it suitable for diverse use cases. Its thermally protected design ensures it operates safely in demanding environments, and with its clockwise shaft end rotation, it is adaptable for various applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: K130

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 Volts
• Amperage: 0.47 amps
• Rotation: Clockwise
• Frame: C-Frame / Skeleton
• Horsepower: 1/150 HP
• Frequency: 60 Hz
• Material: Iron
• Bearing Type: Sleeve
• Shaft Diameter: 0.181 inches
• Shaft Extension: 1 inch
• Insulation Class: B
• Enclosure: Open
