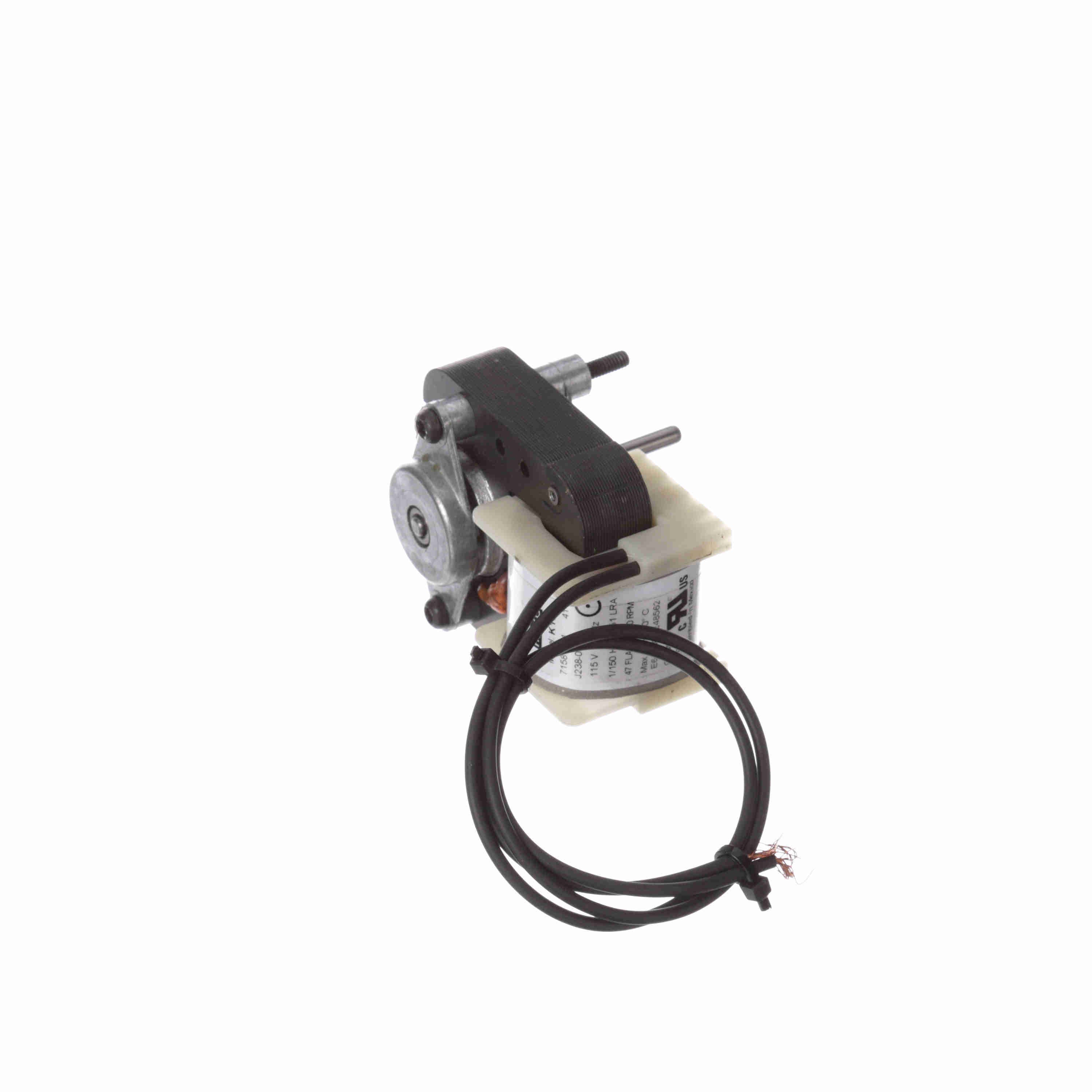

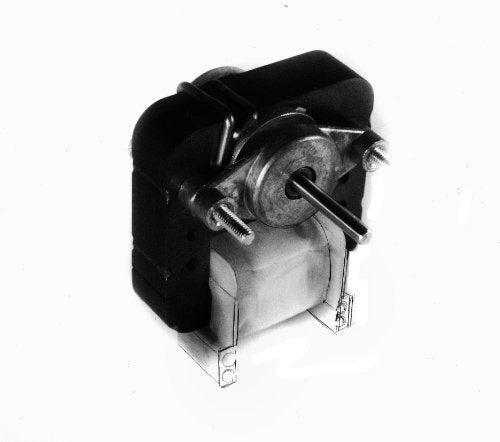

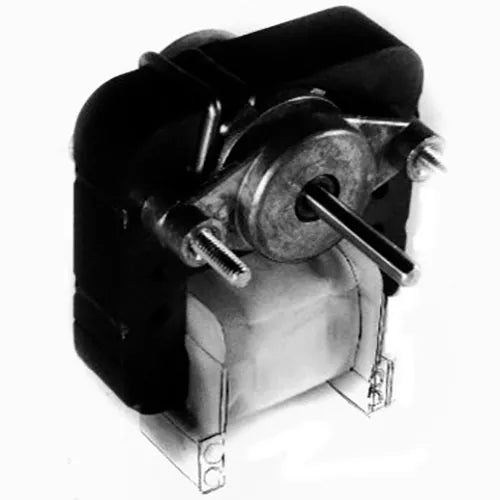

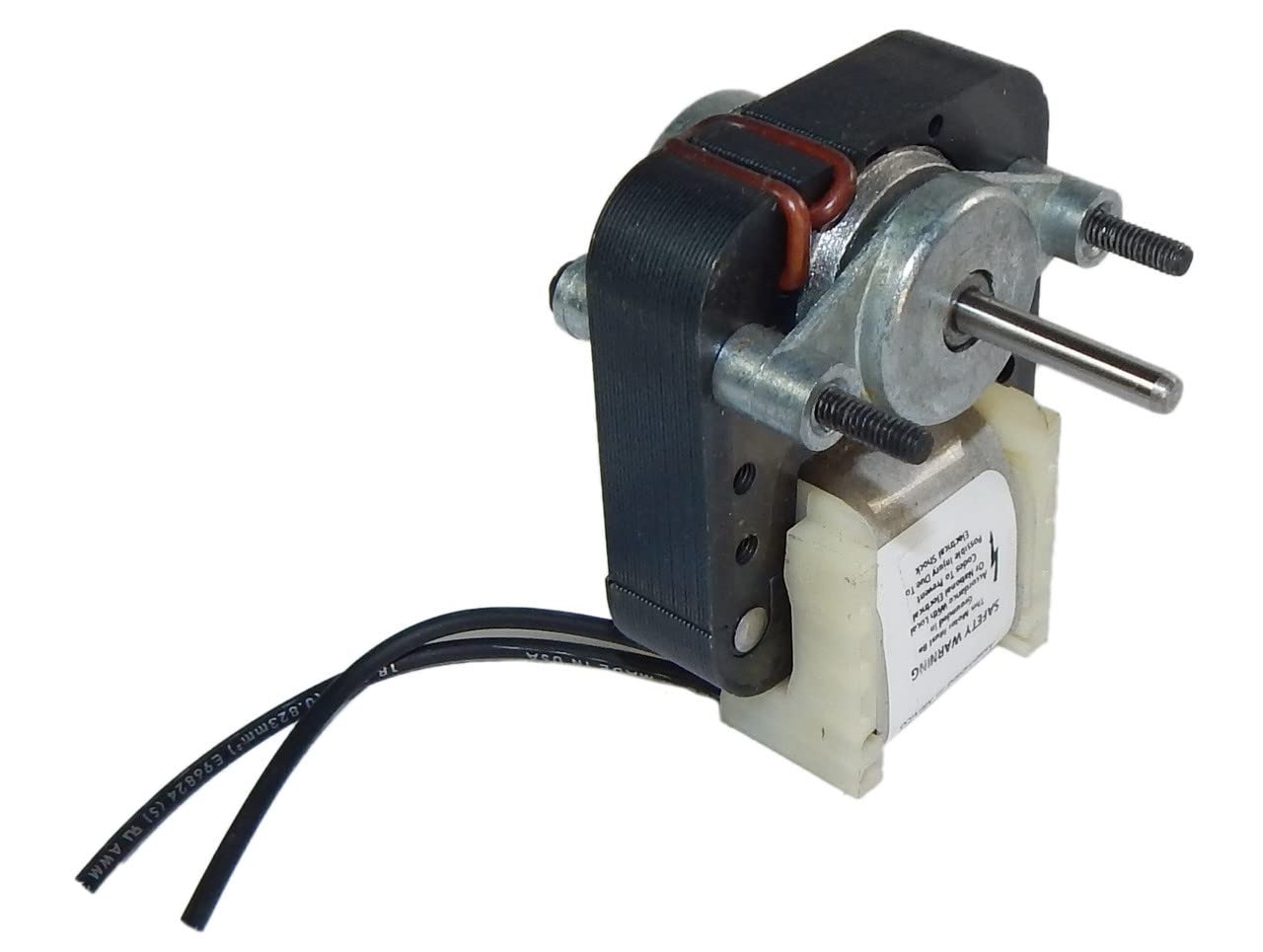

Fasco K130 C-Frame Vent Fan Motor 115 Volts

Product Description

The FASCO K130 is a C-Frame Vent Fan Motor that operates on 115 Volts. This motor has a speed of 3000 RPM and a current of 0.43 amps, suitable for different applications like fans, gas furnace draft inducers, and vending machines. It features an open enclosure and sleeve bearing.

• C-Frame design for versatility
• Operates efficiently at 3000 RPM
• Thermally protected for safety

Product Highlights

This motor is ideal for HVAC professionals and applications in climate control systems.

Product Information

Standard Information

• Brand: FASCO
• MPN: K130

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 Volts
• Frame: C-Frame
• Hertz: 60 Hz
• Phase: 1
• Poles: 2
• Rotation: CW
• Horsepower: 1/150 HP
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 0.47 FLA
• Number of Speeds: 1
• Certifications: UL, CSA
• Shaft Type: Flat
• Kilowatts: 0.01
• Shaft Diameter: 0.181 inches
• Shaft Extension: 1.00 inches
• Overload: Thermally Protected
• Ambient Temperature: 40°C
• Insulation Class: B
• Service Factor: 1.0
