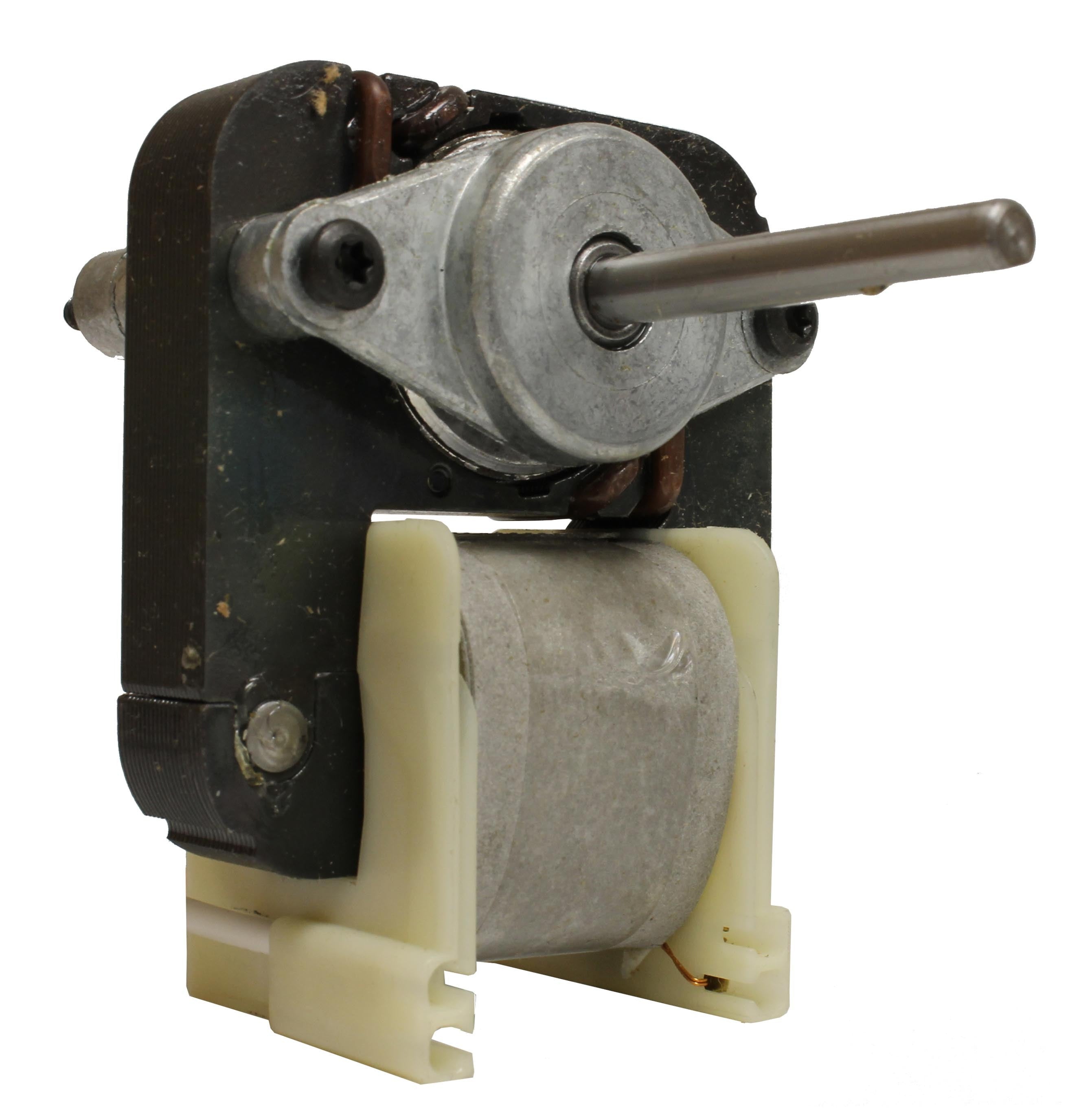

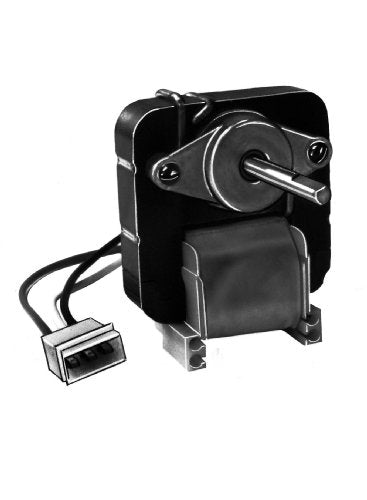

Fasco K120 C Frame Open K Line Shaded Pole OEM Replacement Electric Motor with Sleeve Bearing 1/200HP 3000rpm 115VAC 60Hz 0.50-0.29 amps

Product Description

The Fasco K120 is a C-frame motor designed for various applications including heating, refrigeration, and ventilation. This shaded pole motor provides reliable performance at one over two hundred horsepower, reaching speeds of up to three thousand RPM. Its design is suitable for ductless rangehoods and other ventilation systems.

• Amperage range: 0.50 to 0.29 amps
• Voltage: 115VAC with a frequency of 60Hz
• Thermally protected for safety

Product Highlights

The Fasco K120 is an optimal choice for HVAC applications requiring a durable and efficient motor.

Product Information

Standard Information

• Brand: Fasco
• MPN: K120

Technical Specifications

• Electrical Type: Shaded Pole
• Horsepower: 1/260
• RPM: 3000
• Frame Type: C-Frame/Skeleton
• Enclosure: Open
• Phase: Single
• Voltage: 120
• Rotation: Clockwise
• Shaft Diameter: 0.218 inches
• Bearing Type: Sleeve
• Shaft Extension: 1.55 inches
• Ambient Temperature: 40°C
• Insulation Class: B
