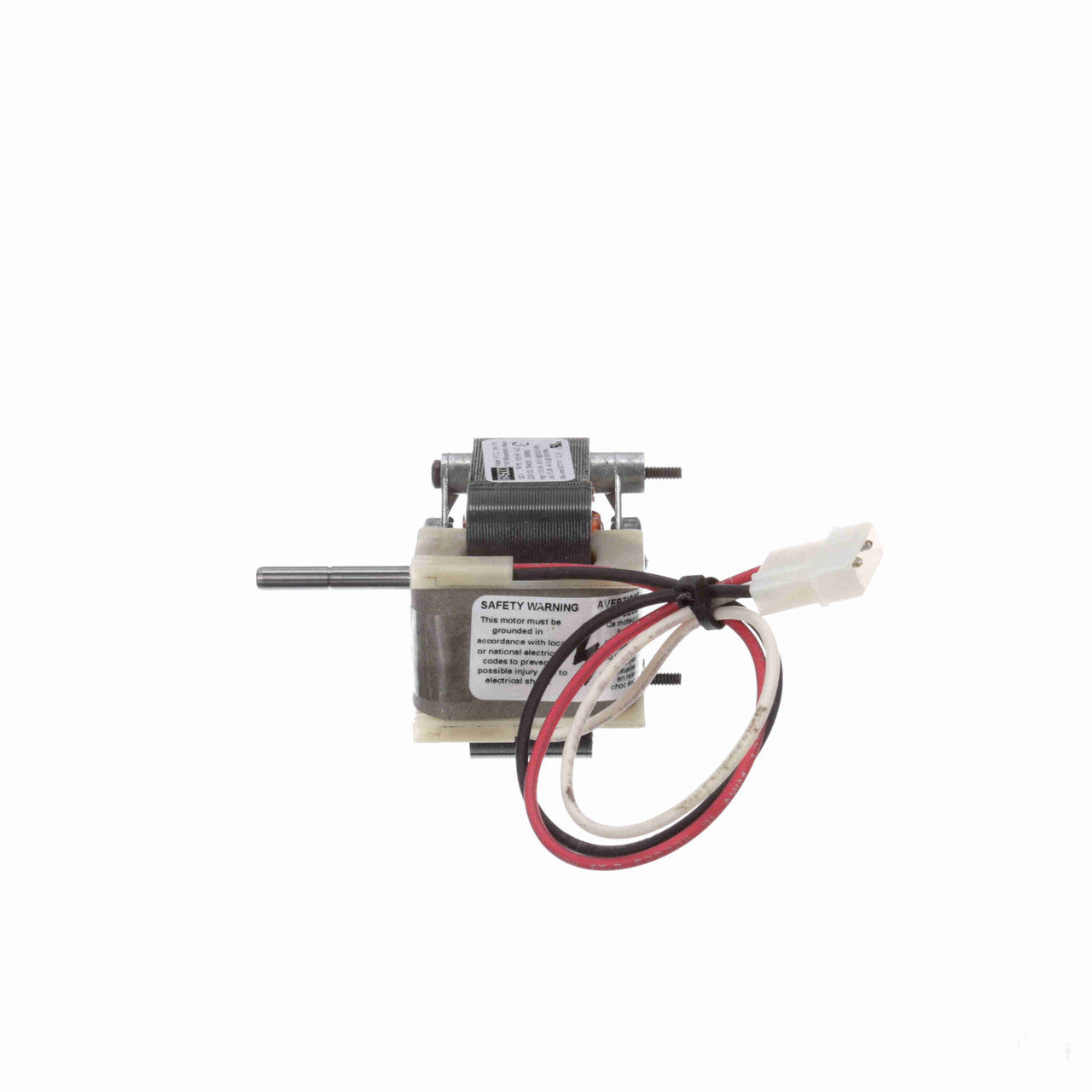

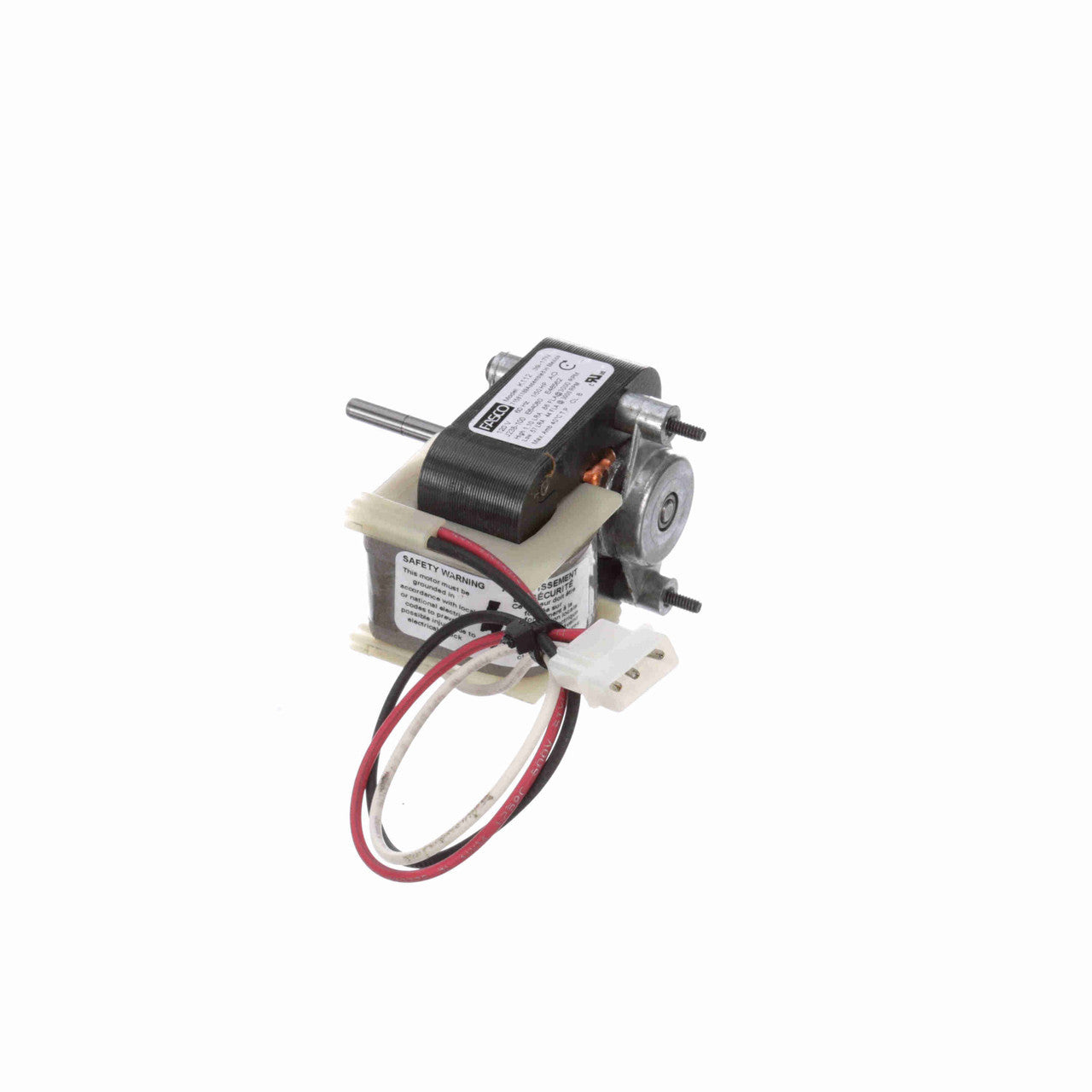

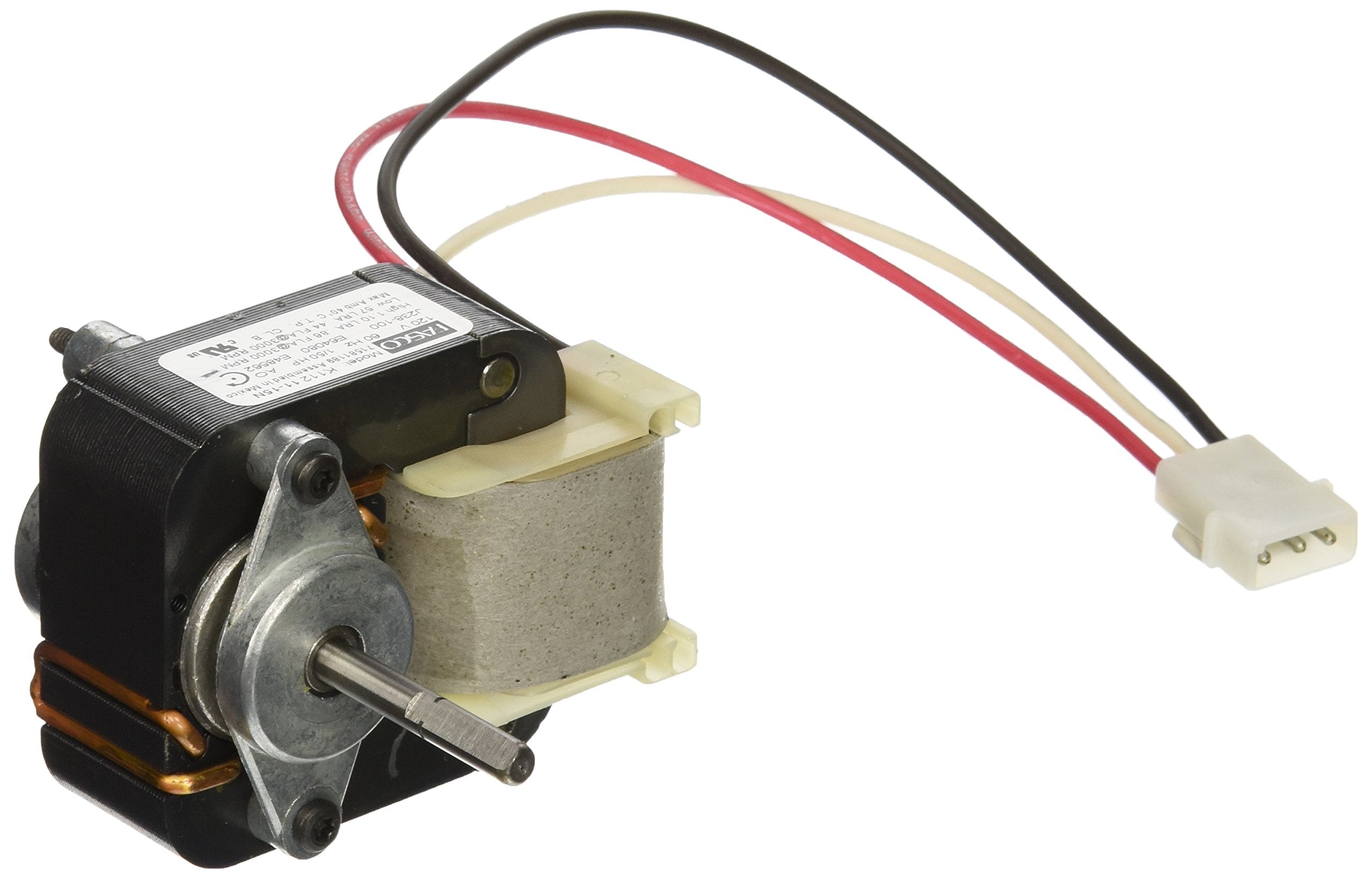

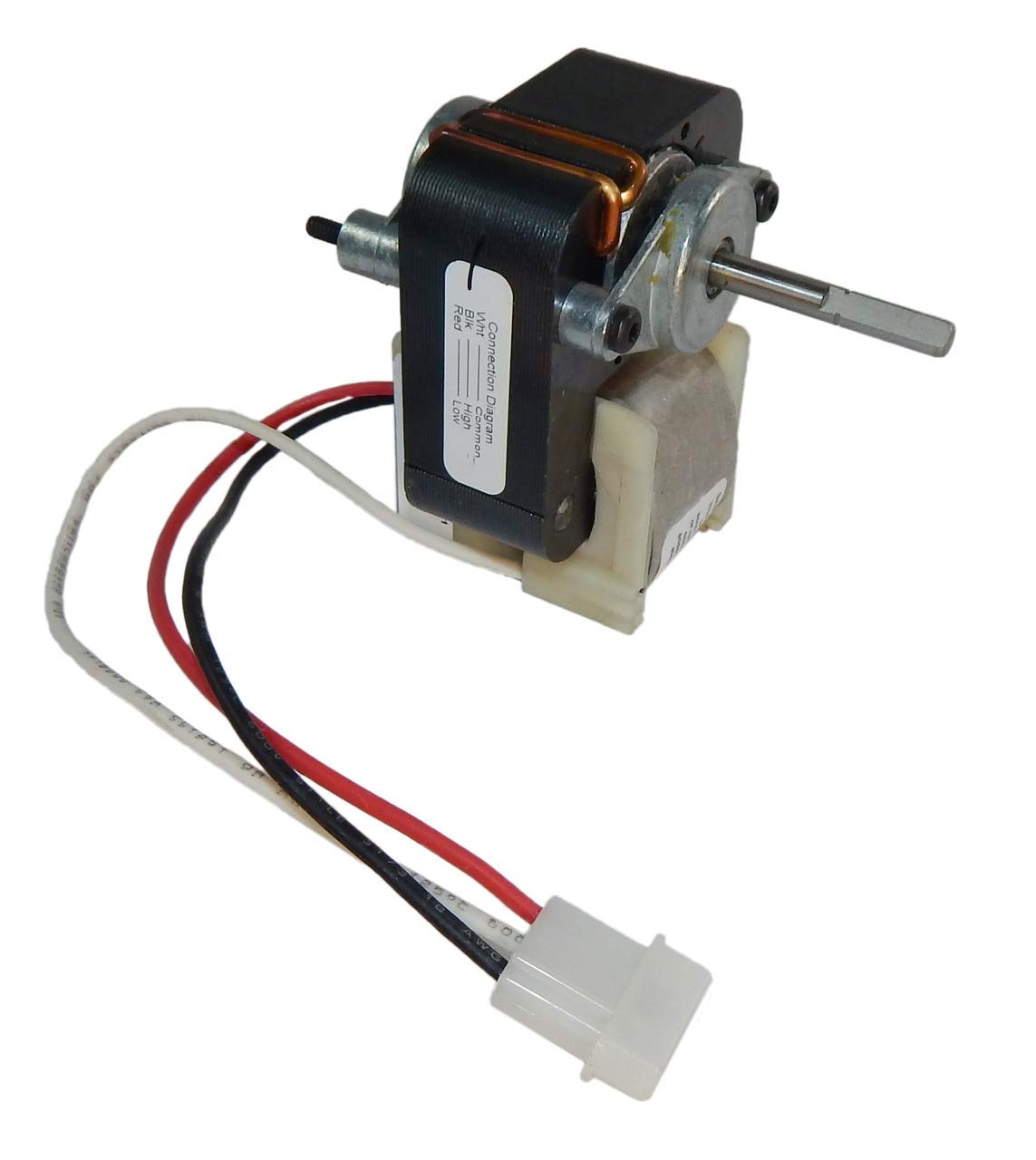

Fasco K112 C-Frame Motor, 1/50 HP, 3000 RPM, 120V, OAO

Product Description

The FASCO K112 is a C-Frame motor operating at 120V, designed for air-over applications. This shaded pole motor delivers 1/50 HP at 3000 RPM with a 0.86/0.44 amp draw. It features a clockwise shaft end rotation and sleeve bearings. Suitable for refrigeration fans, icemakers and vent fans.

• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient

Product Highlights

The FASCO K112 motor is ideal for heating, refrigeration, and ventilation systems.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: K112
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Frame: C-FRAME
• Hertz: 60 Hz
• Phase: 1
• Voltage: 120 Volts
• Rotation: CW Shaft End
• Rated RPM: 3000
• Horsepower: 1/50 HP
• Enclosure Type: Open/Drip Proof
• Full Load Amps: .86/.44 FLA
• Service Factor: 1
• Number of Speeds: 2
• Bearing Drive End: Sleeve/Sleeve
• Mounting Location: Extended Studs
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Shaft Diameter: 0.218 in
• Manufacturers Part Number: K112
• Duty: Air Over
• Manufacturer: Fasco Motors
• Model / MPN: K112
• Product Type: ELECTRIC_MOTOR
• Electrical Type: Shaded Pole
• Amperage: .86/.44
• Shaft Type: Flat & Groove
• KW: 0.01
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 1.44
• Overload: Thermally Protected
• Frequency: 60.0
• Insulation Class: B
• Poles: 2.0
• Motor Power Rating: 0.02
• Starting Type: Across The Line
• Motor Current: .86/.44
• Output HP: 1/50 Hp
• Output KW: 0.01 kW
• Speed: 3000 rpm
• Current: .86/.44 A
• Starting Method: Across The Line
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Overall Length: 3.80 in
• Compatible Equipment Type: Refrigeration Unit, Draft Inducer, Small Blower, Fan
• Part Type: Motor
• Compatible Equipment Type 2: Appliance Motor, Light-Duty Ventilation
• Certification: UL Recognized, CSA N, CE N
• Enclosure: Open Air Over
• Bearing: Sleeve
• Rotation Type: CWSE
• Speeds: 2
• Stack Size (In.): 1.00
• Type: Shaded Pole
