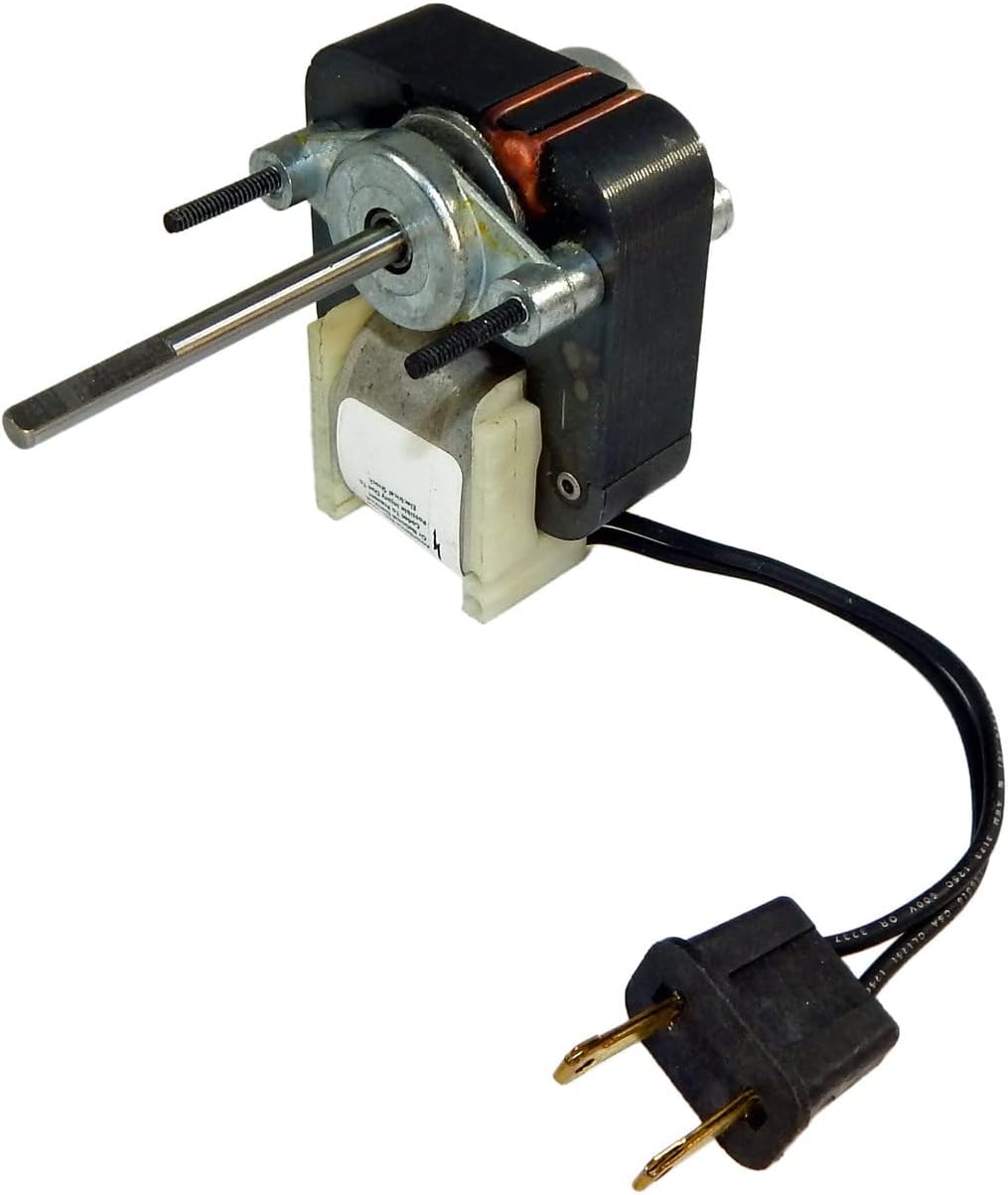

Fasco K109 C Frame Open K Line Shaded Pole OEM Replacement Electric Motor with Sleeve Bearing, 1/75HP, 3000RPM, 115V

Product Description

The Fasco K109 C Frame Open K Line Shaded Pole OEM Replacement Electric Motor is designed for various ventilation applications. It features a power rating of one seventy-five horsepower and operates at three thousand RPM. This motor is suitable for continuous duty, utilizing a thermally protected system for enhanced reliability.

• Voltage: 115 VAC
• Amperage: 0.77 A
• Dimensions: 2.37 inches shaft length

Product Highlights

Engineered for efficient performance in vent fans and similar applications, this motor offers a compact design and straightforward installation.

Product Information

Standard Information

• Brand: Fasco
• MPN: K109

Technical Specifications

• Speed: 3000 RPM
• Horsepower: 1/75 HP
• Voltage: 115 V
• Frequency: 60 Hz
• Insulation Class: B
• Rotation: Counterclockwise Shaft End

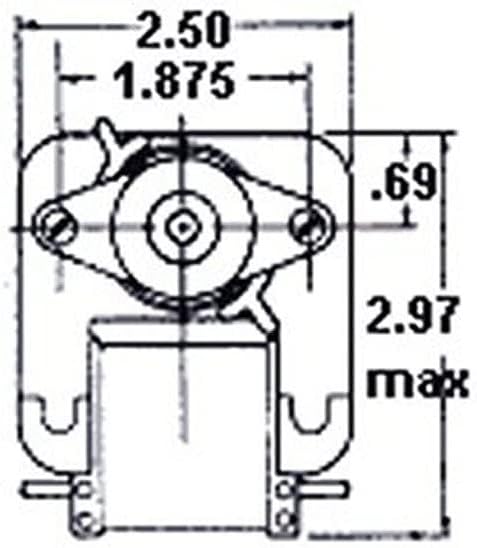

• Dimensions: Shaft diameter is 0.218 inches, and length is 2.37 inches.
• Weight: 1.75 pounds
• Warranty: 1 Year Manufacturer Warranty
