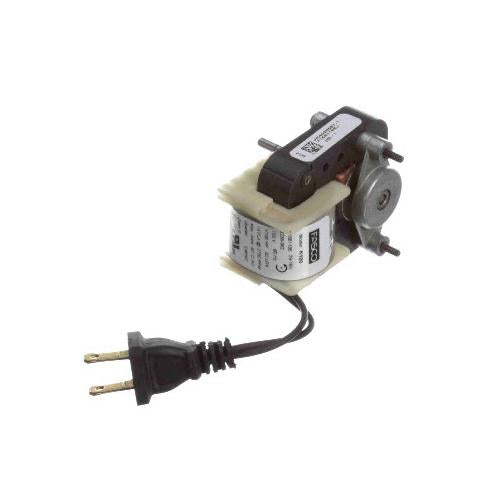

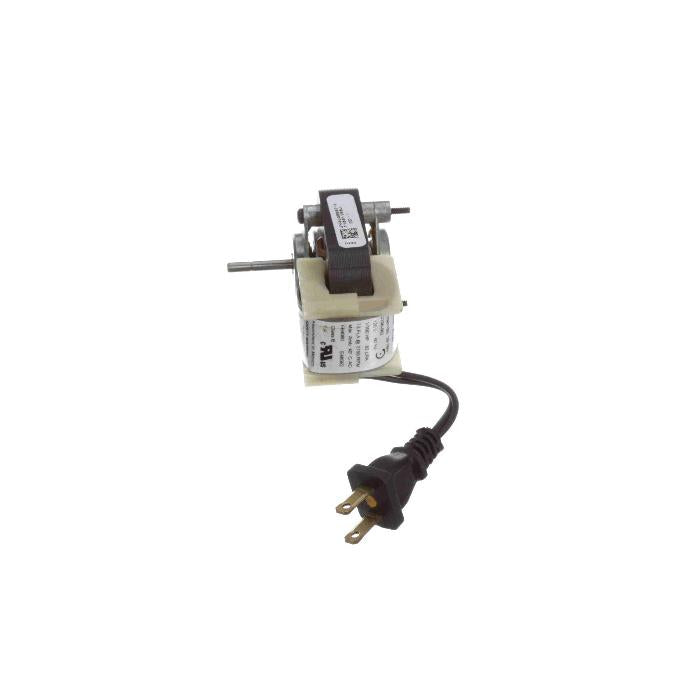

Fasco K100 4-Pole HVAC/R Motor, Open Air Over Enclosure, 1/100 hp, 120 V, 60 Hz, 1 Phase, C Frame, 2750 rpm Speed

Product Description

The Fasco K100 is a 4-pole HVAC/R motor designed for various mechanical applications. It operates at one hundredths of a horsepower with a voltage rating of one hundred twenty volts. This motor runs at a speed of two thousand seven hundred fifty revolutions per minute while maintaining a single-phase operation. The motor features an open air over enclosure suited for cooling environments.

• Power: 1/100 hp
• Speed: 2750 rpm
• Phase: 1

Product Highlights

The Fasco K100 motor is thermally protected, ensuring reliability in various operating temperatures. It is suited for HVAC applications, offering extended stud mounting and sleeve bearings for durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: K100

Technical Specifications

• Type: 4-Pole
• Frame: C
• Voltage Rating: 120 V
• Speed: 2750 rpm
• Amperage Rating: 0.73 A
• Service Factor: 1
• Rotation: CWSE
• Dimensions: 3.07 in L x 2.38 in W x 2.97 in H
• Shaft Size: 0.181 in Dia x 1.05 in L
• Enclosure Type: Open Air Over
• Insulation Class: Class B
• Temperature Rating: 40 deg C
