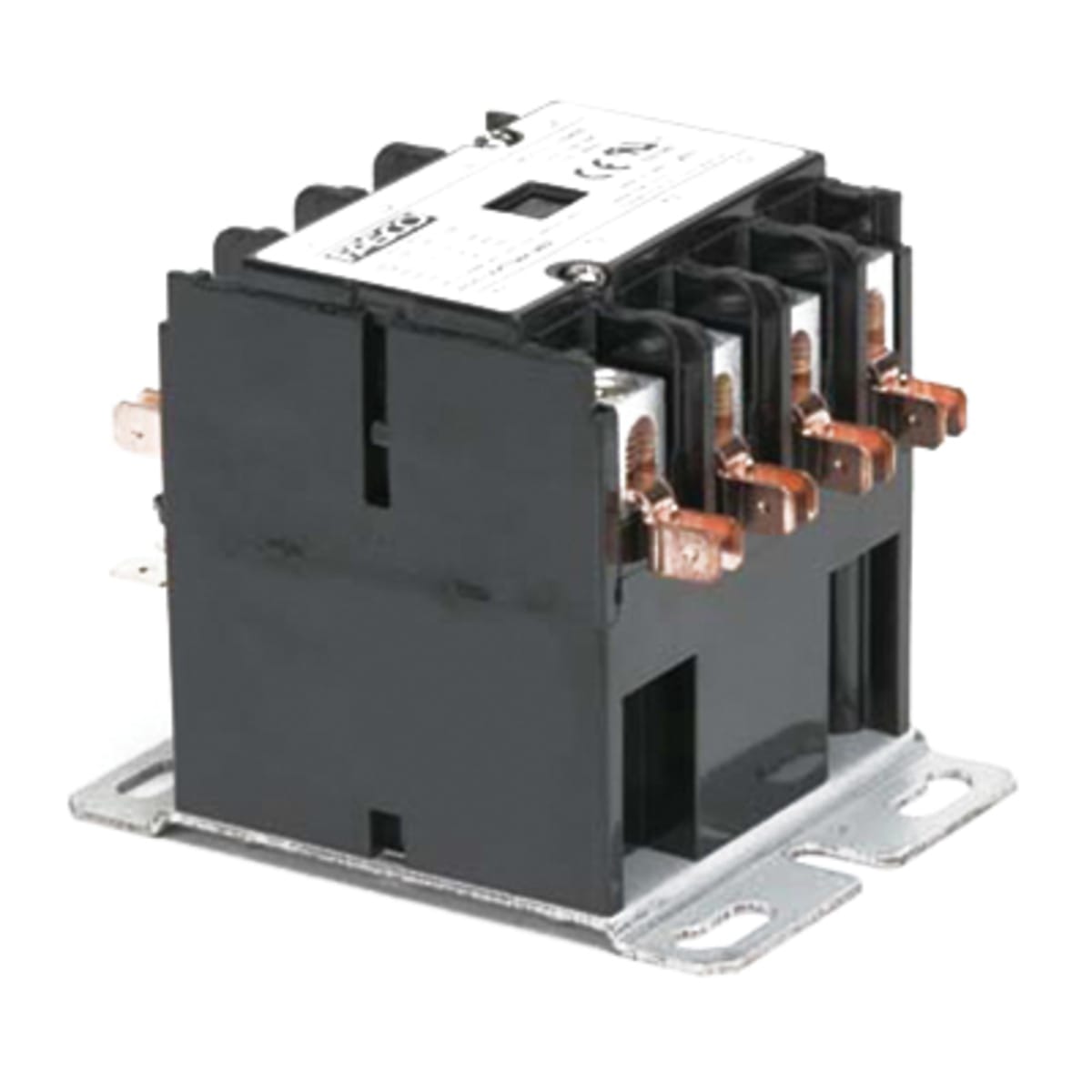

Fasco H440C Definite Purpose Contactor, 4-Pole, 40A, 208/240VAC

Product Description

The FASCO H440C definite purpose contactor is a reliable component for electrical systems. This contactor features a 4-pole configuration, a 40A full load ampere rating, and a 208/240VAC coil voltage. It is suitable for various applications requiring a definite purpose contactor.

• 240/200/160A locked rotor amps
• Amperage Rating: 50A (Resistive)
• Includes mounting plate, quick connect terminals, and lugs

Product Highlights

Durable contactor with a 4-pole configuration, suitable for various electrical applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: H440C
• Country of Origin: United States of America

Technical Specifications

• Type: Definite Purpose
• OEM ID: H440C
• Series: H130A
• HP Rating: 20 HP
• Item Name: Contactor
• Standards: UL Listed, CSA Certified
• Coil Voltage: 240 VAC
• Amperage Rating: 50 A
• Connection Type: Lugs And Quick-Connect Terminal
• Number of Poles: 4
• Full Load Ampere: 40 A
• Auxiliary Contact: H6S Or H7S Switch
• Locked Rotor Amps: 240 / 200 / 160
• Resistive AMPS: 50
• Coil AC Volts: 208/240
• Coil VA Inrush 60 HZ: 60
• Coil VA Sealed 60 HZ: 6
• Coil VA Inrush 50 HZ: 65
• Coil VA Sealed 50 HZ: 7.5
• HP 120 Volts 1 Phase: 3
• HP 240 Volts 1 Phase: 7.5
• HP 240 Volts 3 Phase: 10
• HP 480 Volts 3 Phase: 20
• F/L Inductive Amps: 40
• LRA 240/480/600V: 240/200/160
• Coil VA Inrush @ 60 Hz: 60
• Coil VA Sealed @ 60 Hz: 6
• Coil VA Inrush @ 50 Hz: 65
• Coil VA Sealed @ 50 Hz: 7.5
• HP 120V 1 PH: 3
• HP 240V 1 PH: 7.5
• HP 240V 3 PH: 10
• HP 480V 3 PH: 20
• Use Auxiliary Switch: H6S or H7S
• Agency Approvals: UL, CSA
