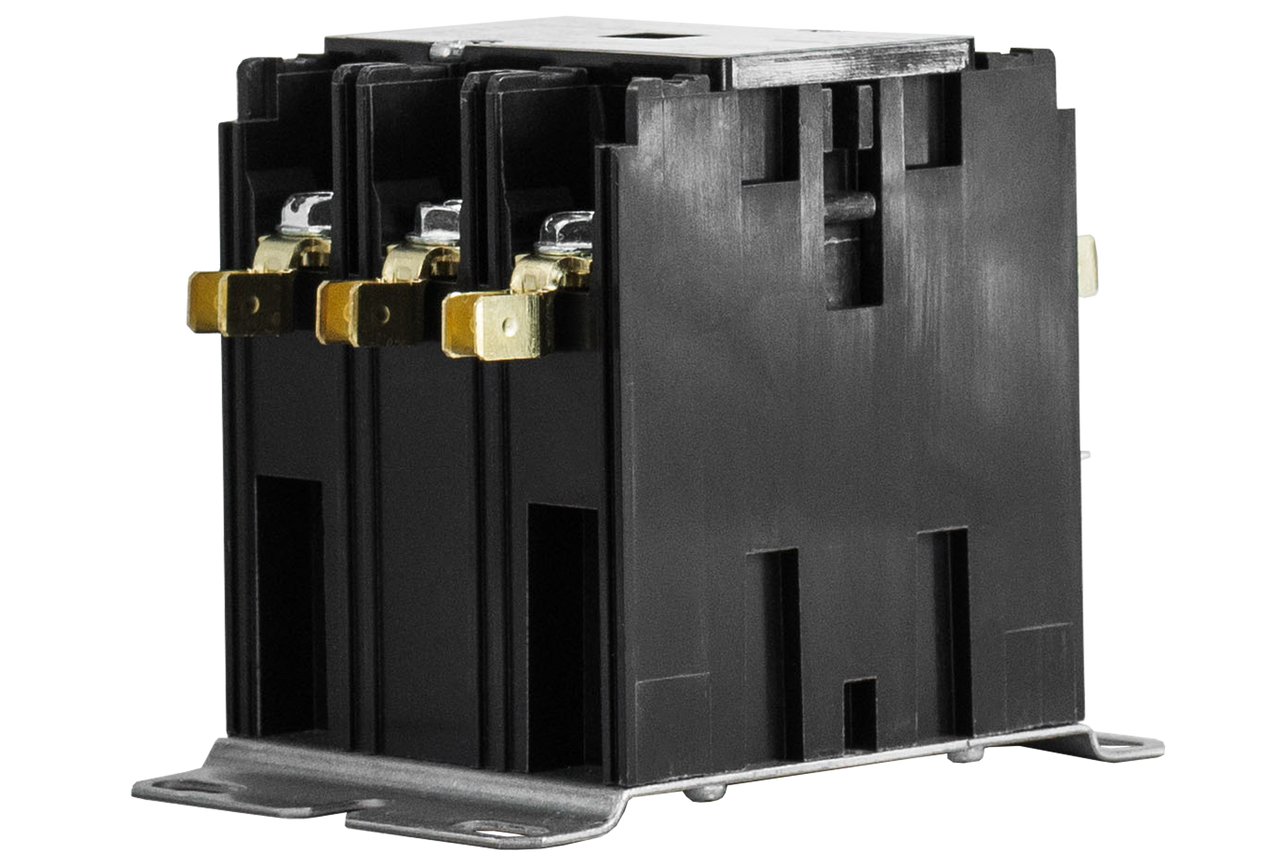

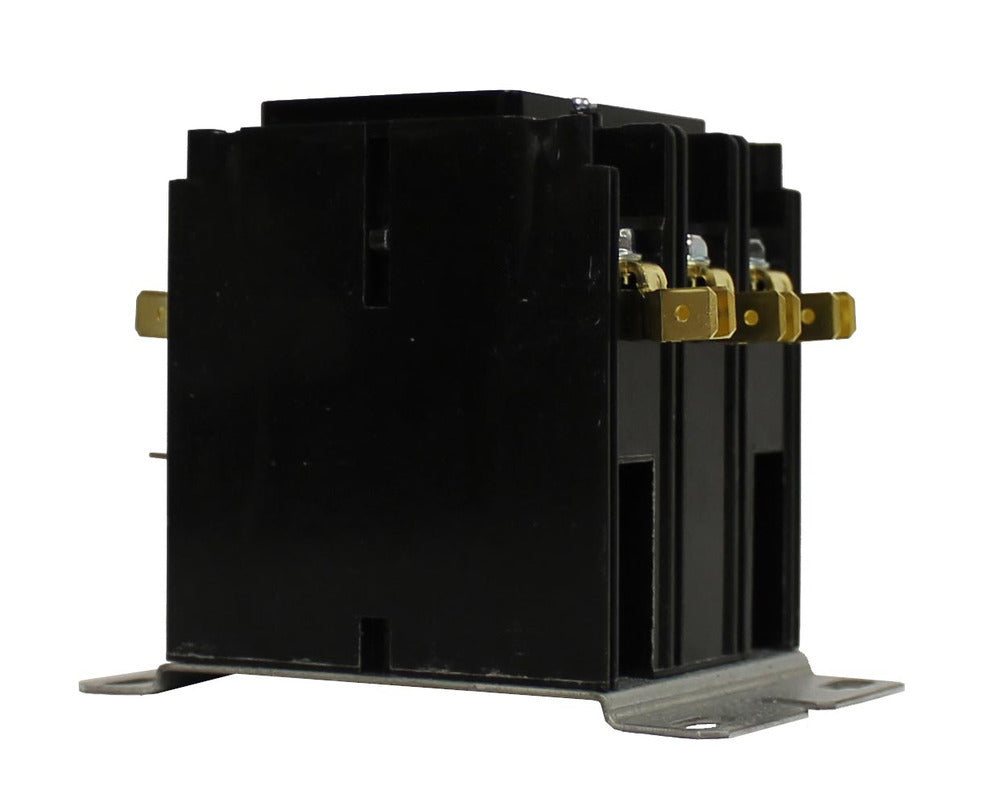

Fasco H330A Contactor 3 Pole 24 Volts

Product Description

The FASCO H330A is a definite purpose contactor with 3 poles and a 24V AC coil. It is designed for various applications requiring reliable switching. The contactor features quick connect terminals and binding head screws for easy installation.

• Definite Purpose Contactor
• Includes Mounting Plate
• Includes Quick Connect Terminals
• Includes Binding Head Screws

Product Highlights

This FASCO contactor is suitable for HVAC systems, motor control, and other electrical applications. It offers a compact design and robust performance.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: H330A
• Country of Origin: United States of America

Technical Specifications

• Number of Poles: 3
• Locked Rotor Amps: 180 / 150 / 120
• Resistive AMPS: 40
• Coil AC Volts: 24
• Coil VA Inrush 60 HZ: 60
• Coil VA Sealed 60 HZ: 6
• Coil VA Inrush 50 HZ: 65
• Coil VA Sealed 50 HZ: 7.5
• HP 120 Volts 1 Phase: 2
• HP 240 Volts 1 Phase: 5
• HP 240 Volts 3 Phase: 10
• HP 480 Volts 3 Phase: 15
• HP 600 Volts 3 Phase: 20
• Current Type: AC
• Current Rating: 40 A
• MPN: H330A
