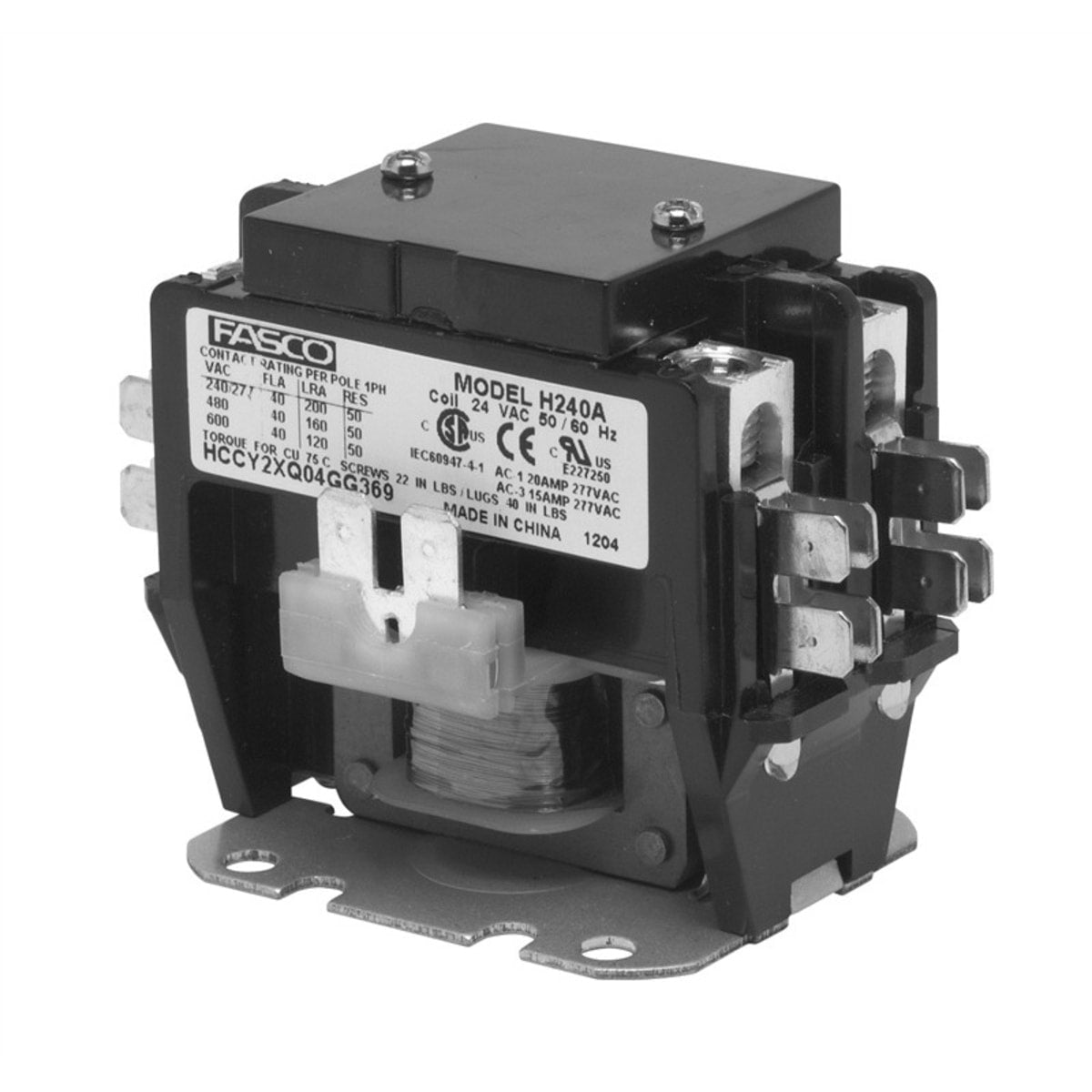

FASCO H240A Definite Purpose Contactor 2-Pole 40A 24VAC

Product Description

The FASCO H240A is a definite purpose contactor designed for reliable operation in industrial applications. This 2-pole contactor features a full load ampere rating of 40A and operates at a coil voltage of 24 VAC. It is UL Listed and CSA Certified, ensuring compliance with safety standards. Ideal for controlling equipment up to 600 VAC as specified in UL bulletin no. 508.

• Rated for locked rotor amps of 240/160/120A.
• Features Class B insulation for coils.
• Connection type includes lugs and quick-connect terminal.

Product Highlights

Designed for use in various industrial control systems, the FASCO H240A offers a robust solution for managing electrical loads effectively.

Product Information

Standard Information

• Type: Definite Purpose
• OEM ID: H240A

Technical Specifications

• HP Rating: 1-Phase: 2 HP at 120V, 3 HP at 240V
• Dimensions: 2.312 Inch W x 2.06 Inch D x 2.635 Inch H
• Net Weight: 0.5 lb
• Coil Voltage: 24 VAC
• Connection Type: Lugs and Quick-Connect Terminal
• Number of Poles: 2
• Full Load Ampere: 40 A
• MPN: H240A
