Product Description

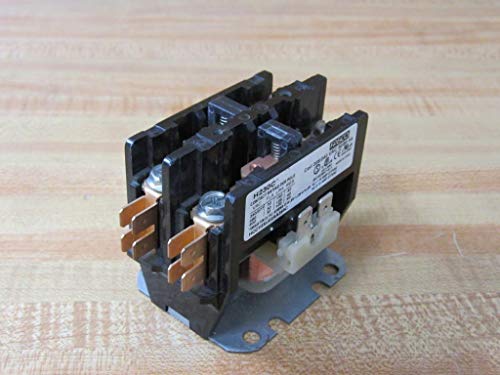

The Fasco H230C is a 2 Pole 30 Amp 240 Coil Voltage Contactor. It is designed for use in various industrial and home improvement applications, providing reliable performance for controlling electric motors and other loads.
- 30 Amp Contactors with 2 Poles
- 240 Volt Coil Voltage
- Includes mounting plate and quick connect terminals
Product Highlights
The Fasco H230C contactor offers dependable operation for switching and controlling electrical loads, making it ideal for HVAC systems, pool pumps, and other motor-driven devices.
Product Information
Standard Information
Technical Specifications
-

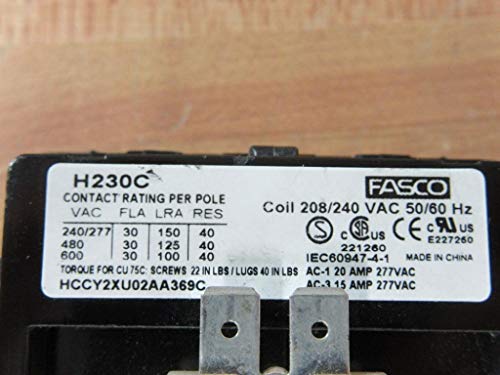

Number of Poles: 2
-
Locked Rotor Amps: 150 / 125 / 100
-
Resistive AMPS: 40
-
Coil AC Volts: 208/240
-
Coil VA Inrush 60 HZ: 30
-
Coil VA Sealed 60 HZ: 6.5
-
Coil VA Inrush 50 HZ: 33
-
Coil VA Sealed 50 HZ: 8
-
HP 120 Volts 1 Phase: 2
-
HP 240 Volts 1 Phase: 3
-
Length x Width x Height: 3.5 x 2 x 2.5 inches
-

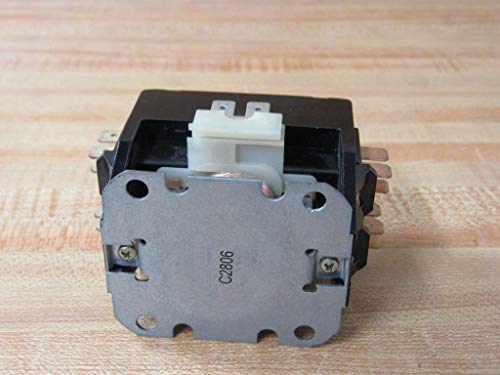

Includes: Mounting plate, quick connect terminals, binding head screws
-
Country of Origin: United States of America
