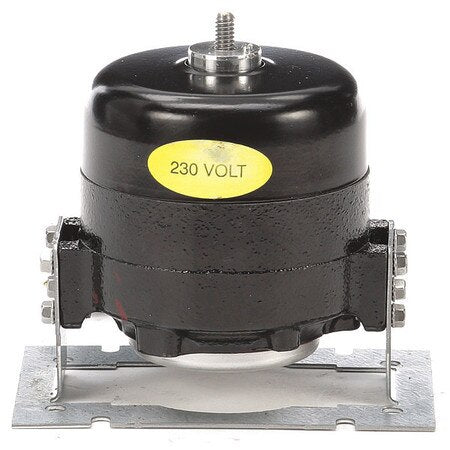

Fasco G5R023 Morrill Motors 5R023 ARKTIC SSC 38 WATT Refrigeration Motor, 1550 RPM, 208-230 Volts, Unit Bearing, TEAO

Features:
ARKTIC SSC - Refrigeration Motor
Unit Bearing
Electronically Commutated (ECM)
Electronically Protected
Totally Enclosed Air Over
Class B Insulation
Bearing - Unit
1/4 x 20 Threaded Shaft
15 Leads with Molded Plug
Mounting Bracket

Specifications:
Output Watts:38 W
Frequency:60 Hz
Voltage:230 V
Current:0.45 A
Speed:1550 rpm
Phase:1
Duty:Continuous Air Over
Insulation Class:B
Frame:UNIT BEARING
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic
Ambient Temperature:55 C
UL:Yes
CSA:Y
CE:N
Electrical Electronically Commutated Motor
Starting Method:Across The Line
Poles:4
Rotation:Counterclockwise Opposite Shaft End
Mounting:Bracket
Motor Orientation:Any
Frame Material:Cast Iron
Shaft 1/4-20 THREAD
Overall Length:4.59 in
Frame Length:4.26 in
Shaft Diameter:0.250 in
Shaft Extension:0.33 in
