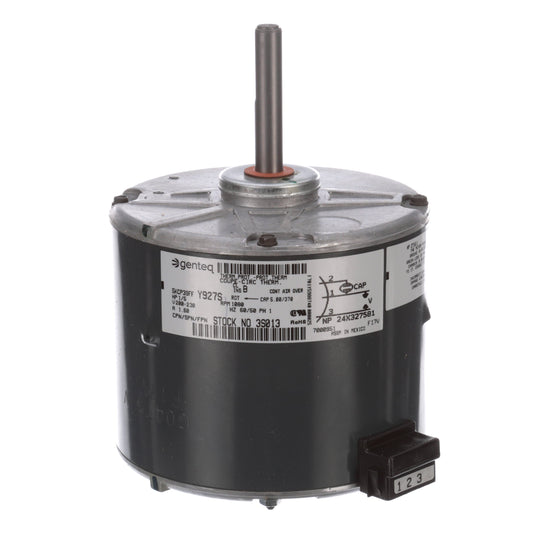

Fasco G3S013 3S013 - 1/5 HP OEM Replacement Motor, 1080 RPM, 200-230 Volts, 48 Frame, TEAO
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Length: 14.12
Width: 6.38
Height: 6.50
Dimension Unit of Measure: IN
Weight: 11.00
Country of Origin: Mexico
Units in Package: 1
Power Rating (In HP): 0.2
Speed (Max): 1080
Voltage: 200-230
Frame Size: 48
Enclosure Type: Totally Enclosed Air Over
Rotation: Counterclockwise
Mounting Type: Lug
Max Ambient: 40C
Shaft Diameter ( In in.): 0.500
C Dim: 8.14
Connection Drawing No: NP24X327581
DE Bearing Type: Sleeve
Duty: Continuous Air Over
Electrical Type: Permanent Split Capacitor
Frame Length: 4.7
Frame Material: Rolled Steel
Frame Type: 48
Frequency: 60
HP: 2 1/5
Number of Poles: 6
Number of speeds: 1
ODE Bearing Type: Sleeve
Outline Drawing No: 5KCP39FFY927S
Service Factor: 1
Shaft Extension: 2.50
Shaft Type: Flat
Speed2: 1080
Starting Type: Thermally Protected
