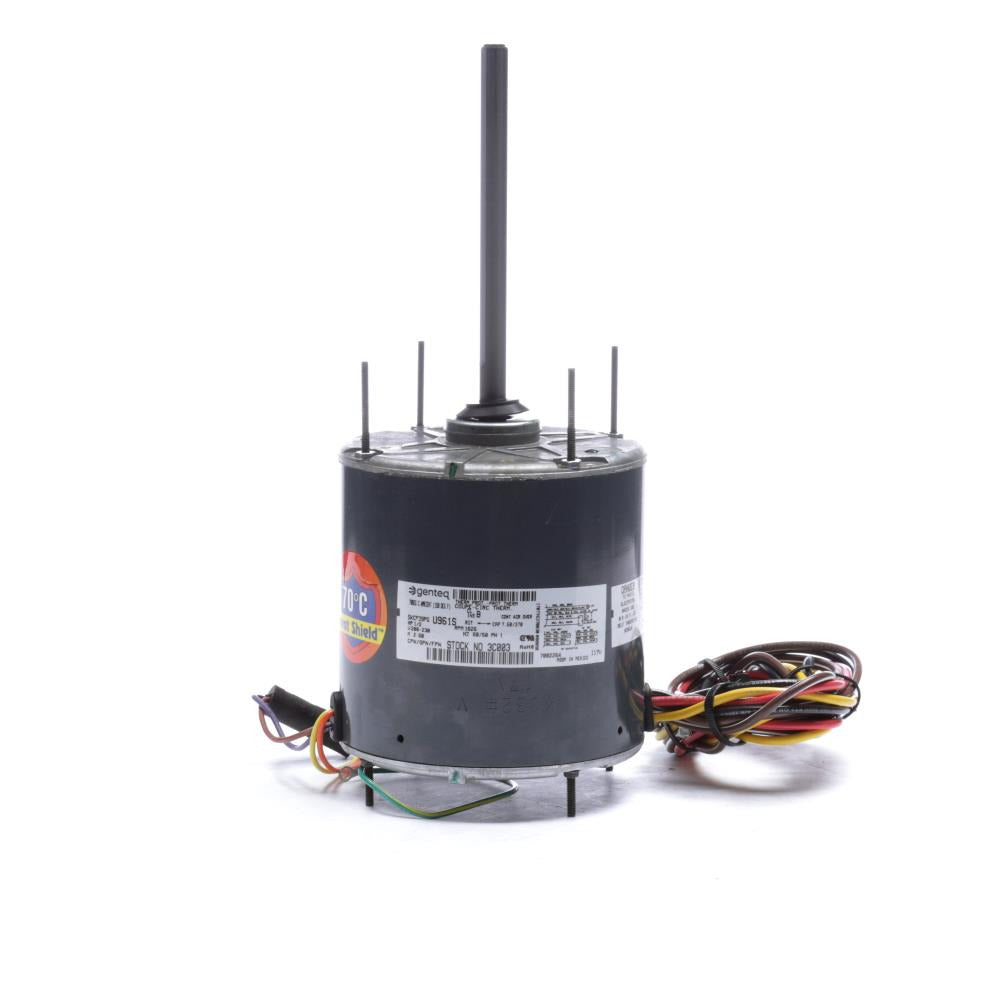

Fasco G3C003 Condenser Fan Motor PSC 1/2 HP 1625 RPM REV

Product Description

The Fasco G3C003 Condenser Fan Motor is designed for HVAC applications where efficiency and reliability are crucial. This motor operates with a Permanent Split Capacitor (PSC) and delivers 1/2 horsepower at 1625 revolutions per minute (RPM). The motor is equipped with a 48Z frame and a 5.6-inch diameter, making it compatible with many cooling units.

• 1625 RPM
• 1/2 HP
• 208-230 Voltage

Product Highlights

This motor is built with a rolled steel enclosure and features automatic overload protection. It mounts easily using a belly band and operates with single-phase power. The motor has a reversible rotation, allowing for versatile installation options.

Product Information

Standard Information

• Electrical Type: PSC
• Horsepower: 1/2 HP
• RPM: 1625
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Belly Band
• Amperage: 2.50
• Shaft Type: Single

Technical Specifications

• MPN: G3C003
• Brand: Fasco
• Type: Motor > HVAC/R Motor > Condenser Fan Motor
• Class: Condenser Fan Motor
• Shaft Diameter: 5.6 inches
• Body Length: Not available
