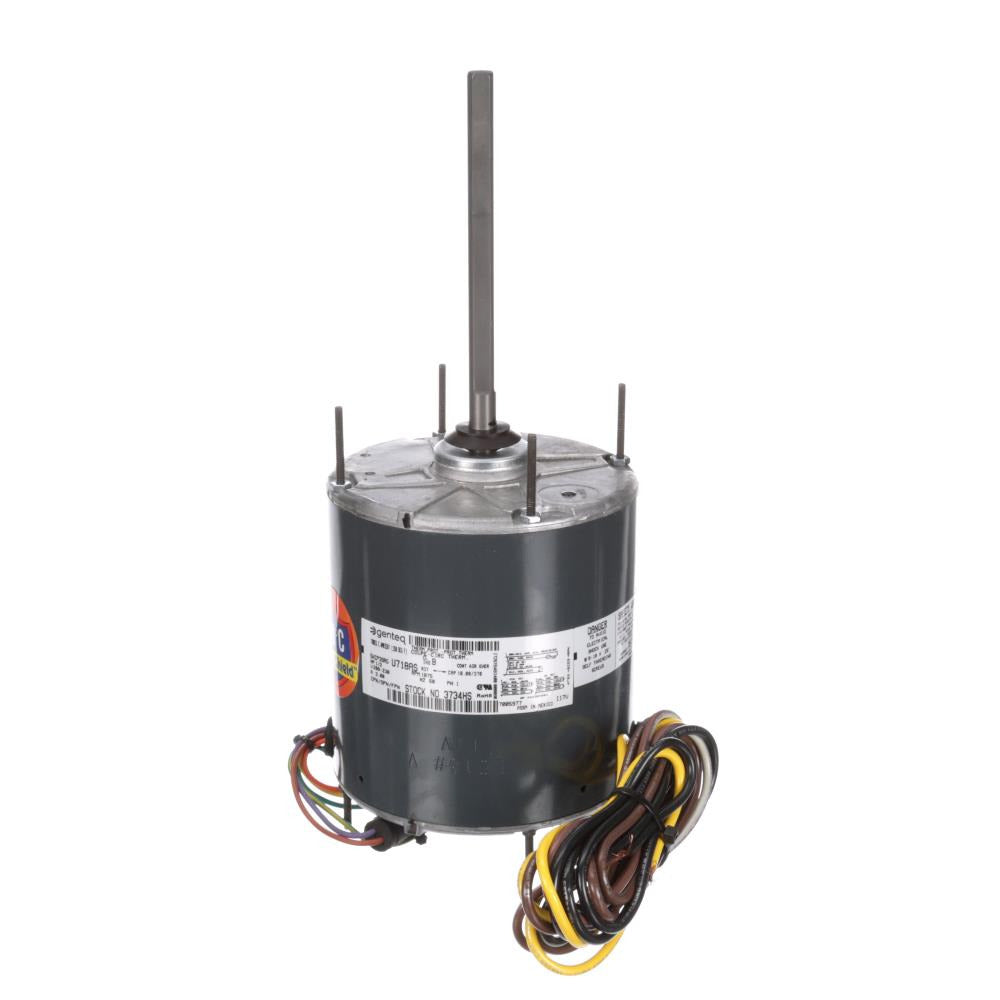

Fasco G3734HS Genteq HEAT SHIELD Condenser Fans Motor, 1/2 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Heat Shield - Condenser Fan Motor
5.6 Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 70C Ambient
Ball Bearing
1/2 Diameter Shaft with Double Flat
48 Leads
Extended Clampbolts, Belly Band, Mounting Holes in Shell
Specifications:
Output HP:1/2 Hp
Output KW:0.37 k
W
Frequency:60 Hz
Voltage:208-230 V
Current:3.00 A
Speed:1075 rpm
Service Factor:1
Phase:1
Duty:Continuous Air Over
Insulation Class:B
Frame:48
Enclosure:Totally Enclosed Air Over
Thermal Protection:Thermally Protected
Ambient Temperature:70 C
UL:Recognized
CSA:Y
CE:N
Number of Speeds:1
Electrical Permanent Split Capacitor
Poles:6
Rotation:Reversible
Mounting:Round Belly Band
Motor Orientation:Any
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Double Flat
Overall Length:12.96 in
Frame Length:5.32 in
Shaft Diameter:0.500 in
Shaft Extension:6.50 in
Thru-bolts Extension:1.25 in
