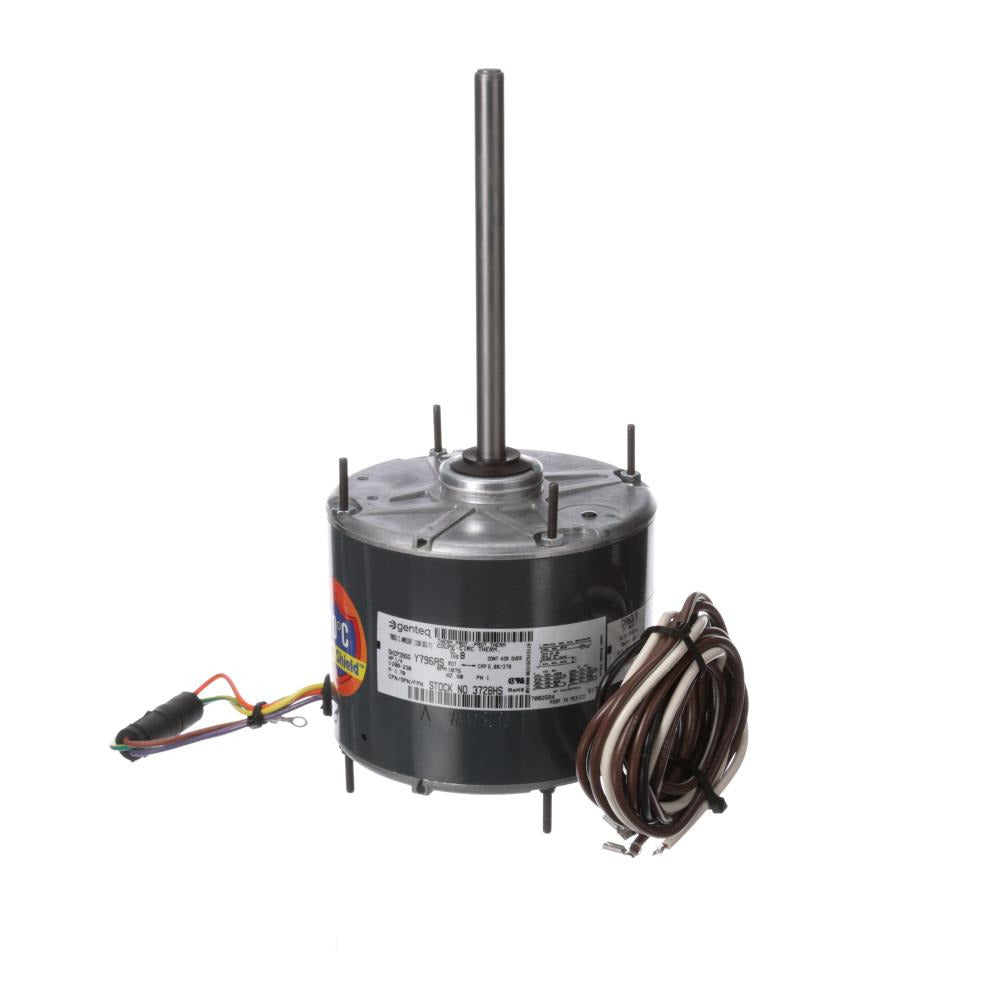

Fasco G3728HS Condenser Fan Motor 1/4 HP 1075 RPM PSC TEAO Revolving Auto Overload Protection

Product Description

The Fasco G3728HS Condenser Fan Motor is a reliable solution for HVAC systems. It features a Permanent Split Capacitor (PSC) electrical type and operates at 1/4 horsepower. Designed for single-phase applications, this motor runs at 1075 RPM within a 48Z frame. The motor boasts a 5.6-inch diameter and is housed in a Totally Enclosed Air Over (TEAO) enclosure. It operates on 208-230 volts and includes an automatic overload protector, ensuring safe and consistent performance.

• Electrical Type: PSC
• Horsepower: 1/4 HP
• Rotation: REV

Product Highlights

This motor is ideal for HVAC professionals looking for high efficiency and reliable performance. With its rolled steel construction and a belly band mounting system, this motor is designed for durability and easy installation.

Product Information

Standard Information

• Brand: Fasco
• MPN: G3728HS

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/4
• RPM: 1075
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Belly Band
• Amperage: 1.7
• Shaft Type: Single
