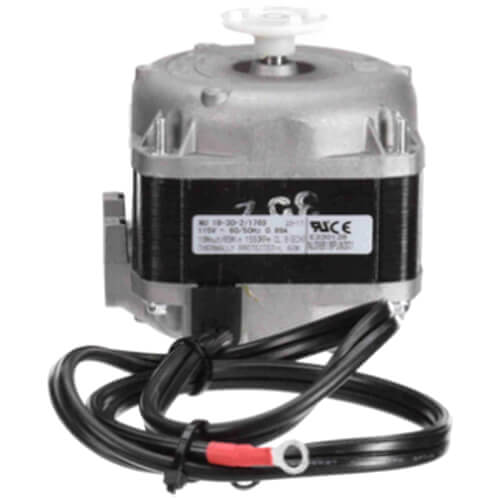

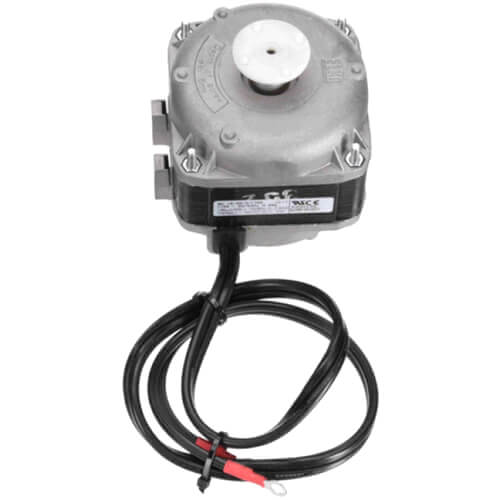

Fasco EC16W115 1-Speed 1550 RPM 1/47 HP CCW Refrigeration Motor 115V

Product Description

The Fasco EC16W115 is a reliable 1-speed refrigeration motor with an operating speed of 1550 RPM. This motor, designed for HVAC applications, offers consistent performance and efficiency.

• 1-speed configuration
• 1550 RPM operating speed
• 1/47 HP power output

Product Highlights

This Fasco motor is designed for refrigeration applications and features a counterclockwise shaft end rotation. It is a shaded pole motor with a totally enclosed air-over design for efficient cooling.

Product Information

Standard Information

• Brand: Fasco
• MPN: EC16W115

Technical Specifications

• RPM: 1550
• Duty: Continuous Air Over
• Type: Shaded Pole
• Poles: 4
• Speeds: 1
• Voltage: 115V
• Amperage: 0.89
• Bearings: Sleeve
• Rotation: Counterclockwise Shaft End (CCWSE)
• Approvals: UL
• Frequency: 60 Hz
• Horse Power: 1/47
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Insulation Class: B
• Motor Orientation: Any
• Frame: Unit Bearing
• Phase: 1
• Shaft Diameter: 0.275 inches
• Application: Refrigeration Fan
• Shaft Length: 0.63 inches
• Motor Application: HVAC-R
• Maximum Ambient Temperature: 40 Degrees C
• Motor Shaft Design: Flat
• Motor Mounting Type: 1 Boss/PE and OPE 3 Holes
• Motor Thermal Protection: Automatic
• Manufacturers Warranty Length: 1 year
• Country of Origin: Switzerland
