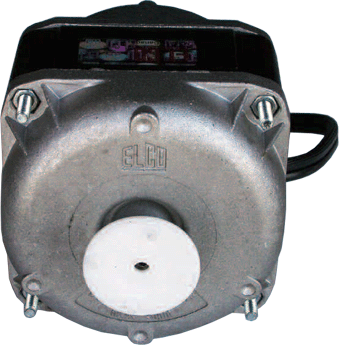

Fasco EC-4W115 ELCO Commercial Refrigeration Motors 1/185 hp 115V TEAO

Product Description

The Fasco EC-4W115 is a reliable and effective refrigeration motor designed for commercial use. It features a power rating of one over one hundred eighty-five horsepower and operates at one hundred fifteen volts. This motor is ideal for various refrigeration applications such as condensing and evaporating units, freezers, and food coolers.

• Suitable for commercial refrigeration applications
• Thermally protected with Class B insulation
• Designed for continuous duty operation

Product Highlights

This motor supports diverse refrigeration needs in various environments and is UL Recognized, CSA Certified, and CE Certified.

Product Information

Standard Information

• Brand: Fasco
• Product Name: ELCO Commercial Refrigeration Motors

Technical Specifications

• Motor Type: Shaded Pole
• Power: 1/185 hp
• Voltage: 115V
• Amperage: 0.36A
• RPM: 1550
• RPM Range: 1201 to 1800
• Enclosure: Totally Enclosed Air Over (TEAO)
• Mount: Stud
• Phase: Single
• Rotation: CCW
• Diameter: 6 inches
• Operating Temperature: -40 to 104 degrees Fahrenheit
