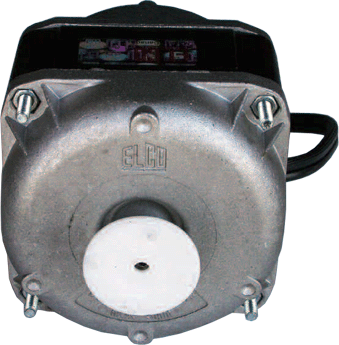

Fasco EC-4W115 ELCO Commercial Refrigeration Motors 1/185 hp 115V 1550/1

Product Description

The Fasco EC-4W115 is a refrigeration motor suitable for various industrial and commercial applications. This motor operates at one over one hundred eighty-five horsepower and is designed to work with refrigeration systems, condensing units, and evaporating units. It supports food and beverage coolers, bottle coolers, and walk-in or reach-in coolers. The motor is capable of continuous operation and is suitable in environments where air cooling is necessary.

• Powerful motor rated at 1/185 horsepower.
• Operates on 115V with an amperage of .36A.
• Designed for refrigeration applications including freezers and coolers.

Product Highlights

This motor is thermally protected, uses Class B insulation, and features an all-angle sleeve bearing. With an operating temperature range from forty degrees below zero to one hundred four degrees Fahrenheit, it is built to handle diverse environments.

Product Information

Standard Information

• Brand: Fasco
• MPN: EC-4W115

Technical Specifications

• Motor Type: Shaded Pole
• Diameter: 6 inches
• Power: 1/185 hp
• Voltage: 115V
• Amperage: 0.36A
• RPM Range: 1201 to 1800
• Enclosure: Totally Enclosed Air Over (TEAO)
• Mount: Stud
• Phase: Single
• OEM: Yes
• Rotation: CCW
• RPM: 1550
• Speed: 1
• Series-Brand: ELCO
• Vendor: Fasco
