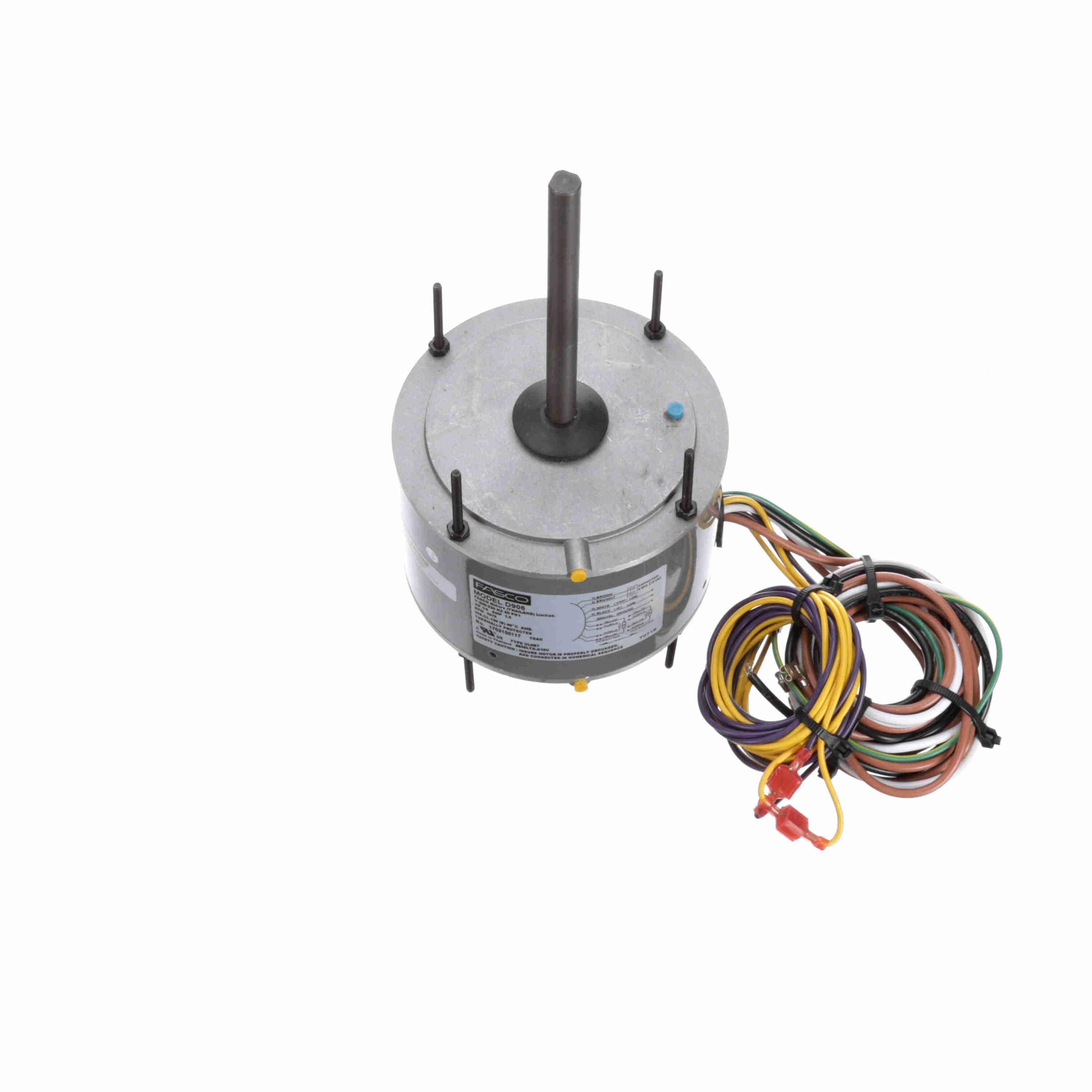

Fasco D906 4-Pole Continuous Duty HVAC/R Motor 1/5 hp 208 to 230 V 60 Hz

Product Description

The Fasco D906 is a 4-pole continuous duty HVAC/R motor. This condenser fan motor is designed for reliability and efficiency in heating, ventilation, and air conditioning applications. With a horsepower rating of one-fifth and a voltage range from 208 to 230 volts, this motor operates at 1075 rpm. It is equipped with a totally enclosed air over enclosure, suitable for various settings.

• Permanent split capacitor motor for improved efficiency
• Reversible rotation to suit different installation needs
• Equipped with sleeve bearings for stable performance

Product Highlights

The Fasco D906 motor is designed to provide dependable service in condenser fan applications. It meets the required electrical standards and features an extended stud mounting option.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer: Regal Beloit

Technical Specifications

• Type: 4-Pole Continuous Duty
• Frame: 48
• Phase: 1 ph
• Speed: 1075 rpm
• Horsepower: 1/5 hp
• Voltage Rating: 208 to 230 V
• Amperage Rating: 1.27 A
• Insulation Class: Class B
• Material: Rolled Steel
• Dimensions: 5.6 in Dia x 11.44 in L
• Shaft Size: 1/2 in Dia x 6 in L
• Rotation: Reversible
