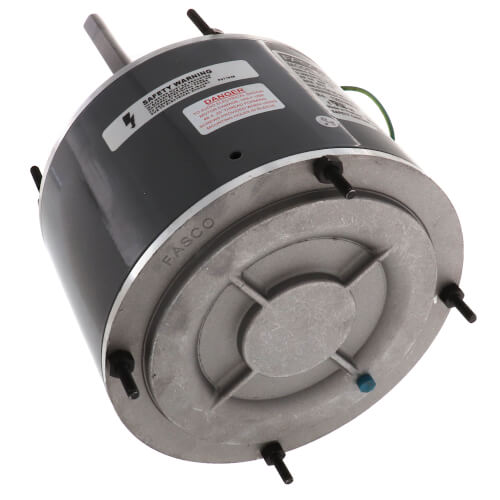

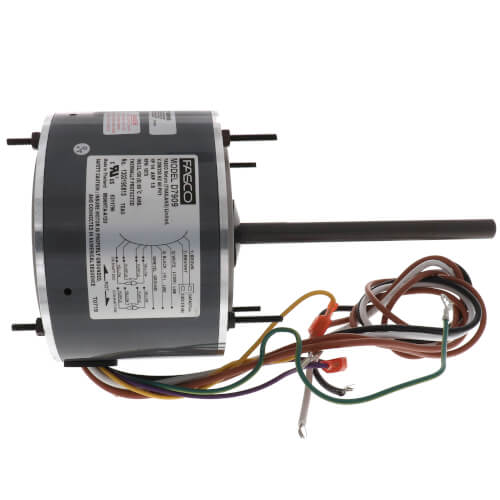

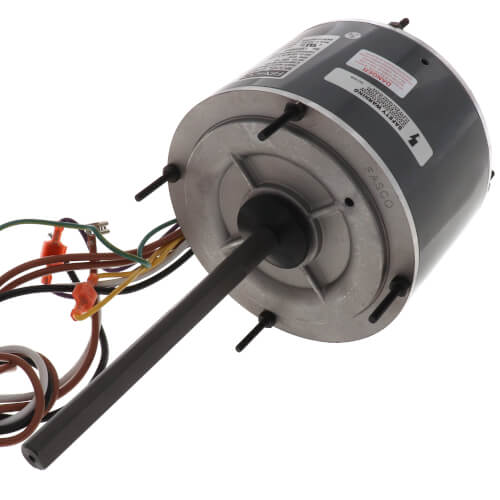

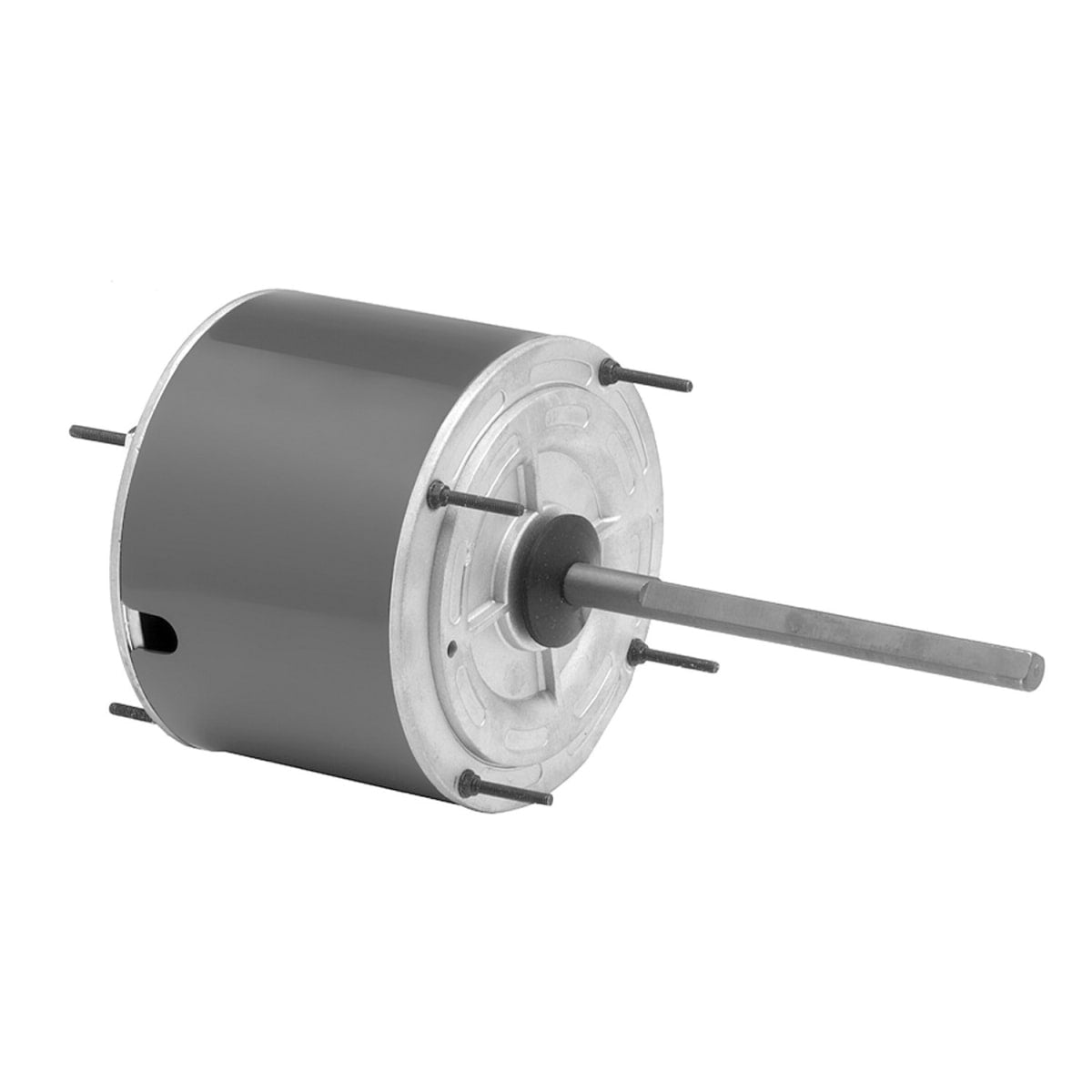

Fasco D7909 5.6 Dia Multi-Purpose Motor 1/3 HP 1075 rpm

Product Description

The Fasco D7909 is a totally enclosed motor with a diameter of five point six inches and a power rating of one third horsepower. This motor operates at a speed of one thousand seventy-five revolutions per minute. It is suited for various HVAC applications where space and energy efficiency are important.

• Permanent split capacitor design
• Reversible operation for versatile use
• Equipped with automatic overload protection

Product Highlights

This motor is designed for durability and efficiency in HVAC systems. It features a sleeve bearing type for smooth operation and is thermally protected to ensure reliability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D7909

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Horsepower: 1/4 HP
• Speed Rating: 1075 RPM
• Voltage: 208/230V
• Amperage: 1.8 A
• Shaft Diameter: 0.5 inches
• Enclosure Type: Totally Enclosed Air Over
• Frame Size: 48Z
• Weight: 11.39 lbs
