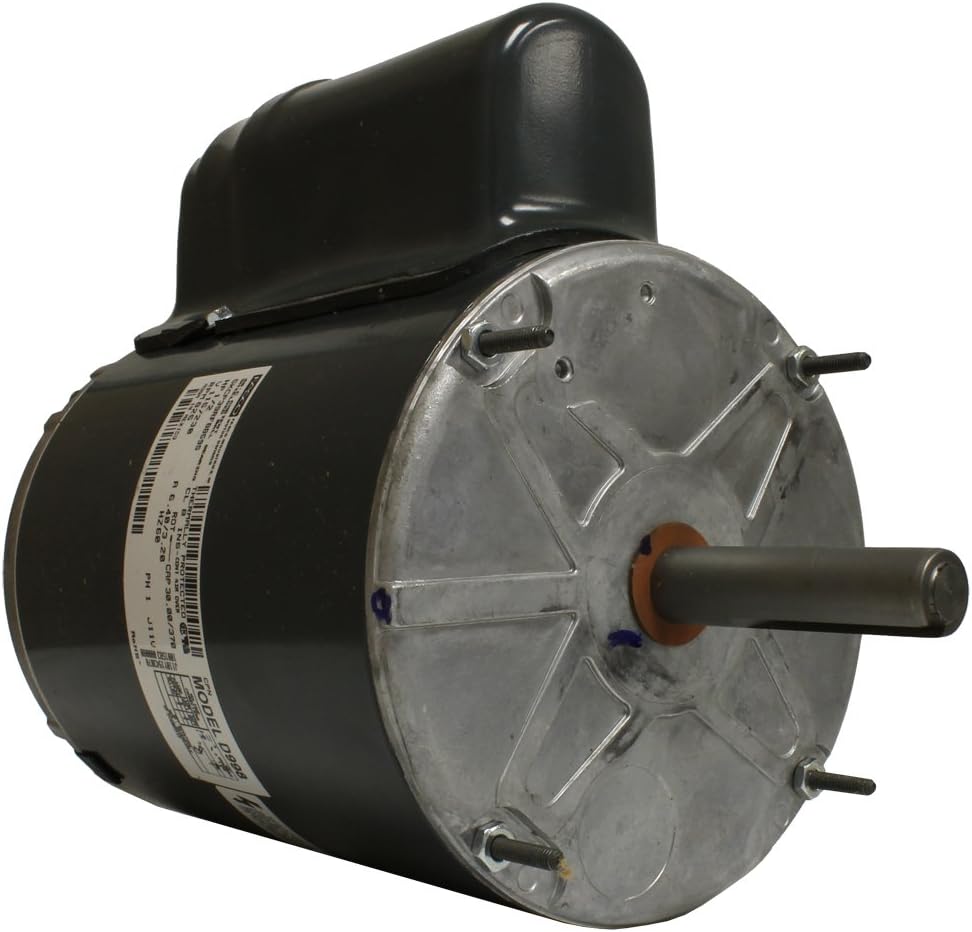

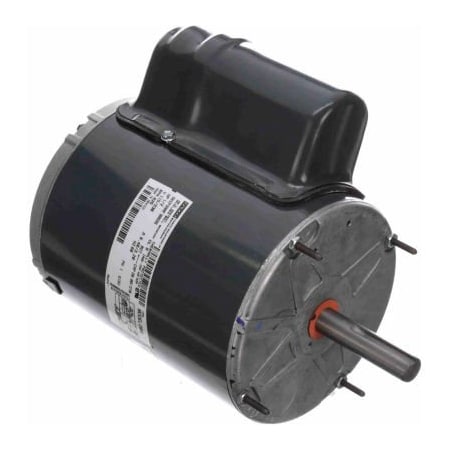

Fasco D998 Pedestal Fan Motor 1/2 HP 825 RPM 115/230 Volts

Product Description

The Fasco D998 Pedestal Fan Motor is designed for reliable performance in various applications, including poultry and hog house fan motors. It features a 5.6-inch frame diameter, delivering 1/2 HP at 825 RPM. This single-phase motor operates on 115/230 volts and has a current rating of 6.40/3.20 amps. It's built with ball bearings and constructed from durable rolled steel.

• 5.6-inch frame diameter
• 1/2 HP motor
• Operates at 825 RPM

Product Highlights

This pedestal fan motor is thermally protected, totally enclosed air over, and features ball bearings for smooth operation. It has a permanent split capacitor and requires a 30 Mfd-370 volts capacitor, which is supplied with the motor.

Product Information

Standard Information

• Brand: Fasco
• MPN: D998
• Product Type: Pedestal Fan Motor
• Voltage: 115/230 Volts

Technical Specifications

• Horsepower: 0.5 HP
• Speed: 825 RPM
• Current: 6.40/3.20 Amps
• Frame Diameter: 5.6 inches
• Shaft Diameter: 0.62 inches
• Shaft Extension: 2.55 inches
• Material: Rolled Steel
• Bearings Type: Ball
• Enclosure: Totally Enclosed Air Over
• Mounting Type: Extended Studs
• Ambient Temperature: 40 degrees C
• Insulation Class: B
• Service Factor: 1
• Single Phase: Yes
• Rotation: Counterclockwise
