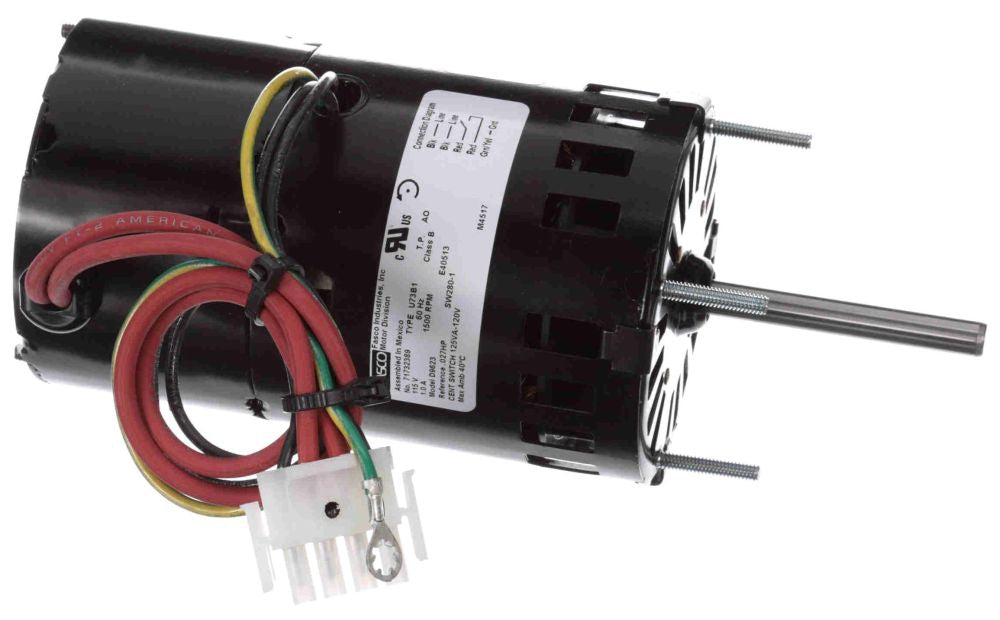

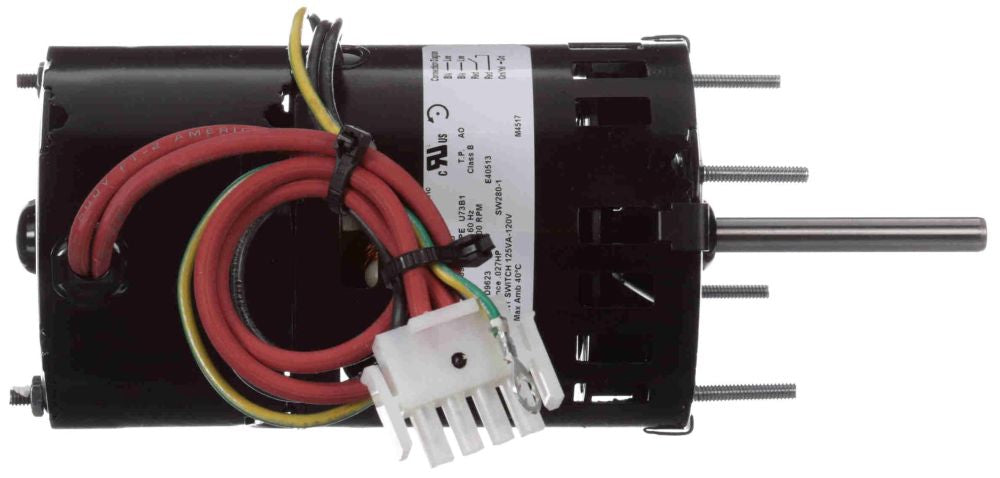

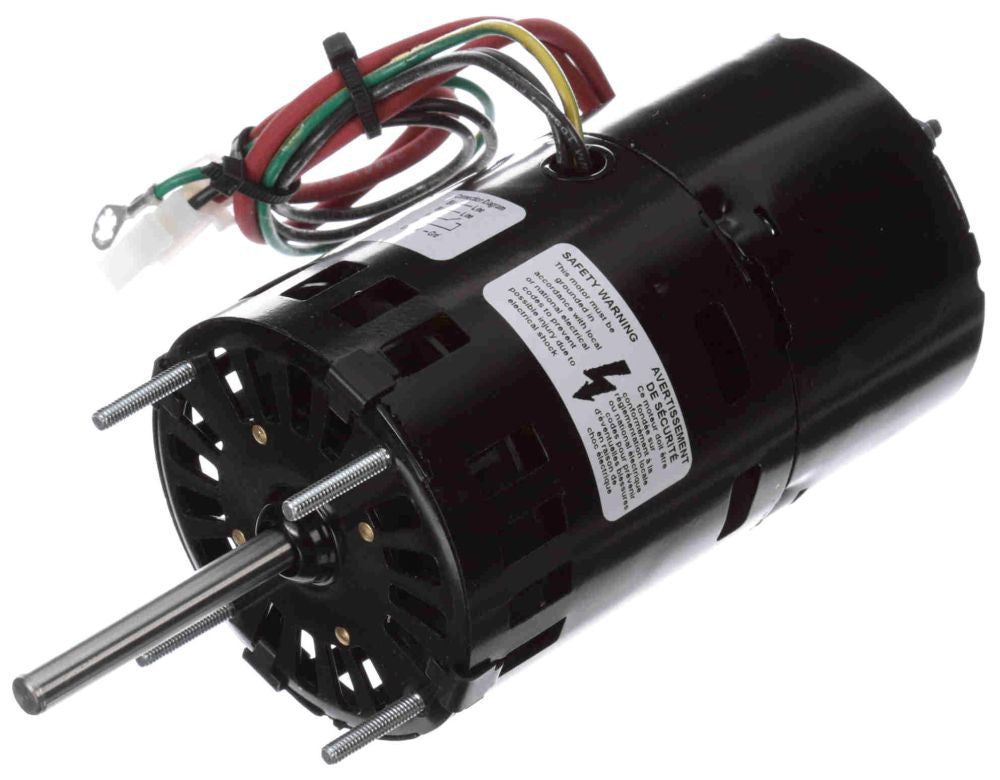

Fasco D9623 OEM Replacement Motor 0.027 HP 115V 1500 RPM

Product Description

The Fasco D9623 OEM Replacement Motor, designed for HVAC applications, features a power rating of 0.027 HP and operates at 115 volts AC with a speed of 1500 RPM. Manufactured by Fasco, it offers reliable performance and is UL recognized.

• 0.027 HP, 115V, 1500 RPM
• Shaded Pole, Sleeve Bearings
• Extended Stud Mounting, Flat Shaft

Product Highlights

Fasco D9623 motor is ideal for HVAC systems, providing stable performance with class B insulation and thermally protected automatic overload.

Product Information

Standard Information

• Brand: Fasco
• MPN: D9623
• UPC: 81850802084
• Country of Origin: Mexico

Technical Specifications

• Power Rating: 0.027 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1 Amp
• Speed Rating: 1500 RPM
• Insulation Class: B
• Frame Material: Steel
• Mounting: Extended Stud
• Weight: 4 pounds
• Approval: UL
• Type: Shaded Pole
• Shaft Type: Flat
• Rotation Type: Counter Clockwise Shaft End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 4
• Size: 3.3 inches Diameter x 8.37 inches Length
• Frame Length: 3.2 inches
• Shaft Size: 0.313 inches Diameter x 2.5 inches Length (Extension)
• Starting Method: Across the Line
• Ambient Temperature Rating: 40 Deg C
• Includes: 10 inch Lead with Terminal Housing
