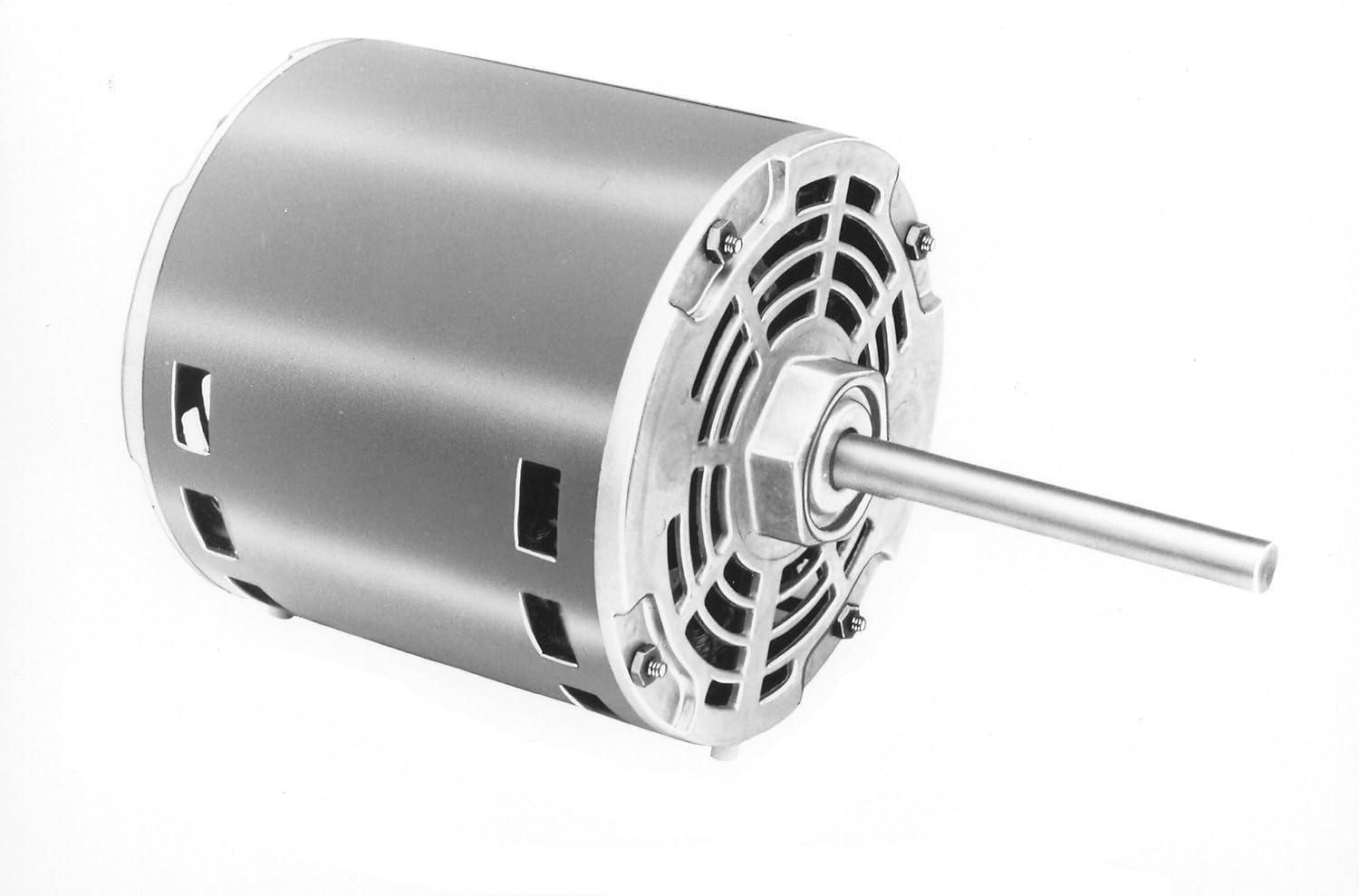

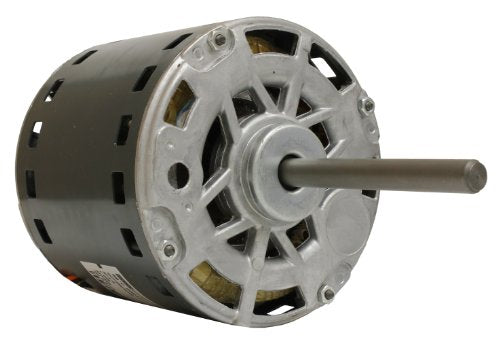

Fasco D920 Condenser Fan Motor 1/2 HP 825 RPM 460-volt D920

Product Description

The Fasco D920 is a condenser fan motor designed for robust performance. This model operates at one half horsepower with a speed of eight hundred twenty-five RPM. It is rated at four hundred sixty volts and consumes two point one amps.

• 5.6-inch frame diameter
• Thermally protected
• Open air over enclosure

Product Highlights

This motor is suitable for many HVAC applications and ensures reliable cooling efficiency.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Type: Permanent Split Capacitor Motor

Technical Specifications

• Motor Power: 0.5 hp
• Speed: 825 RPM
• Voltage: 460 volts
• Amperage: 2.1 amps
• Frame Size: 48Z
• Shaft Diameter: 0.5 inches
• Insulation Class: B
• Operating Temperature: 60 degrees Celsius
• Bearings Type: Sleeve
• Mounting Type: Round
