Fasco D903 5.6 inches Frame Condenser Fan Motor 1/3-1/4HP

Product Description

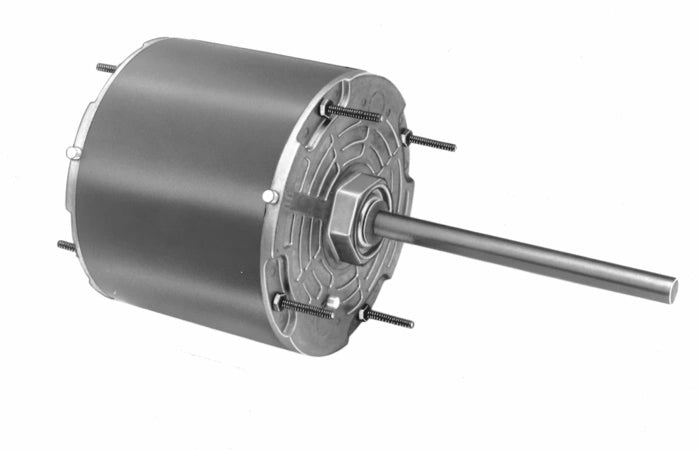

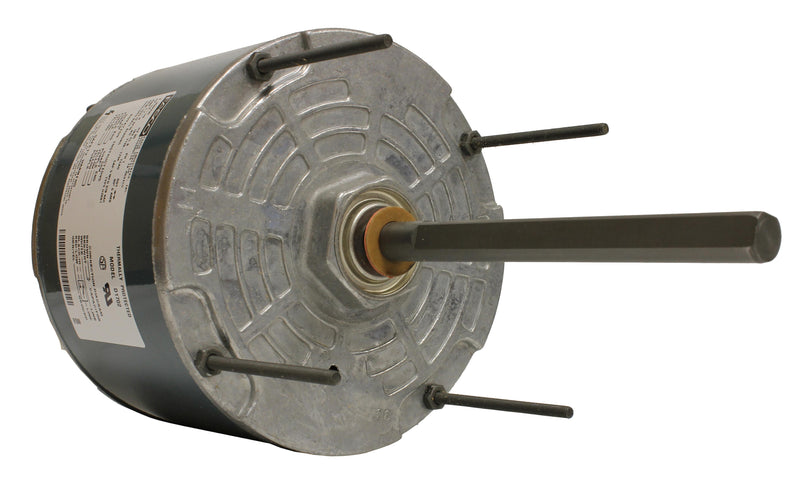

The FASCO D903 5.6" Frame Totally Enclosed Permanent Split Capacitor Condenser Fan Motor features a sleeve bearing and operates at 1/3-1/4HP and 1075rpm. It is designed for 208-230V, 60Hz, and 2.7-1.3 amps, suitable for HVAC and refrigeration applications. This motor is designed with dynamically balanced rotors for reduced vibration and quiet operation.

• Dynamically balanced rotors for reduced vibration
• Quiet operation
• Heavy duty industrial designs

Product Highlights

The FASCO D903 is ideal for use in ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D903

Technical Specifications

• Brand: Fasco
• Manufacturer: Fasco Motors
• Model / MPN: D903
• Product Type: ELECTRIC_MOTOR
• Electrical Type: PSC
• Phase: Single
• Voltage: 208-230V
• Overload Protector: Auto
• Frame: 48
• Enclosure: TEAO
• Material: Rolled Steel
• Horsepower: 1/3 HP
• Rotation: Reversible
• RPM: 1075
• Speed: 2-speed
• Amperage: 2.2-1.3 Amps
• Bearings: Sleeve Bearing
• Shaft Dimensions: 1/2 x 6-1/2 inches
• Capacitor: 7.5 mF 370V
• Temperature Rating: 60°C ambient
• Mounting: All angle mount bearings
• Motor Type: Condenser Motor
• Diameter: 5.6 inches
• Reversible: Yes
• Electrically Reversible: Yes
• Ambient Temperature Rating: 60°C
• Item: Condenser Fan Motor
• Nameplate RPM: 1075
• Hz: 60
• Shaft Number: 1
• Shaft Length: 6.5 inches
• Shaft Diameter: 0.5 inches
• Thermal Protection: Yes
• Cooling: Air Over
