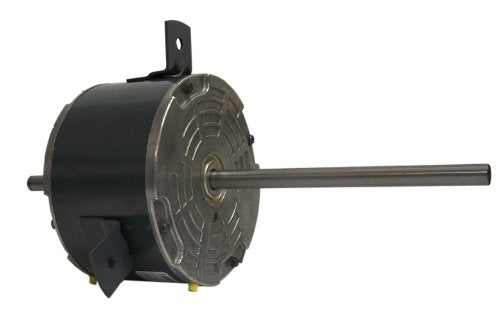

Fasco D864 Motor 1/6-1/8-1/10HP 5.6 inches Frame

Product Description

The FASCO D864 motor is designed for HVAC systems and other applications. This motor features a 5.6" frame and operates at 208-230V. It delivers 1/6-1/8-1/10 HP and runs at 1040 RPM with 1.3-1.2-1.1 Amps. The motor has a clockwise rotation and sleeve bearing.

• 5.6" Frame
• Operates at 208-230V
• 1/6-1/8-1/10 HP

Product Highlights

The FASCO D864 motor is suitable for residential and commercial HVAC systems, providing reliable performance and easy installation.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D864
• Country of Origin: US

Technical Specifications

• MPN: D864
• Product Type: ELECTRIC_MOTOR
• Motor Diameter: 5.6-Inch
• Horsepower: 1/6-1/8-1/10 HP
• Voltage: 208-230 Volts
• RPM: 1040
• Amps: 1.3-1.2-1.1
• Rotation: CW (Clockwise)
• Bearing Type: Sleeve Bearing
• Electrical Type: PSC
• Enclosure: TEAO
• HP: 1/6
• Material: Rolled Steel
• Overload: Auto
• Phase: Single
• Shaft Type: Double
• Type: Permanent Split Capacitor
• Speeds: 3
• Shaft Dimension: 2 1/8 X 1/2 X 7 1/4"
• "A" Dimension (inches): 3 3/4"
